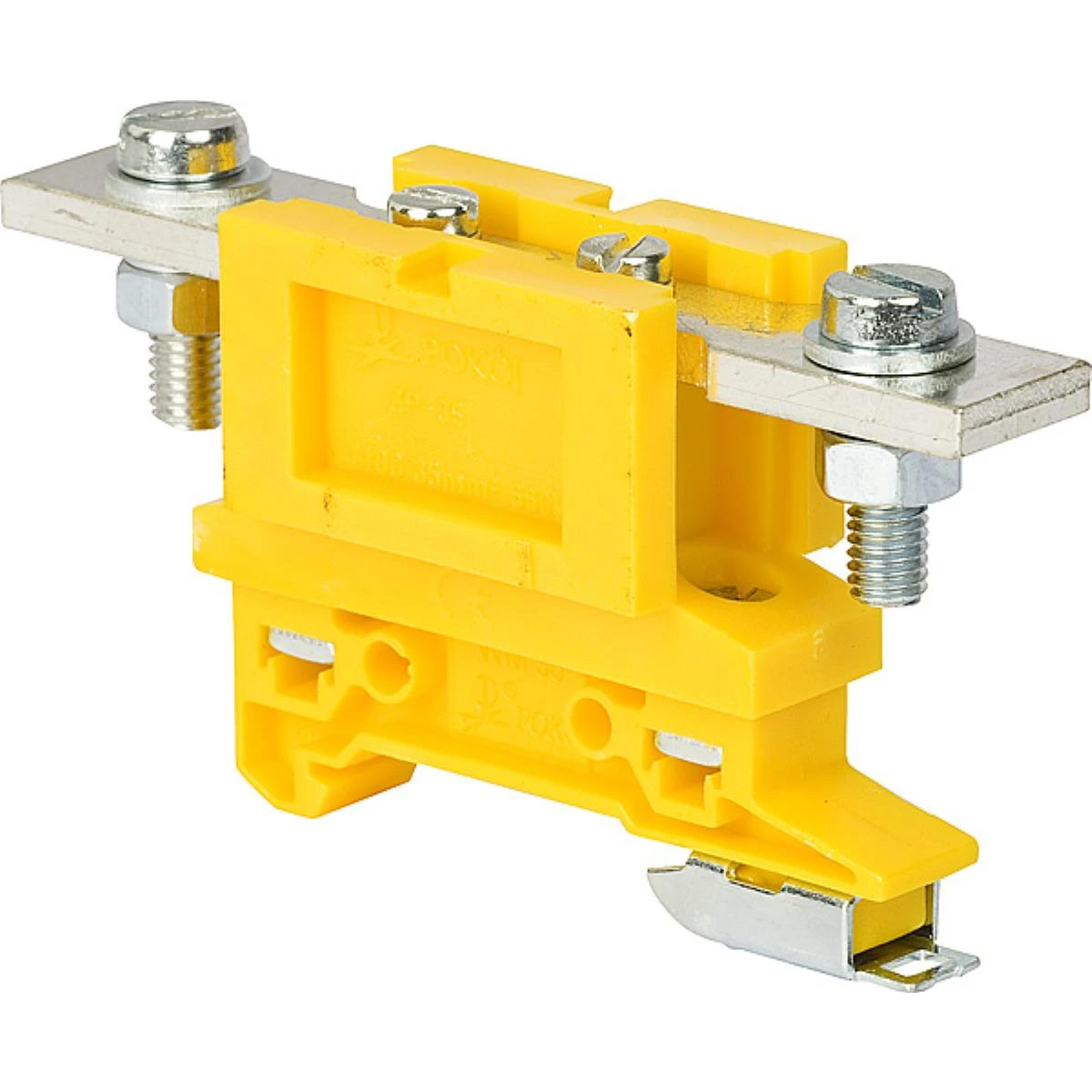

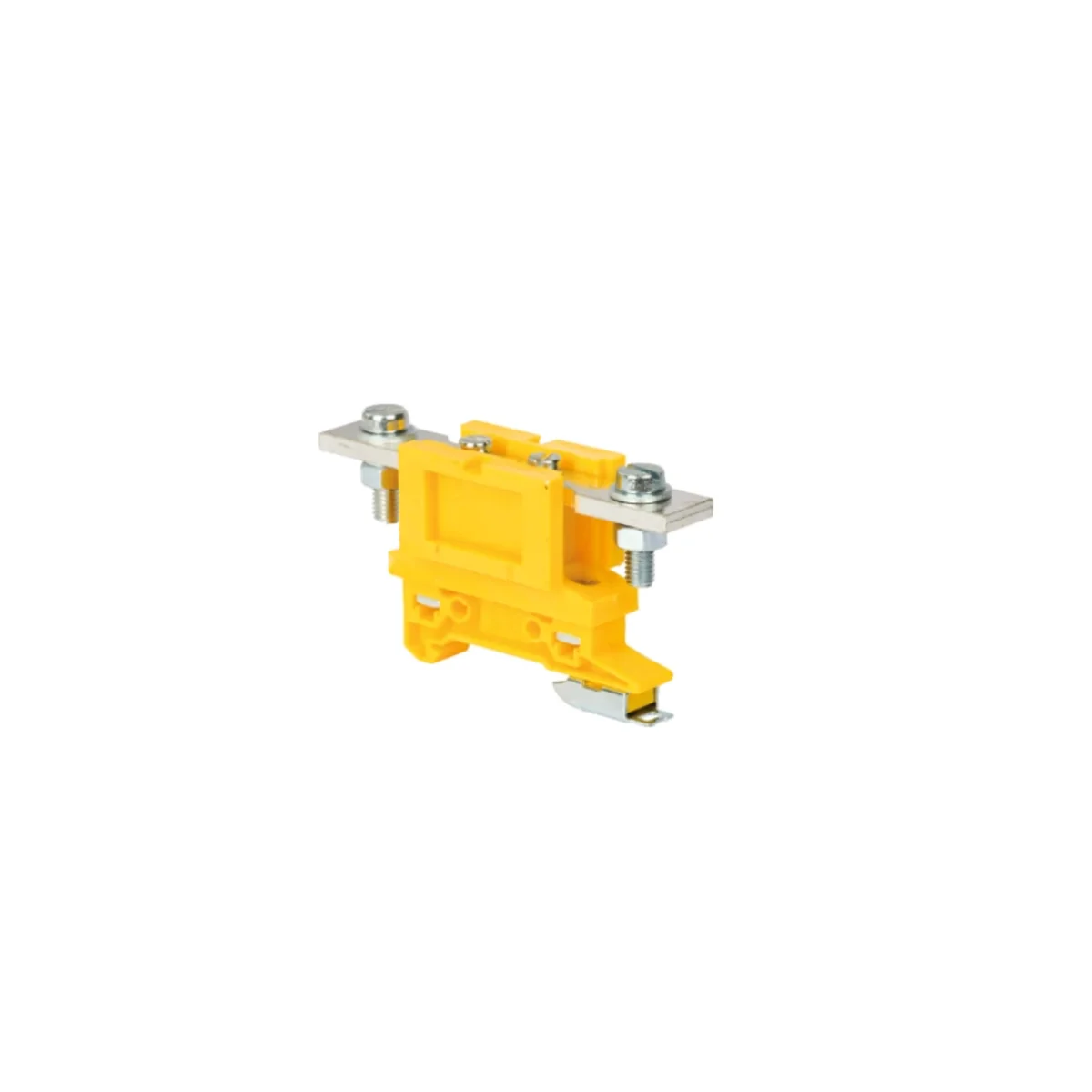

Connector ZPK-K35/TS35 yellow A11-1331
local index:
TES138POKO
Catalog No:
A11-1331
EAN code:
5902626101978
Price:
7,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Joint type ZP-35 is suitable for connecting copper conductors of single-wire and multi-wire cables. Can be mounted on a strip TS35. Type of clamps used to connect wires: two clamps for conductors with cable ends (type K-K). Type of cable terminals - cable terminals for terminating wires with a nominal cross-section of 35mm2.
Technical data
-
ColorYellow
-
Rated voltage [V]660
-
PKWIU27.12.40.0
-
Maximum ambient temperature [°C]100
-
Continuous current [A]125
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0 ... 35 mm²
-
Connectable conductor cross section solid-core0 ... 35 mm²
-
Rated current In125 A
-
Type of electrical connection 1Other
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu60 mm
-
Explosion-tested version 'Ex e'No
-
ColourYellow
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 35 mm²
-
Connectable conductor cross section multi-wired0 ... 35 mm²
-
Rated voltage690 V
-
Type of electrical connection 2Other
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-

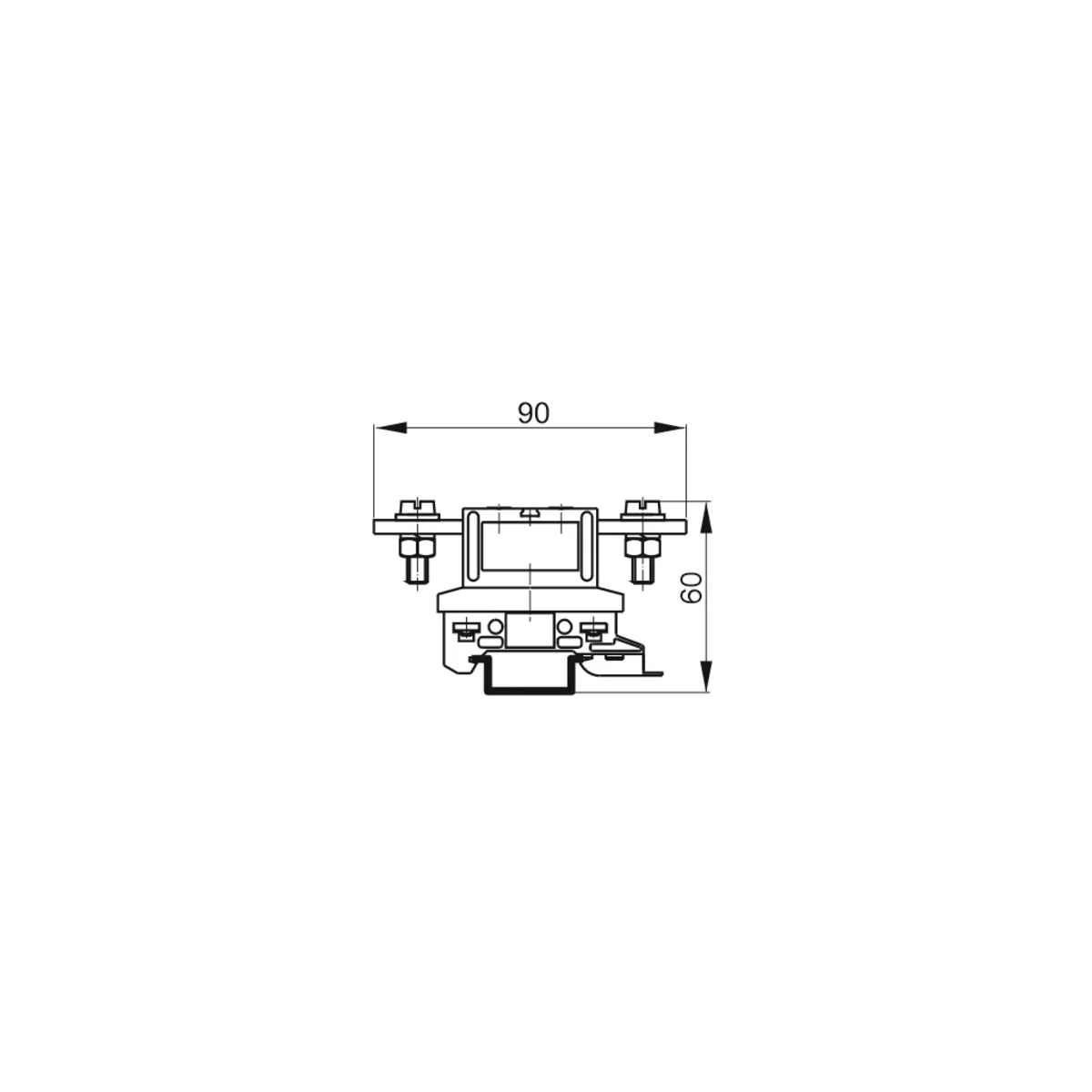

Width/grid dimension26 mm
-
Length90 mm
-
Closing plate requiredNo
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
