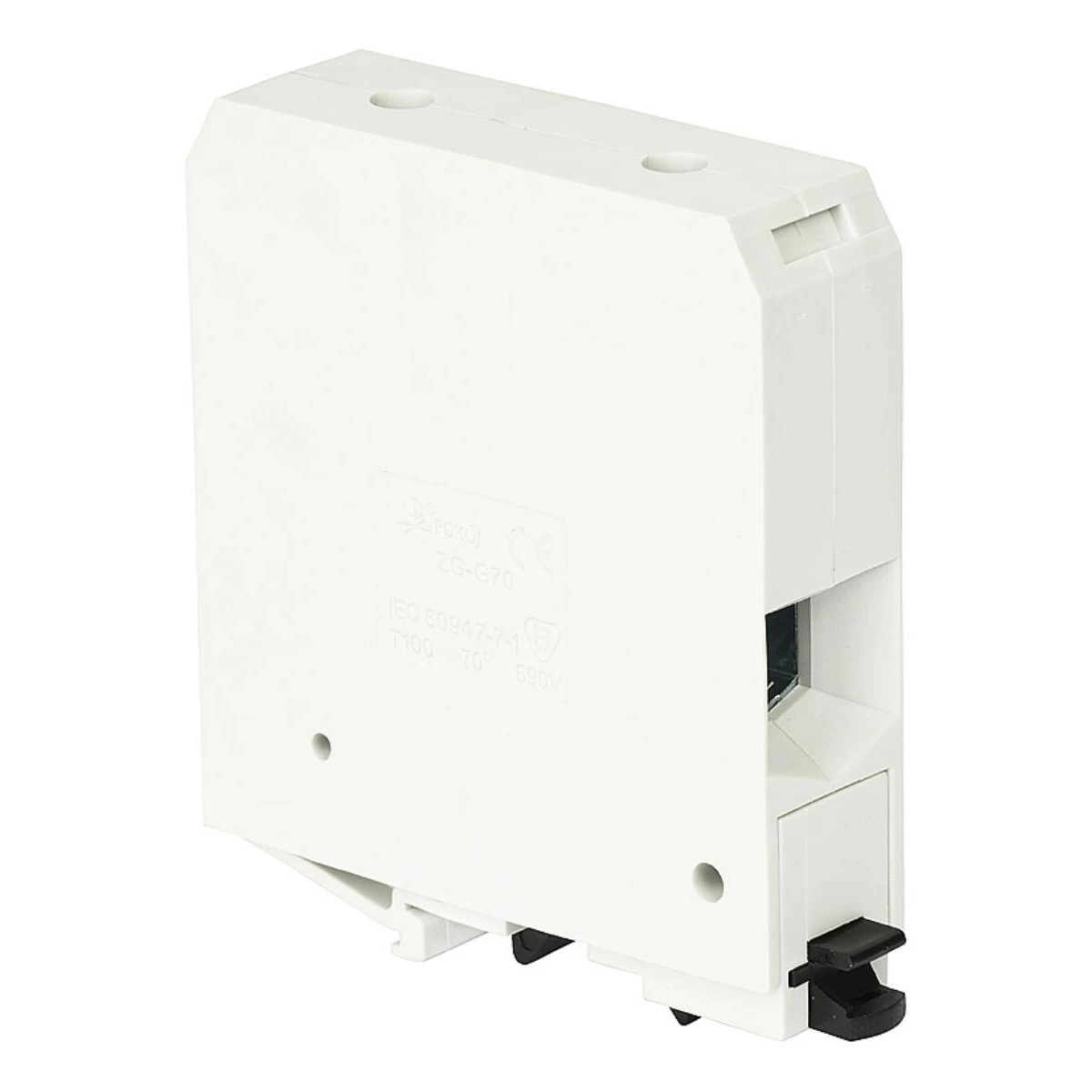

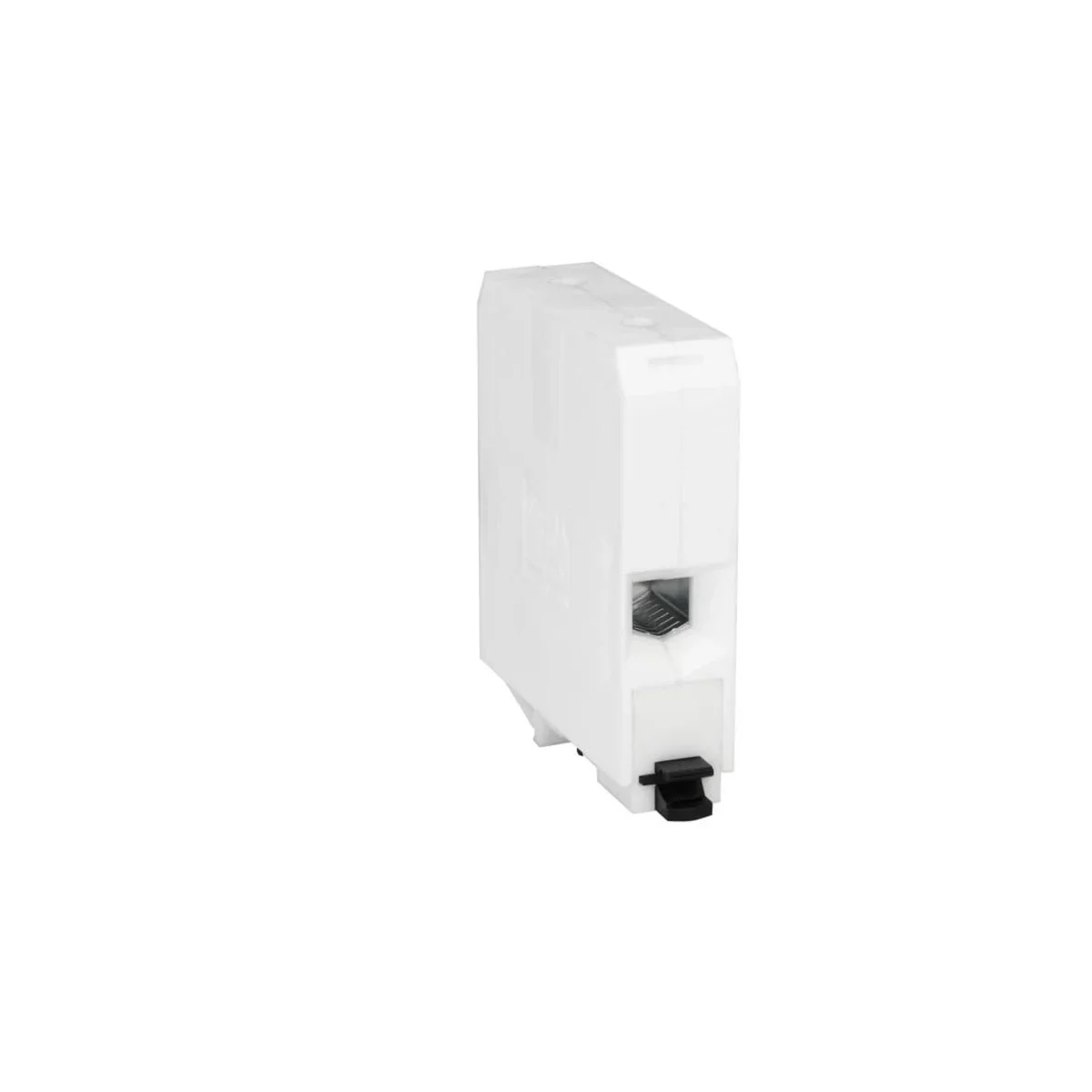

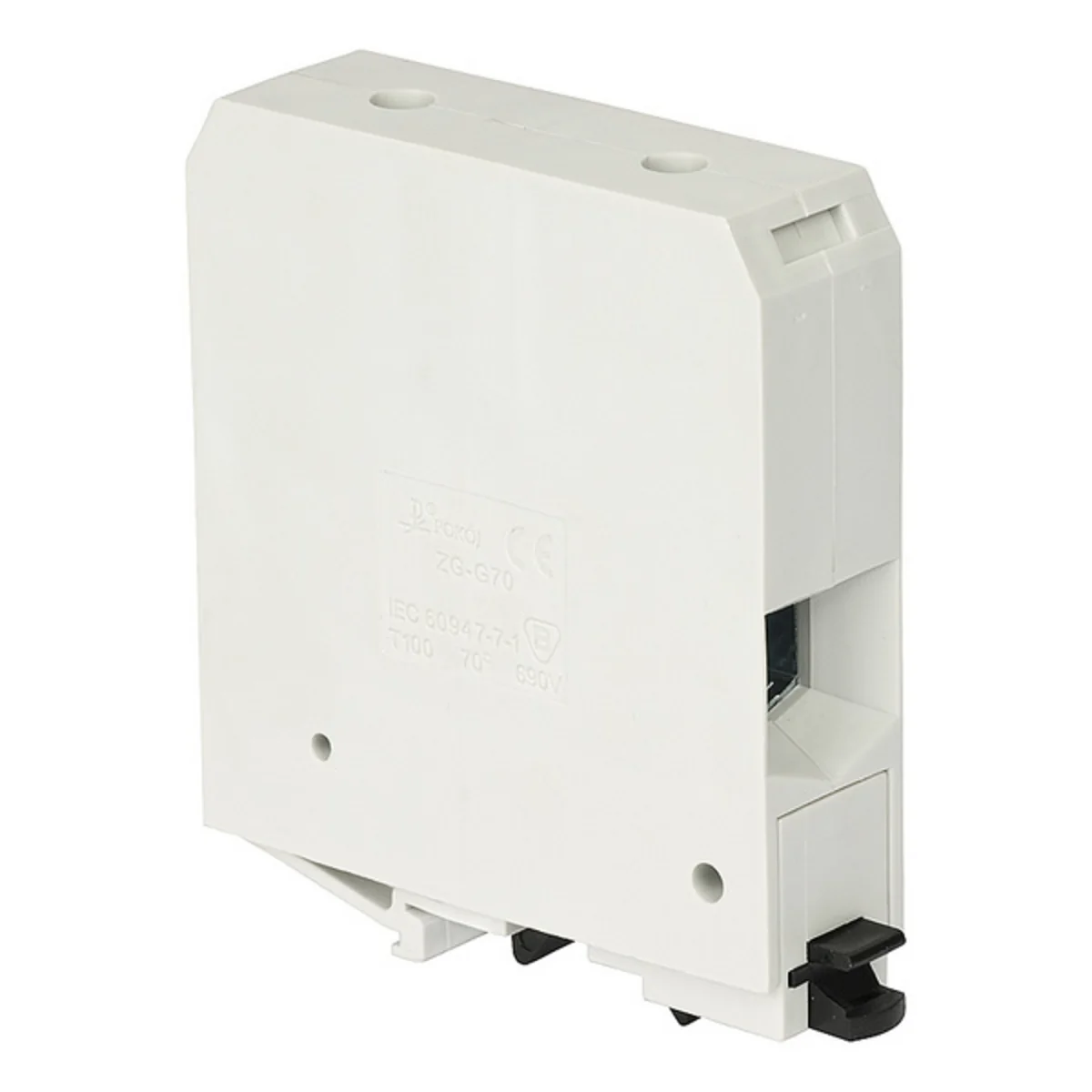

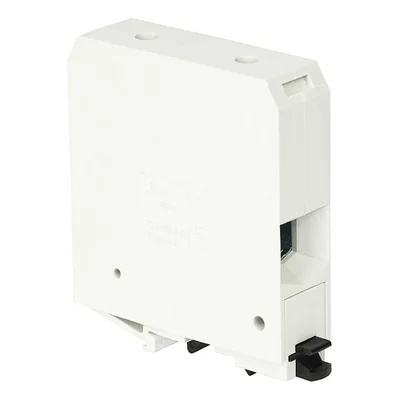

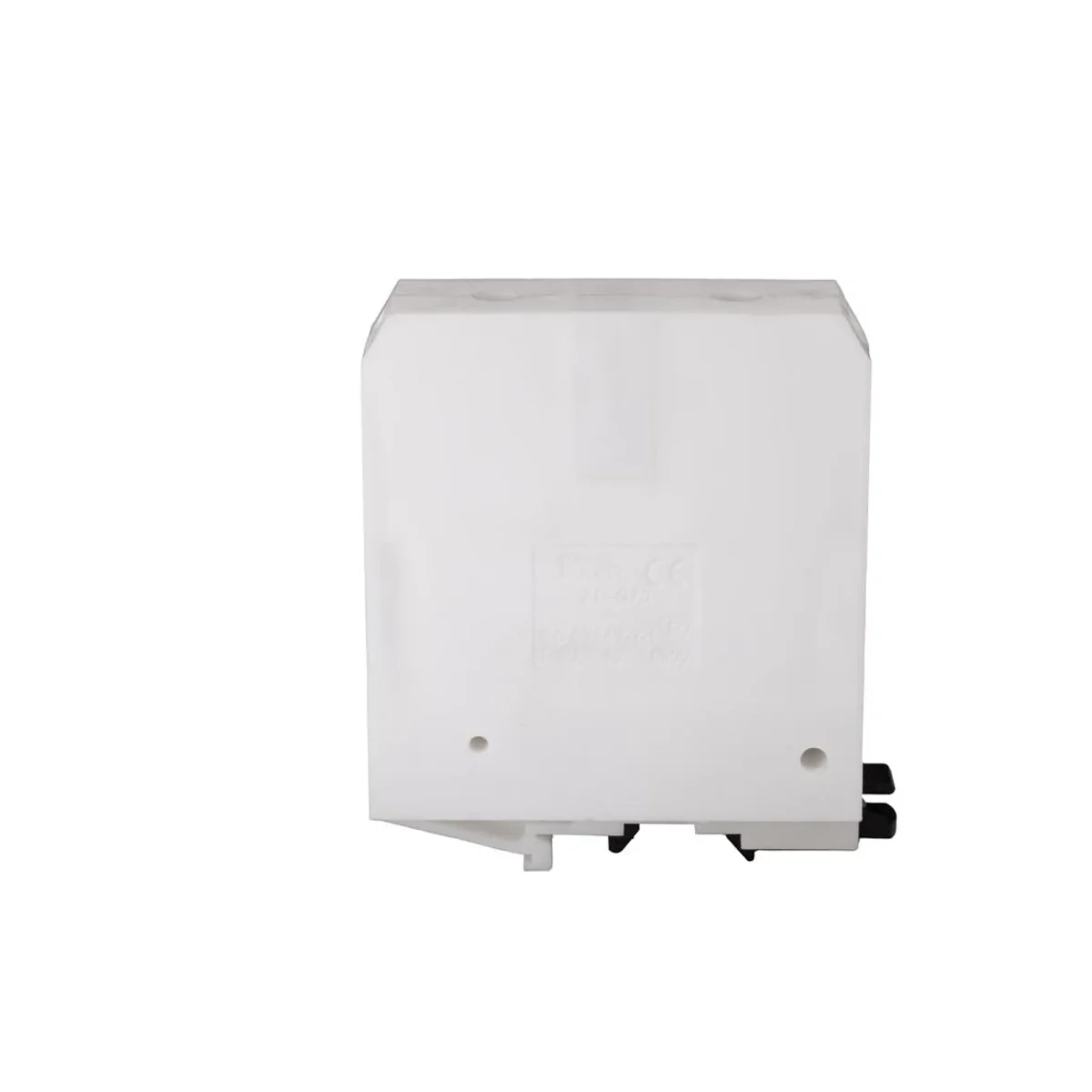

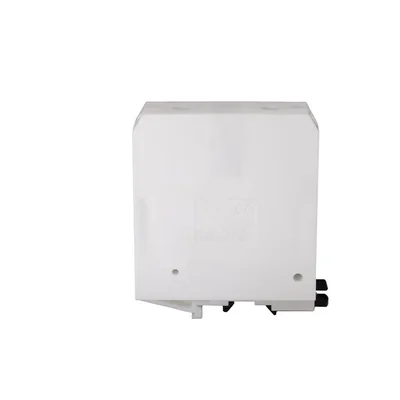

Connector ZG-G 70 white A11-0672

local index:
TES051POKO
Catalog No:
A11-0672
EAN code:
5902626101794
Manufacturer: POKÓJ
Color: White
Accurate color: White
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
2,93 €
gross / pcs.
(including VAT 23%)
Last lowest price: 14,82 € gross
Base price: 18,59 € gross -84%
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Connector ZG-G 70 white

Technical data

  • Color
    White
  • PKWIU
    27.12.40.0
  • Accurate color
    White

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Colour
    White
  • Connectable conductor cross section fine-strand without cable end sleeve
    16 ... 50 mm²
  • Connectable conductor cross section solid-core
    16 ... 70 mm²
  • Rated current In
    192 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    102 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    16 ... 50 mm²
  • Connectable conductor cross section multi-wired
    16 ... 50 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 100 °C
  • Width/grid dimension
    25 mm
  • Length
    85.5 mm
