Connector with varistor 24V DC 280-502/281-582
local index:
TEB062WAGO
Catalog No:
280-502/281-582
EAN code:
4045454308018
Manufacturer:
WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Gray
Number of potentials: 1
Price:
14,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

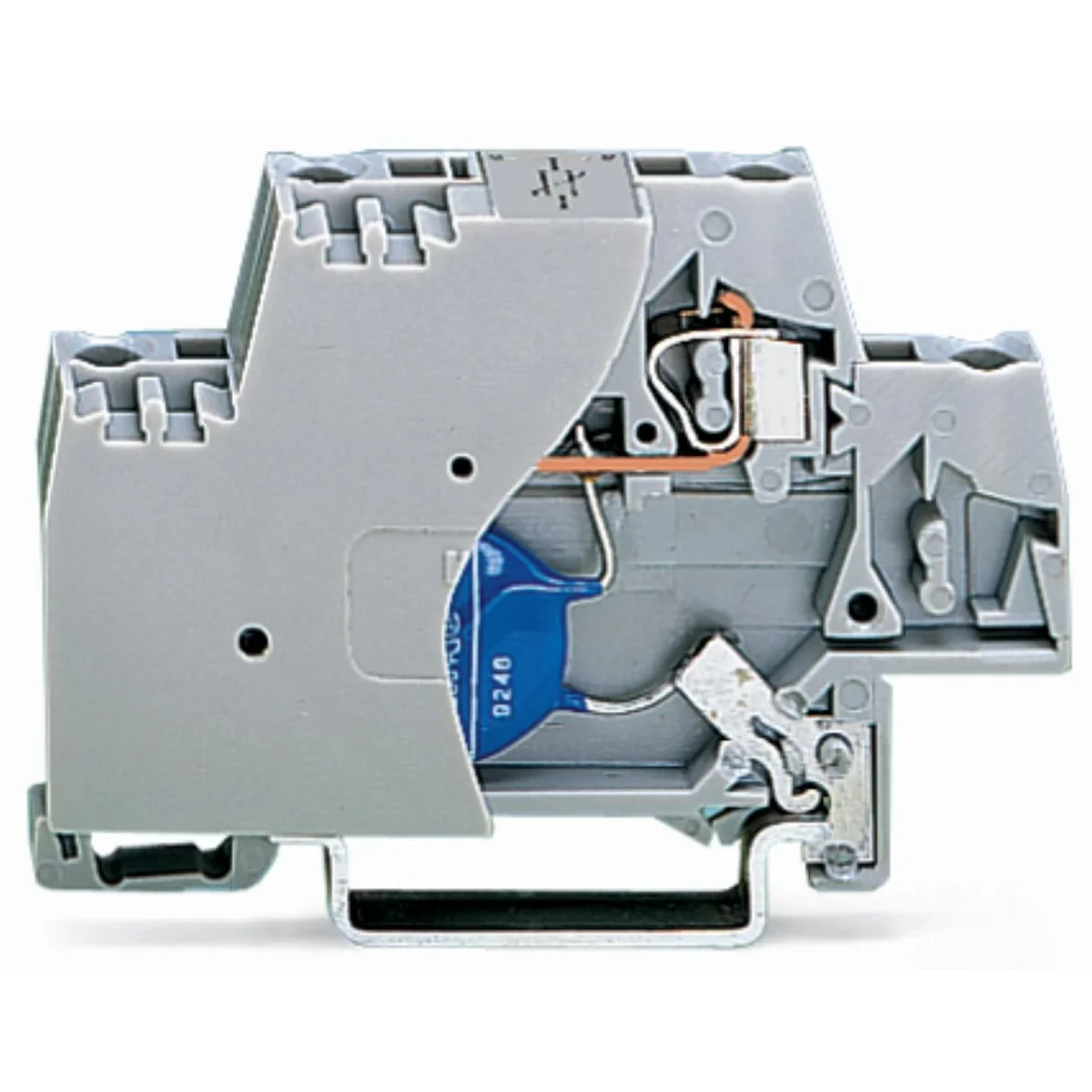

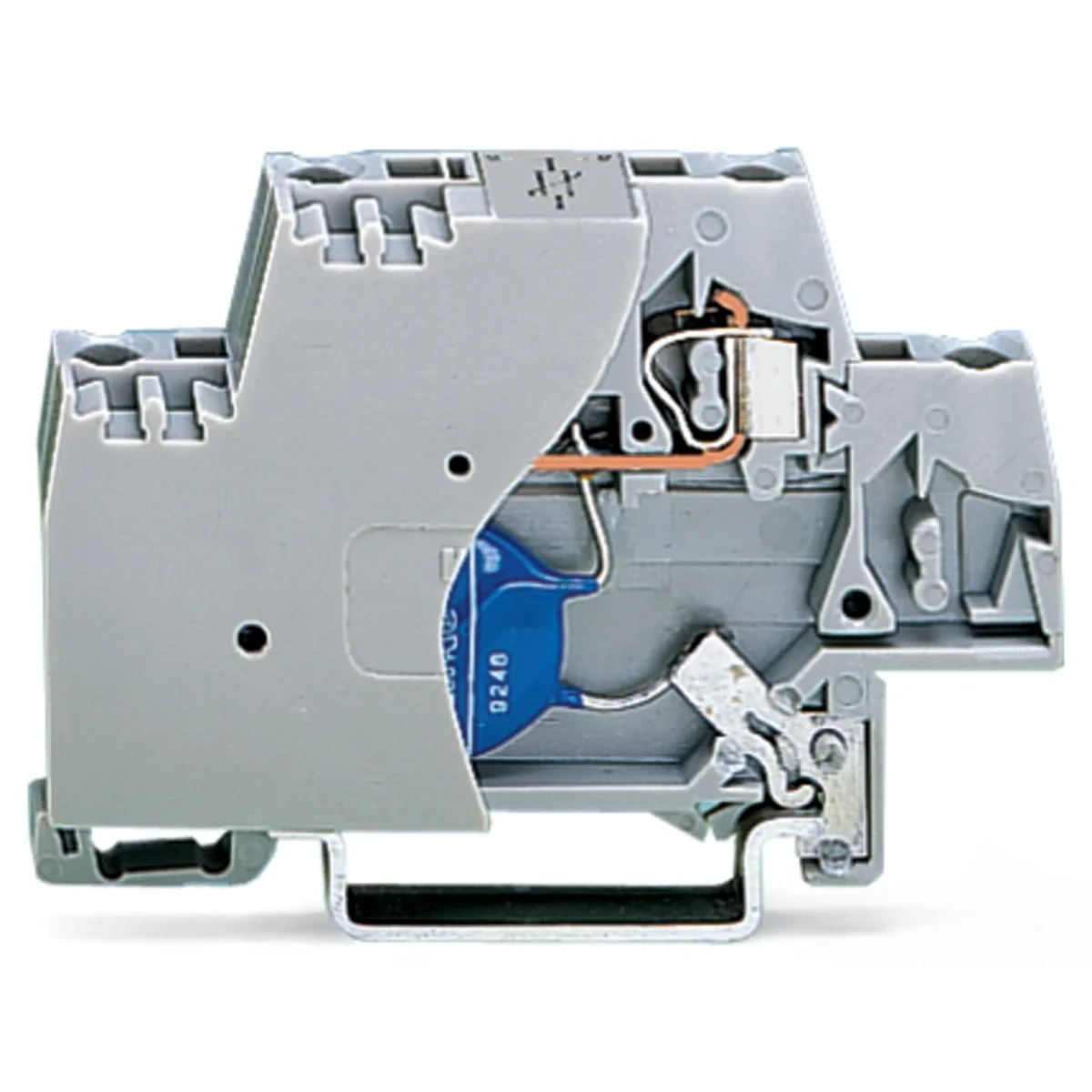

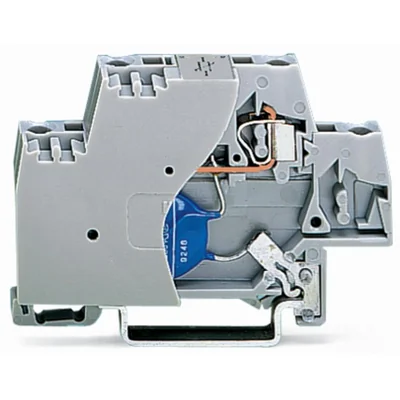

Terminal block with varistor and end plate with direct connection to the mounting rail
Technical data
-
Product group1 (strip terminal blocks)
-
Number of potentials1
-
Protection level [V]77
-
Gauge [AWG]28 - 14
-
How to install the cableFront mounting
-
Number of connectors2
-
ColorGray
-
Rated voltage [V]31
-
Rated current [A]20
-
Series280
-
Accurate colorGray
Other technical data
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Rated current In20 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension10 mm
-
Length64 mm
-
ColourGrey
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Rated voltage24 V
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Internally connected stagesNo
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu39.5 mm
-
Closing plate requiredYes
-

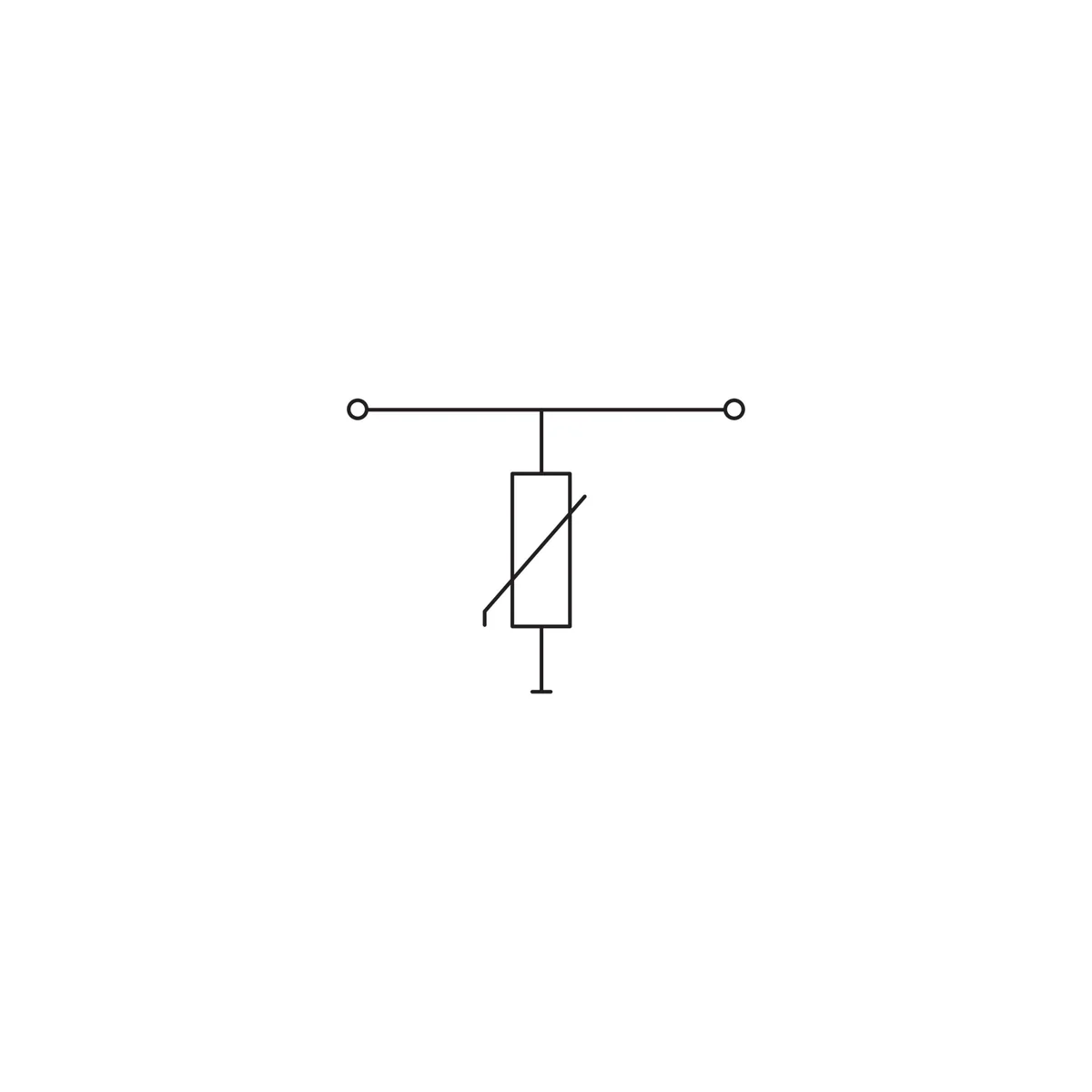

Type of componentVaristor (voltage-sensitive resistor)
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 50 pcs. |
| Weight (kg) | 0,709 |
| Volume (m3) | 0,003 |
| Width (m) | 0,134 |
| Length (m) | 0,285 |
| Depth (m) | 0,072 |
