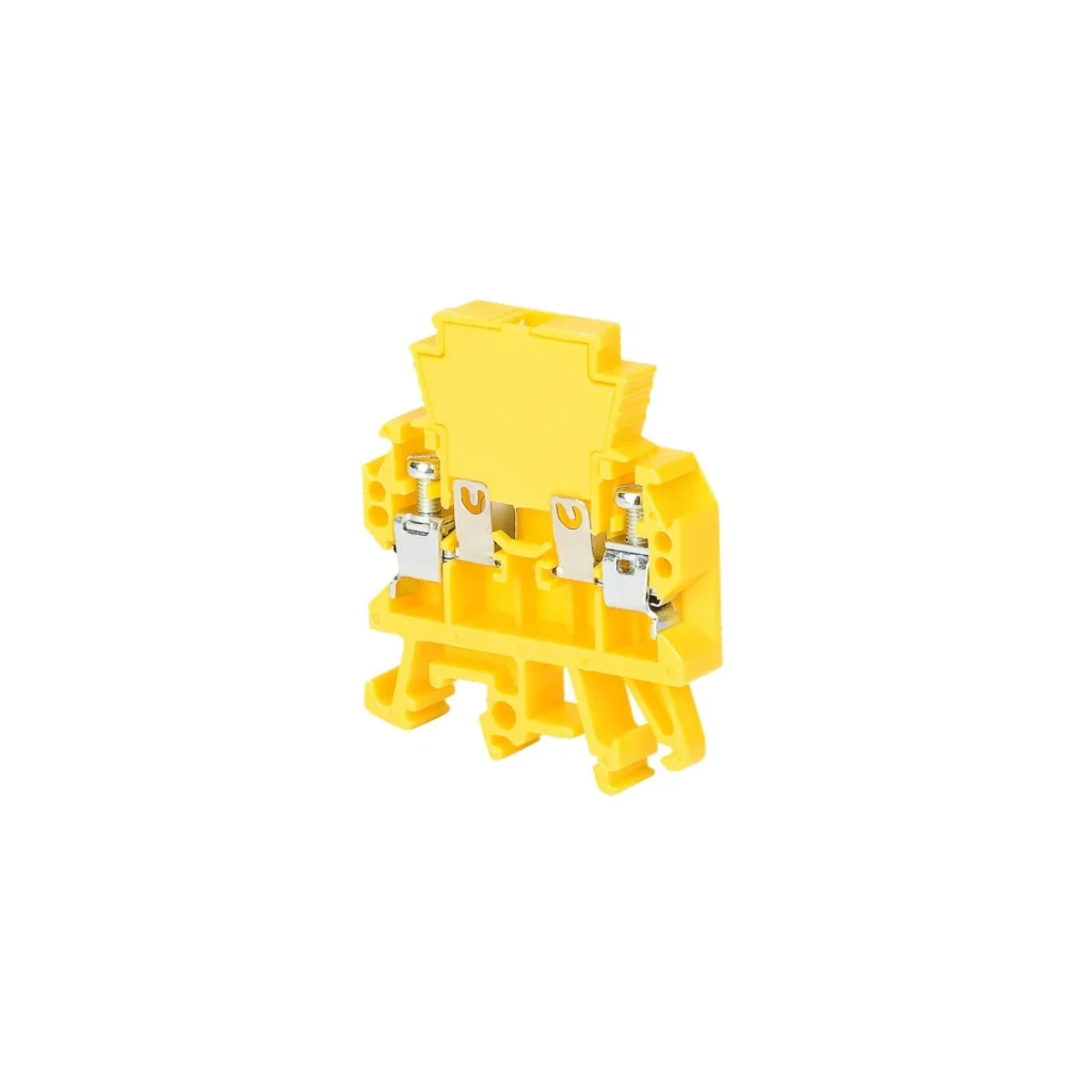

Connector with fuse insert ZUG-G/B A11-5101
local index:
TES062POKO
Catalog No:
A11-5101
EAN code:
5902626102241
Manufacturer:
POKÓJ
Color: Yellow
Price:
3,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These connectors are intended mainly for equipping with electronic components by soldering. The offered connectors are equipped with typical rectifying and signaling systems. The ambient temperature in which special connectors can work depends on the additional equipment.
Technical data
-
ColorYellow
-
PKWIU27.12.40
Other technical data
-
Type of fuse insertG-fuse 5x20 mm
-
Type of indication element for defect indicationNone
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section multi-wired0.5 ... 4 mm²
-
Rated voltage230 V
-
Type of electrical connection 2Screw connection
-
Connection positionSideways
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-

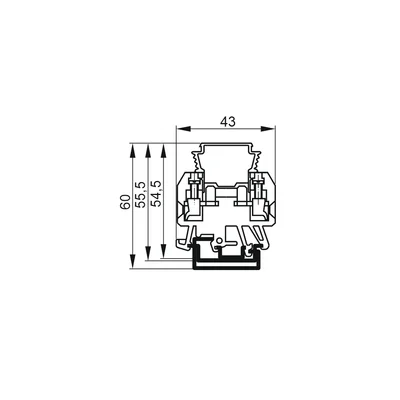

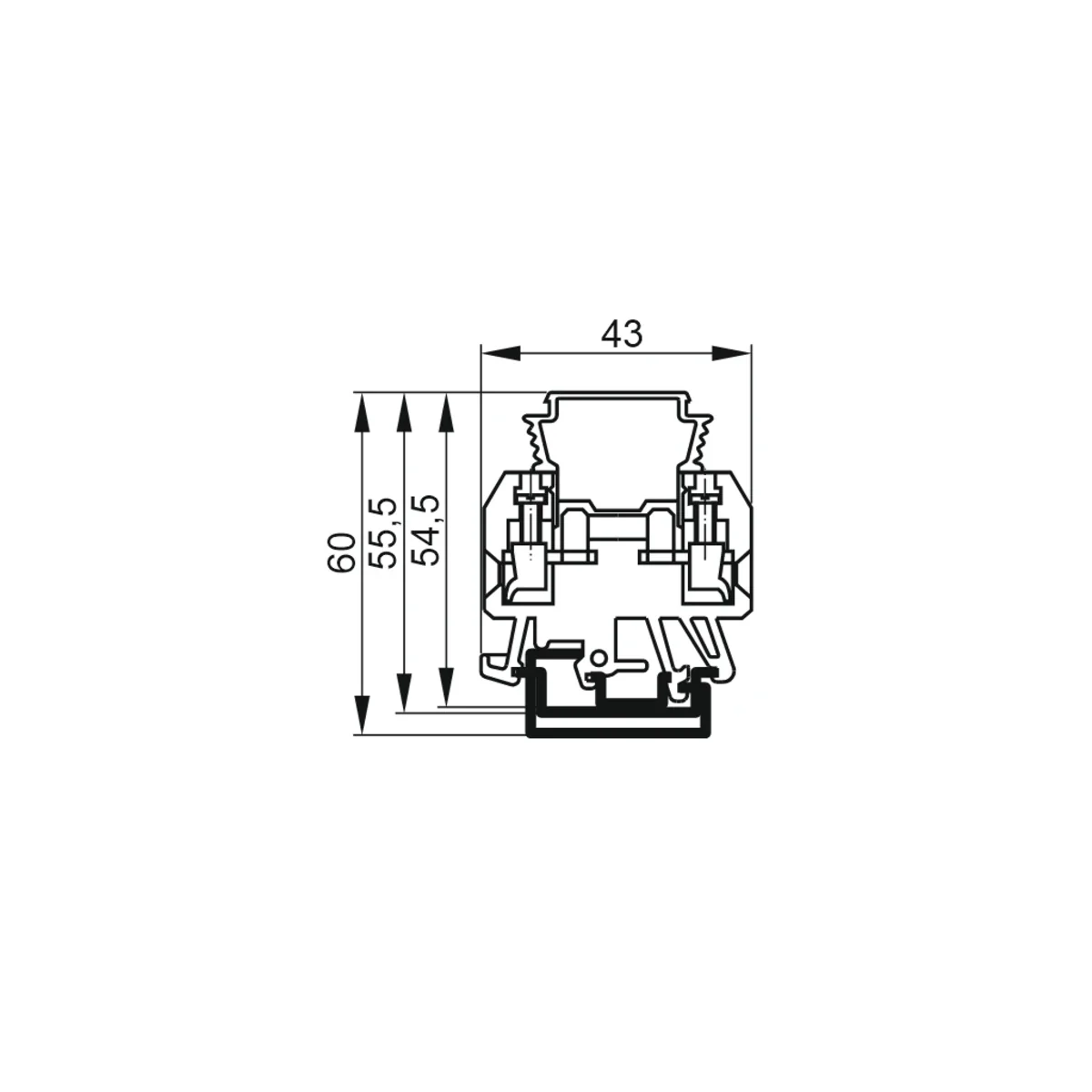

Wysokość przy najniższym sposobie montażu55.5 mm
-
Closing plate requiredYes
-
Type of fuse holderPluggable
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section solid-core0.5 ... 4 mm²
-
Rated current In6.3 A
-
Type of electrical connection 1Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension8 mm
-
Length43 mm
-
ColourYellow
