Connector for printed circuit boards blue raster 10/10,16mm 100pcs. 256-764
local index:
TEB941WAGO
Catalog No:
256-764
EAN code:
4044918810289
Price:
250,85 zł
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

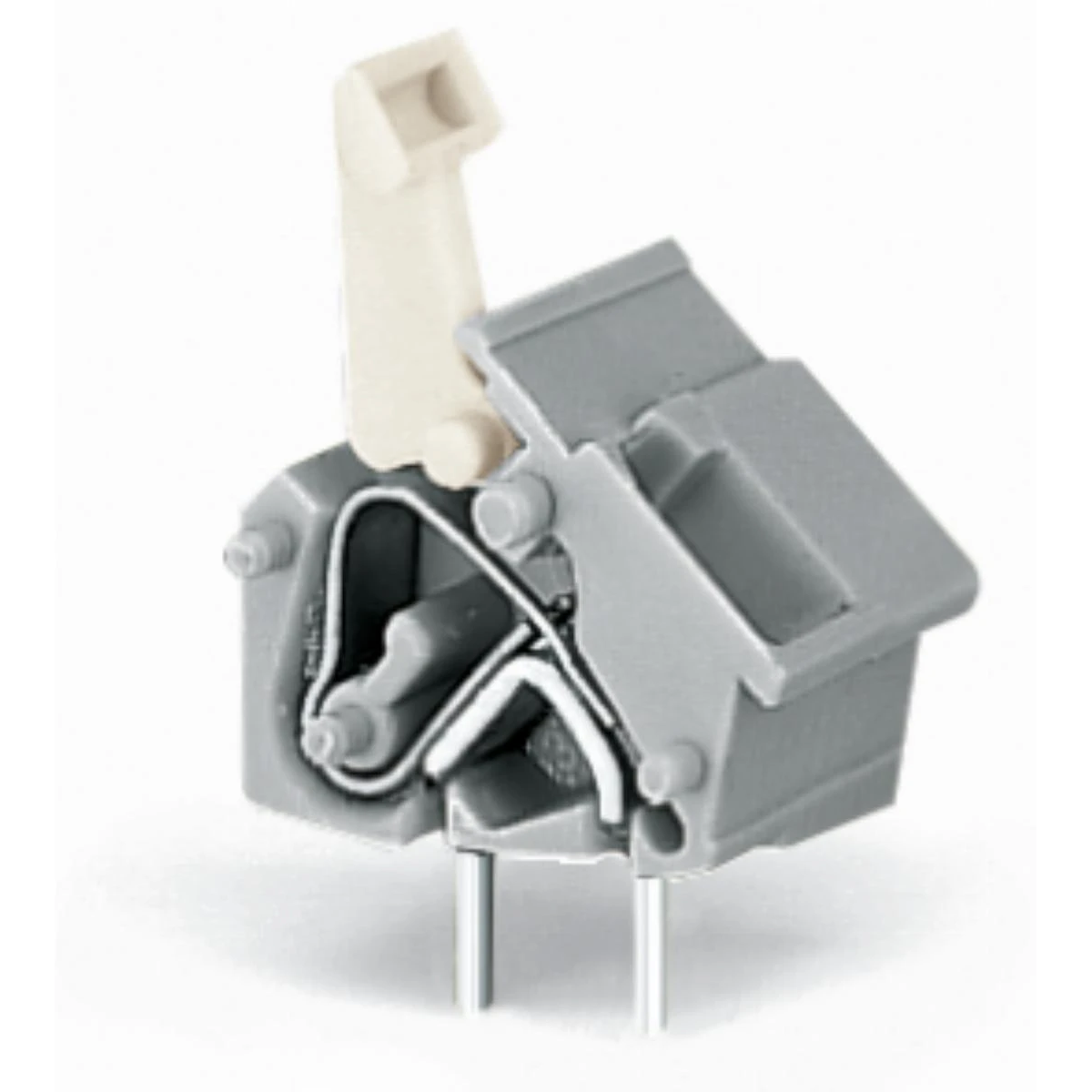

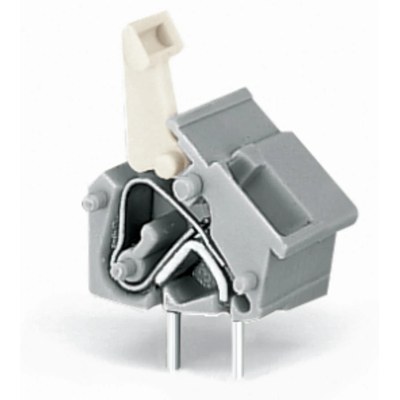

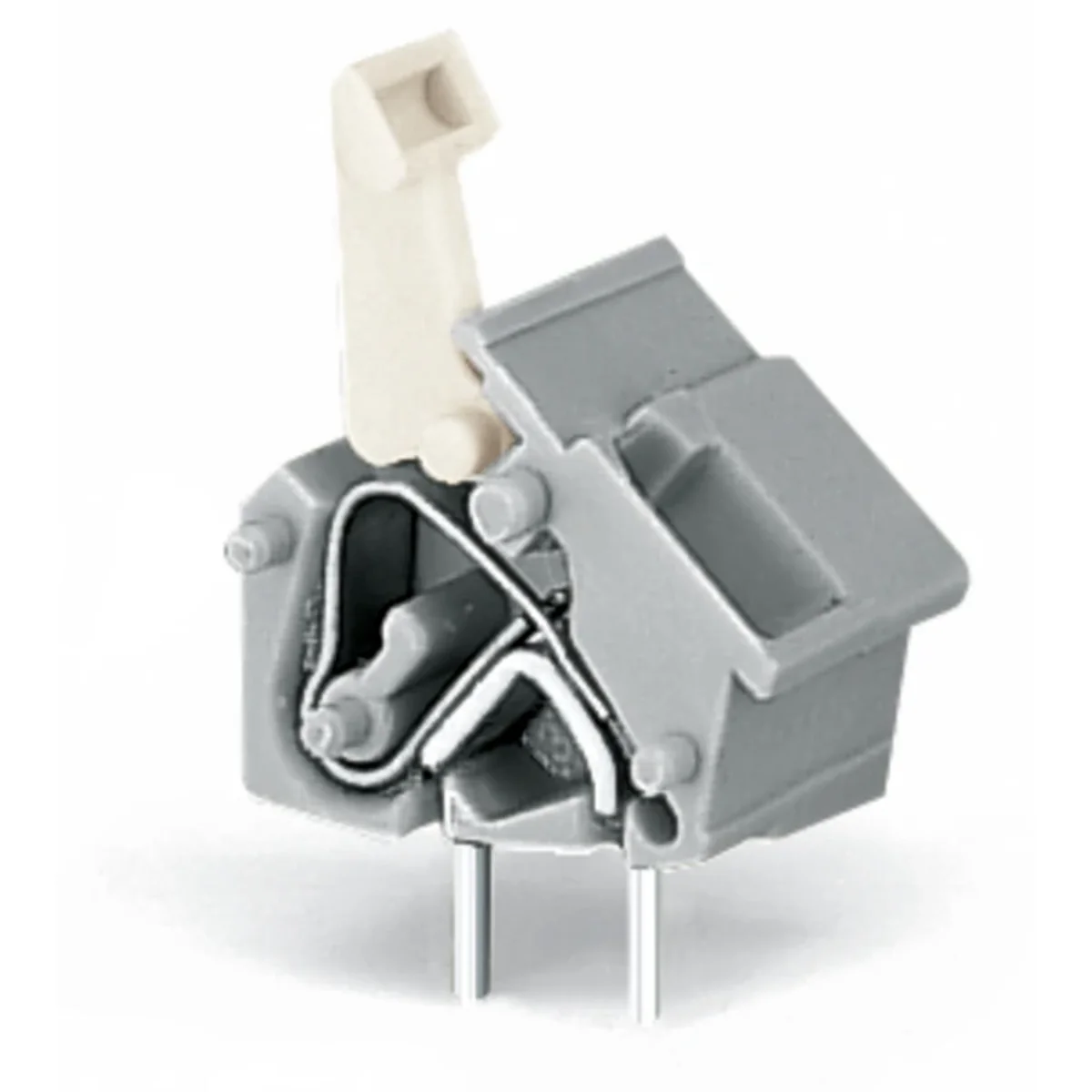

Connector for printed circuit boards 2 soldering pins per track 1-way pitch 10/10.16 mm/0.4 in for use also in Ex i circuits
Technical data
-
Pin length [mm]4
-
ColorBlue
-
Surge voltage [kV]6
-
Rated current [A]24
-
Cross-section of the connected stranded wire without ferrule [mm]0.08 - 2.5
-
PCB connection typeSolder connection
-
Accurate colorBlue
-
Overvoltage category EN 1III
-
Connection surface materialTin
-
Rated voltage EN [V]630
-
Cross-section of connected single-wire cable [mm]0.08 - 2.5
-
Cross-section of the connected stranded wire with a ferrule [mm]0.25 - 1.5
-
Series256
-
Number of connectors1
Other technical data
-

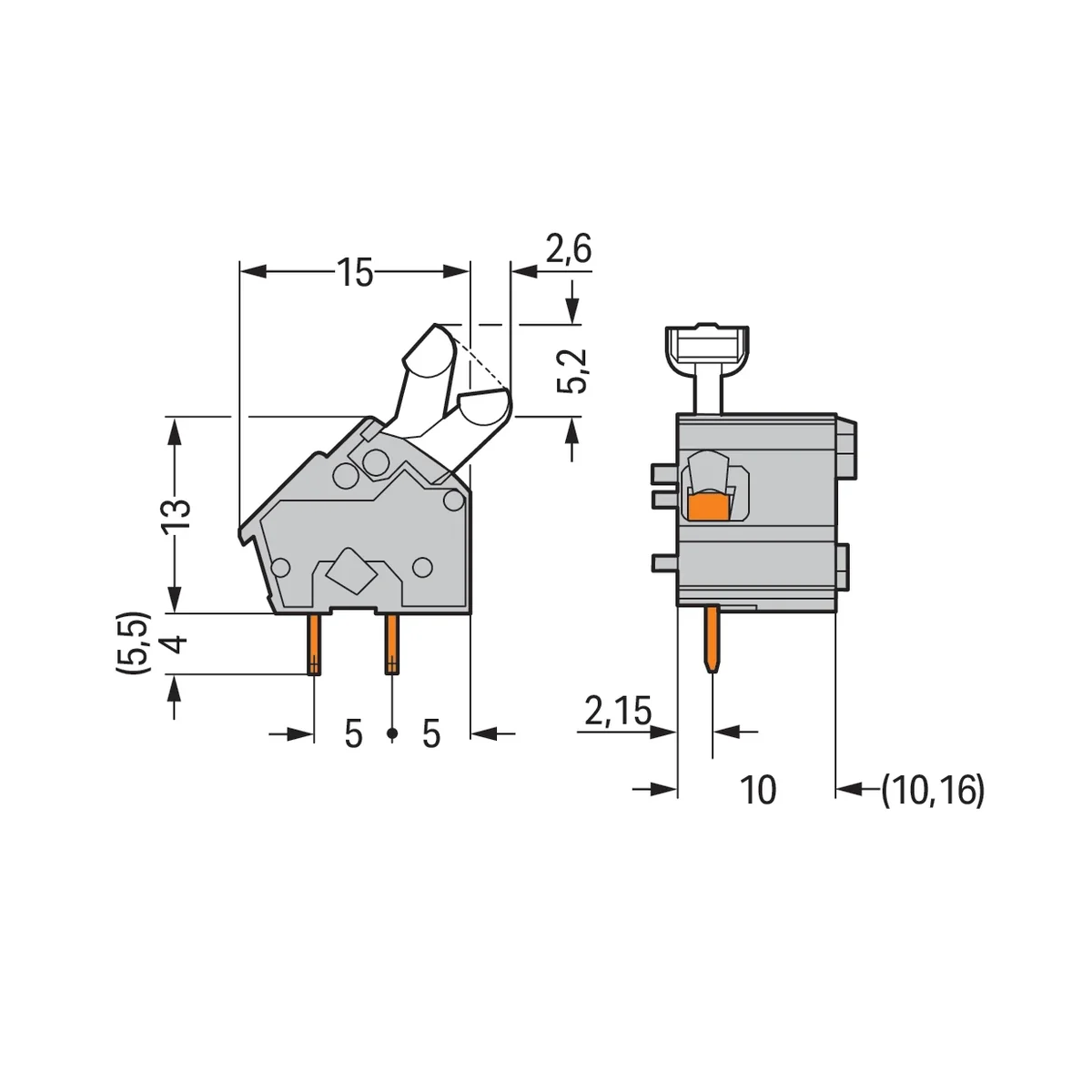

Height18.2 mm
-
Number of levels1
-
Angle PCB/conductor connection45°/135° (downwards inclined)
-
Rated voltage630 V
-
Over voltage categoryIII
-
Connection type conductorSpring clamp connection
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Material connection surfaceTin
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Type of PCB fasteningConnecting contact
-
Type of bandingNone
-
Number of electrical connections1
-
Modular spacing connections10 mm
-
Rated current In24 A
-
Rated surge voltage6 kV
-
Pollution degree2
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connection type PCBSoldering connection
-
Length pin4 mm
-
Housing colourBlue
-
Operating temperature-60 ... 105 °C
-
Type of fasteningSolder
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 3 pkg. |
| Weight (kg) | 0,467 |
| Volume (m3) | 0,002 |
| Width (m) | 0,139 |
| Length (m) | 0,172 |
| Depth (m) | 0,136 |
