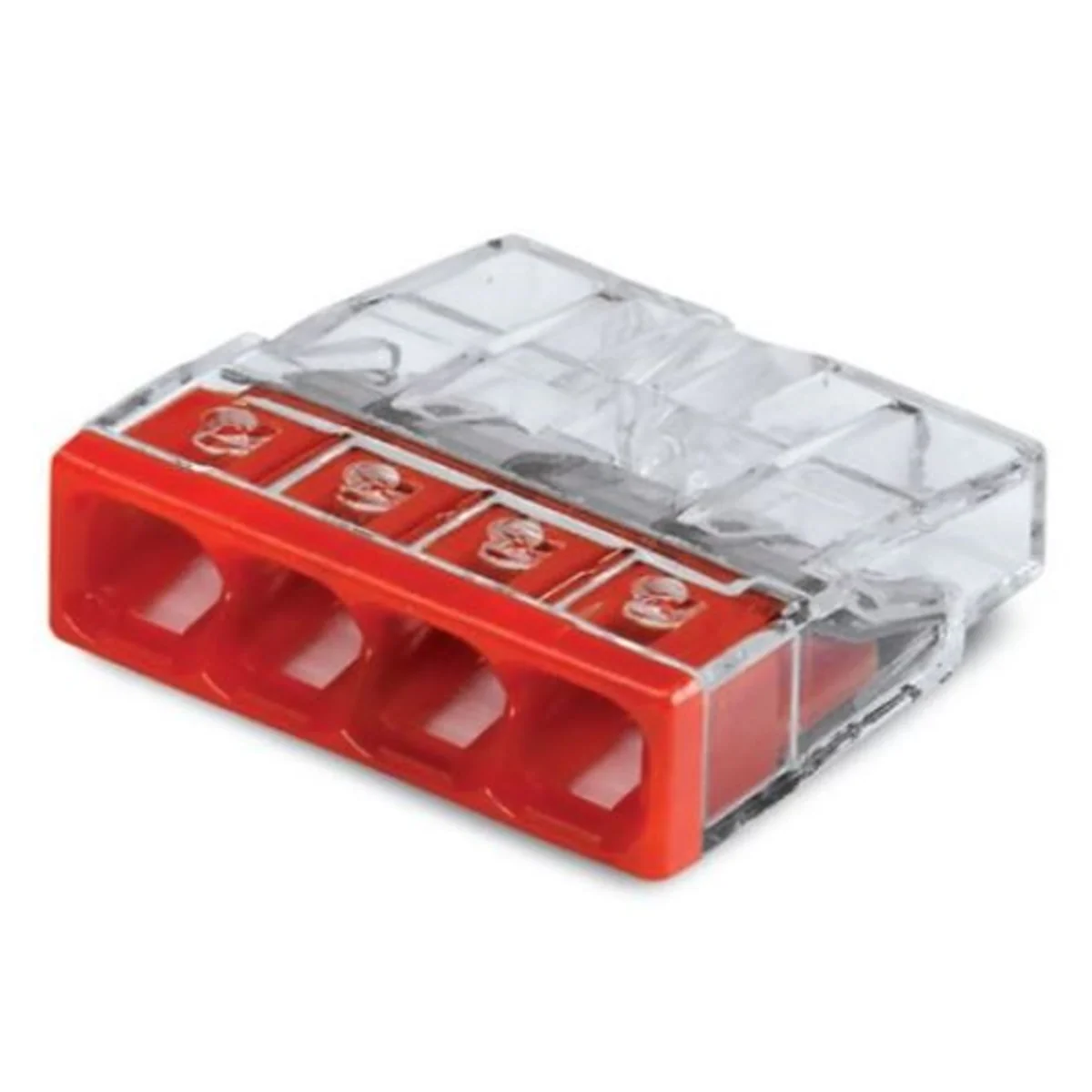

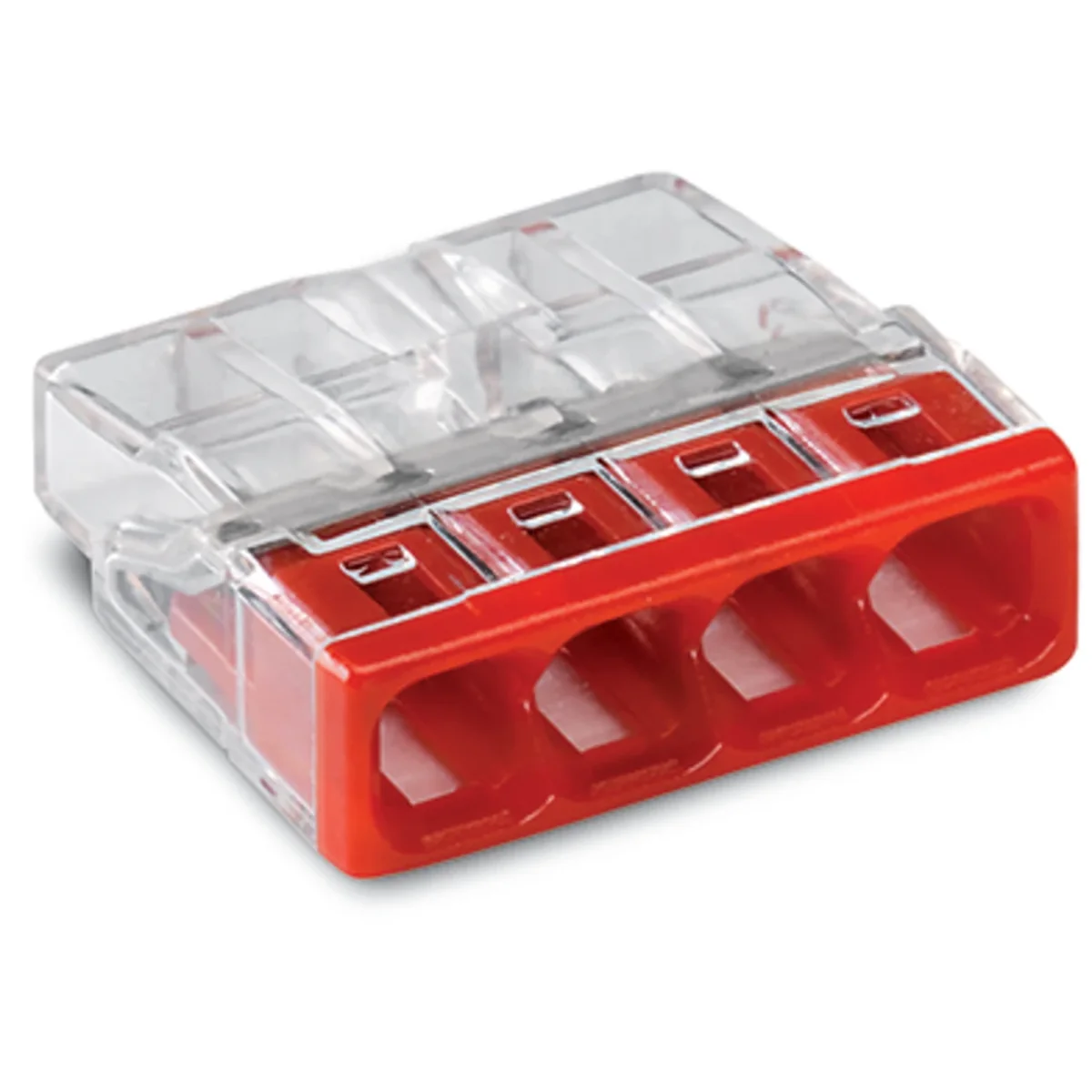

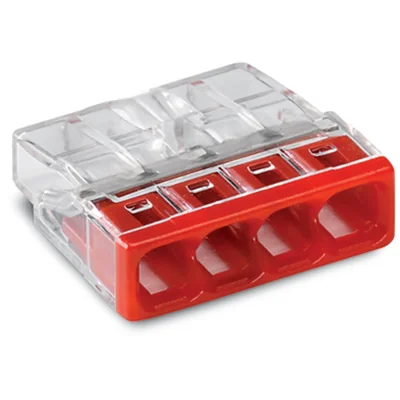

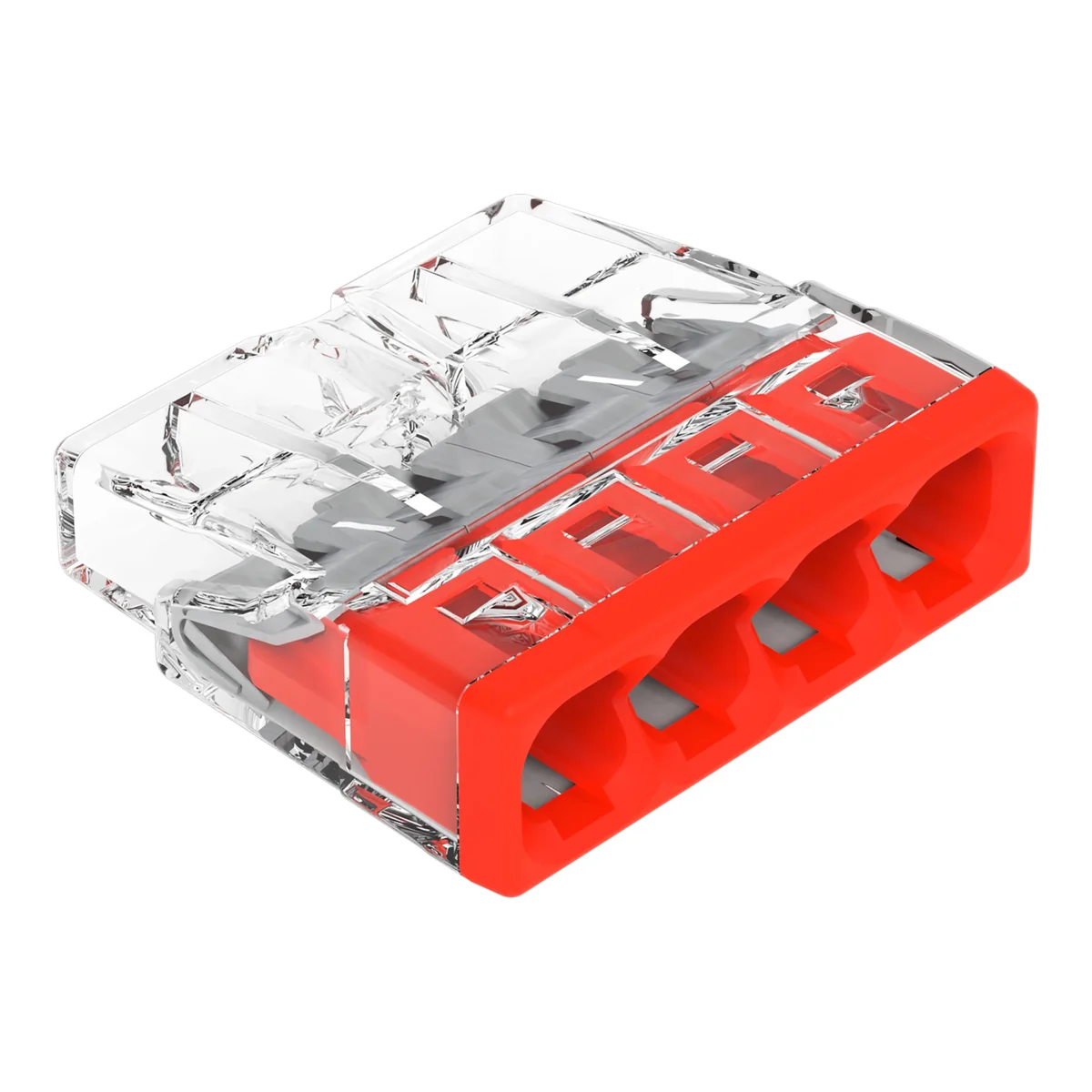

Connector for installation boxes 4x2.5mm² transparent-red 2273-204

local index:
TEB052WAGO
Catalog No:
2273-204
EAN code:
4050821027867
Manufacturer: WAGO ELWAG
Number of tracks: 4
Color: Transparent
Rated current [A]: 24
Price:
27,49 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 91 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

COMPACT 4-wire installation connector.

Technical data

  • Number of tracks
    4
  • Rated current [A]
    24
  • Cable type
    E
  • Series
    2273
  • Rated impulse voltage [kV]
    4
  • Number of connectors
    4
  • PKWIU
    27.33.13.0
  • Color
    Transparent
  • Gauge [AWG]
    18 - 14
  • Clamp type
    PUSH WIRE
  • Dirt zone
    2
  • Accurate color
    Transparent, red
  • Suitable cross sections [mm²]
    0.5 0.75 1 1.5 2.5

Other technical data

  • Number of clamp positions
    4
  • With operation lever
    No
  • Nominal voltage
    450 V
  • Suitable for solid conductors
    Yes
  • Suitable for multi-wire conductors
    No
  • AWG-range
    18 ... 14
  • Nominal cross section
    0.5 ... 2.5 mm²
  • Colour
    Przezroczysty (transparentny)
  • Nominal current
    24 A
  • Suitable for flexible conductors
    No
  • Conductor cross section solid (solid, stranded)
    0.5 ... 2.5 mm²

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 1,564
Volume (m3) 0,005
Width (m) 0,170
Length (m) 0,220
Depth (m) 0,110
