Connector for installation boxes 4 x 4mm2 brown-red 773-604

local index:
TEB199WAGO
Catalog No:
773-604
EAN code:
4055143243681
Manufacturer: WAGO ELWAG
Depth [mm]: 19.5
Rated voltage [V]: 400
Rated current [A]: 32
Price:
0,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 266 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended for:


  • connecting lighting stringsconnecting 3-phase sockets

  • extending cables

  • connecting high-current devices
  • extensive building installations requiring

  • larger cross-sections due to voltage drop.

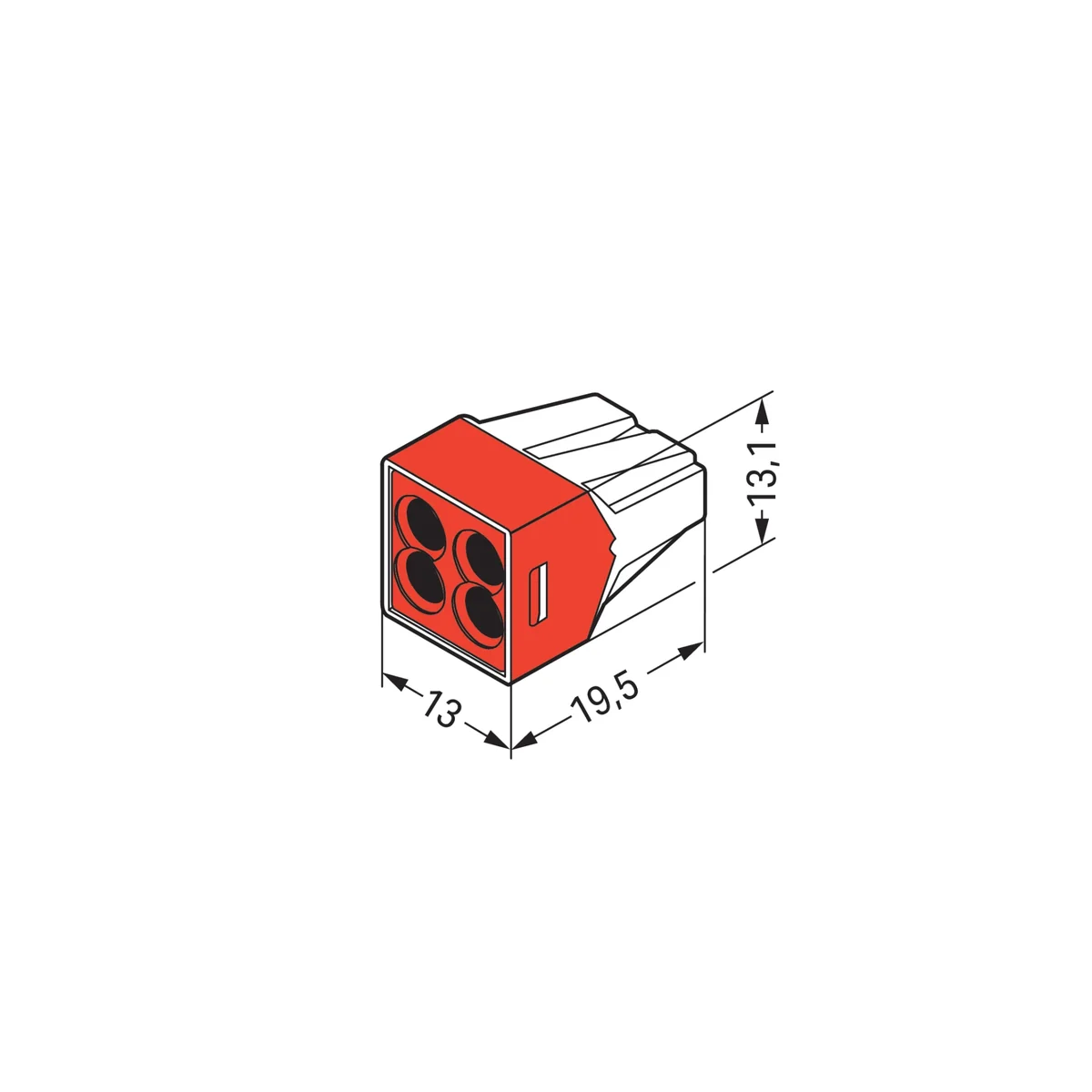

Technical data

  • Depth [mm]
    19.5
  • Rated current [A]
    32
  • Width [mm]
    9.2
  • Maximum conductor cross-section [mm²]
    4
  • Rated voltage [V]
    400
  • Series
    773
  • Height [mm]
    13.1
  • Number of connectors
    4

Other technical data

  • Number of clamp positions
    4
  • With operation lever
    No
  • Nominal voltage
    400 V
  • Suitable for solid conductors
    Yes
  • Suitable for multi-wire conductors
    No
  • AWG-range
    16 ... 12
  • Nominal cross section
    1.5 ... 4 mm²
  • Colour
    Brown
  • Nominal current
    32 A
  • Suitable for flexible conductors
    No
  • Conductor cross section solid (solid, stranded)
    1.5 ... 4 mm²

Bulk packaging

A kind of package Karton
Quantity 1000 pcs.
Weight (kg) 2,793
Volume (m3) 0,005
Width (m) 0,220
Length (m) 0,425
Depth (m) 0,058
