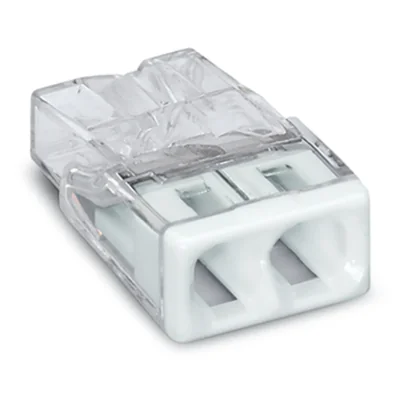

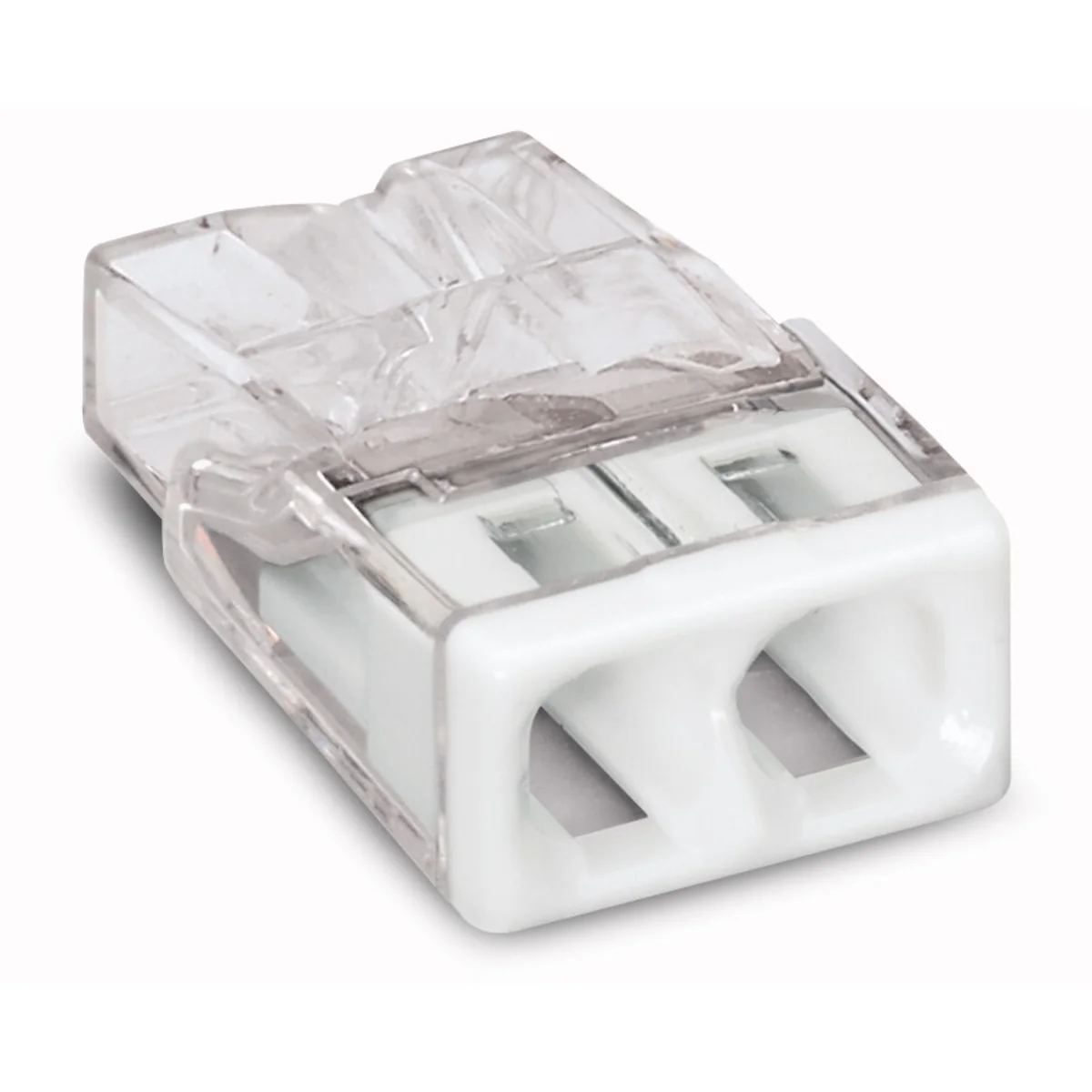

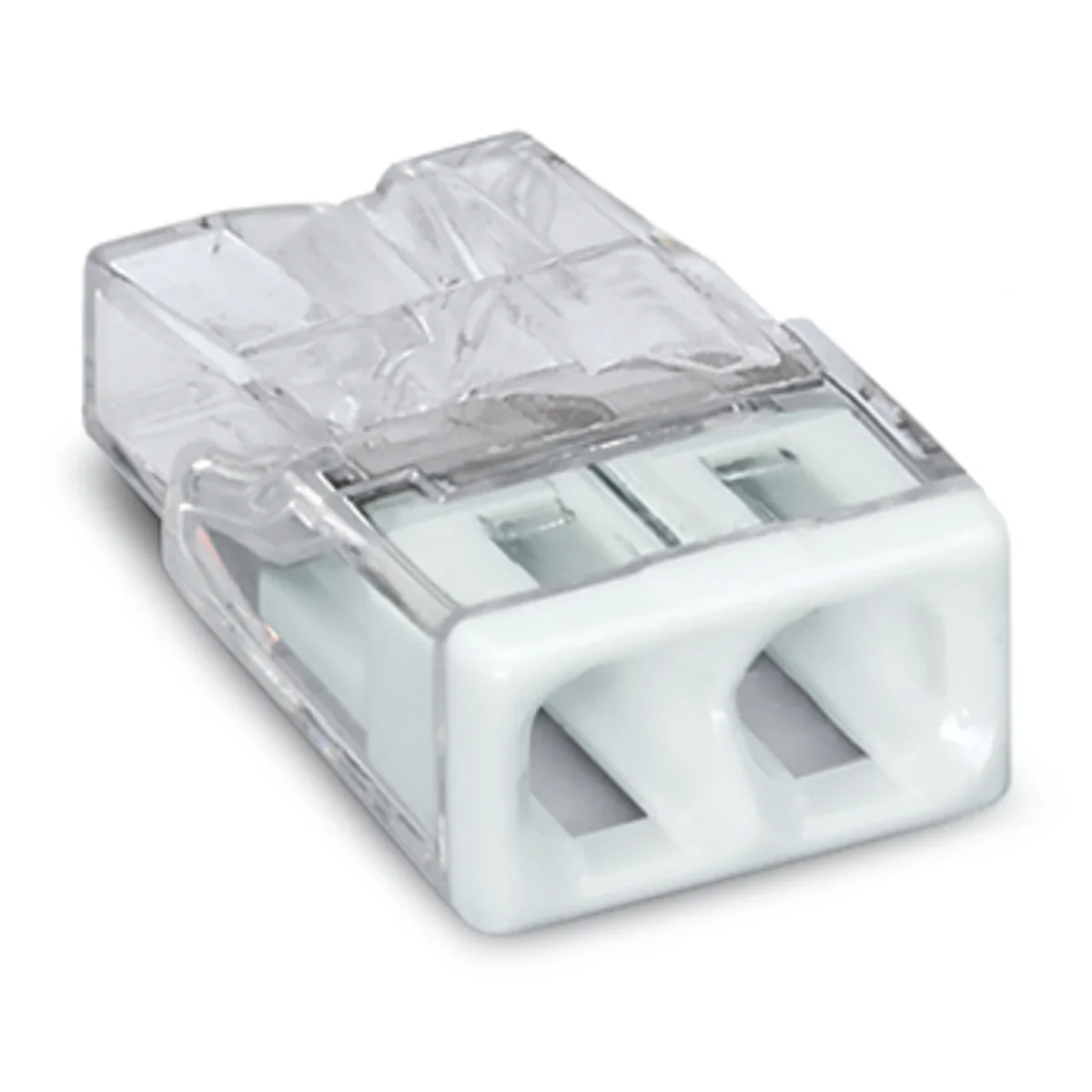

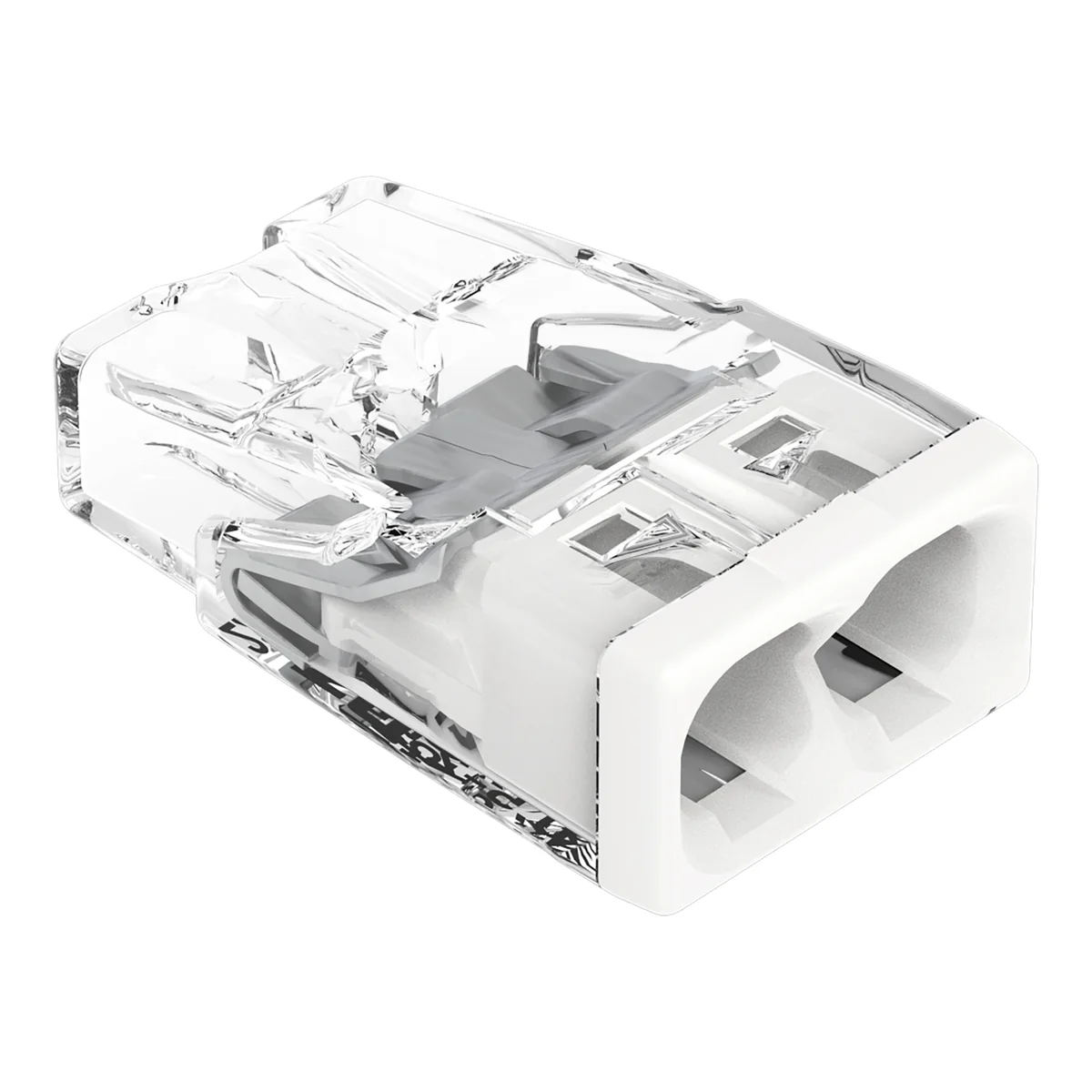

Connector for installation boxes 2x2.5mm² transparent-white 2273-202

local index:
TEB050WAGO
Catalog No:
2273-202
EAN code:
4050821027843
Manufacturer: WAGO ELWAG
Depth [mm]: 16.7
Color: Transparent
Number of potentials: 1
Price:
18,19 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 121 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

The new "WAGO" connectors are over 50% smaller than the 273 series, proven billions of times. The transparent housing of the connector for junction boxes guarantees safe and error-free connection of solid wires.

COMPACT connector for installation boxes 2273. Yes small, yet so big.

How do you create the all-time installation nipple? Dimensions are minimized while maintaining maximum comfort and safety:

Comfort in every respect

Small but powerful! The COMPACT 2273 series junction box connectors are more than 50% smaller than the billions-proven "WAGO" 273 series connectors. This saves a lot of space. In addition, the possibility of creating any combination of wires with cross-sections from 0.5 to 2.5 mm², nominal current up to 24 A and a clear color distinction for quick identification - all this creates perfect conditions for creating installations. The new "WAGO" connector is more comfortable than ever before!

Everything under control

The transparent housing allows visual inspection of the correct arrangement of cables. The touch protection inspection visor allows you to check that the wires have been properly isolated. The measuring holes are adapted to all commercially available measuring tips.

Ensuring installation safety is child's play here!

Technical data

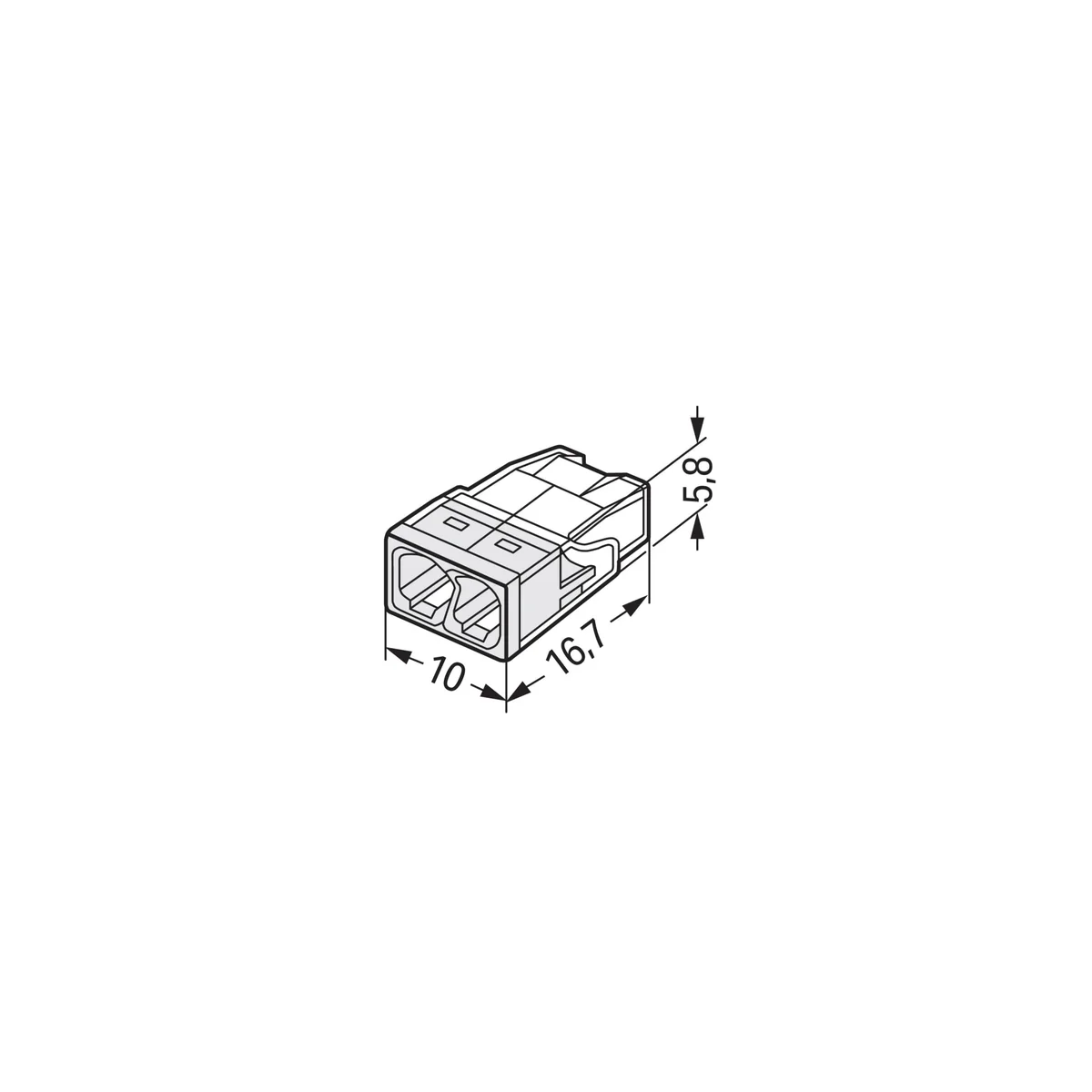

  • Depth [mm]
    16.7
  • Number of potentials
    1
  • Rated current [A]
    24
  • Cable type
    E
  • Series
    2273
  • Width [mm]
    10
  • Rated impulse voltage [kV]
    4
  • Wire cross-section [mm²]
    0.5 - 2.5
  • PKWIU
    27.33.13.0
  • Color
    Transparent
  • Rated voltage [V]
    450
  • Gauge [AWG]
    18 - 14
  • Clamp type
    PUSH WIRE
  • Dirt zone
    2
  • Height [mm]
    5.8
  • Number of connectors
    2
  • Suitable cross sections [mm²]
    0.5 0.75 1 1.5 2.5

Other technical data

  • Number of clamp positions
    2
  • With operation lever
    no
  • Nominal voltage
    450 V
  • Suitable for solid conductors
    yes
  • Suitable for multi-wire conductors
    no
  • AWG-range
    18 ... 14
  • Nominal cross section
    0.5 ... 2.5 mm²
  • Colour
    Przezroczysty (transparentny)
  • Nominal current
    24 A
  • Suitable for flexible conductors
    no
  • Conductor cross section solid (solid, stranded)
    0.5 ... 2.5 mm²

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 0,985
Volume (m3) 0,004
Width (m) 0,170
Length (m) 0,220
Depth (m) 0,110
