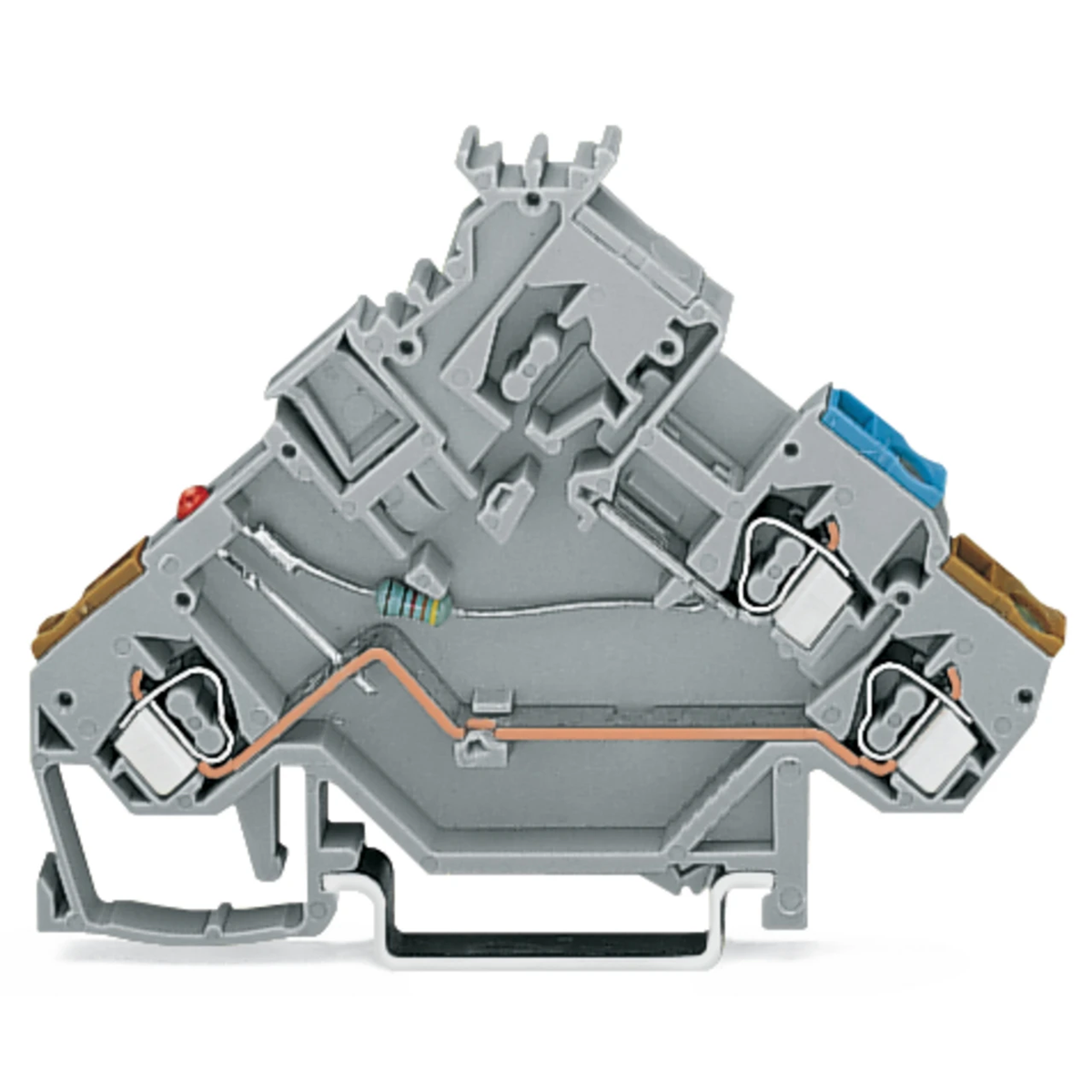

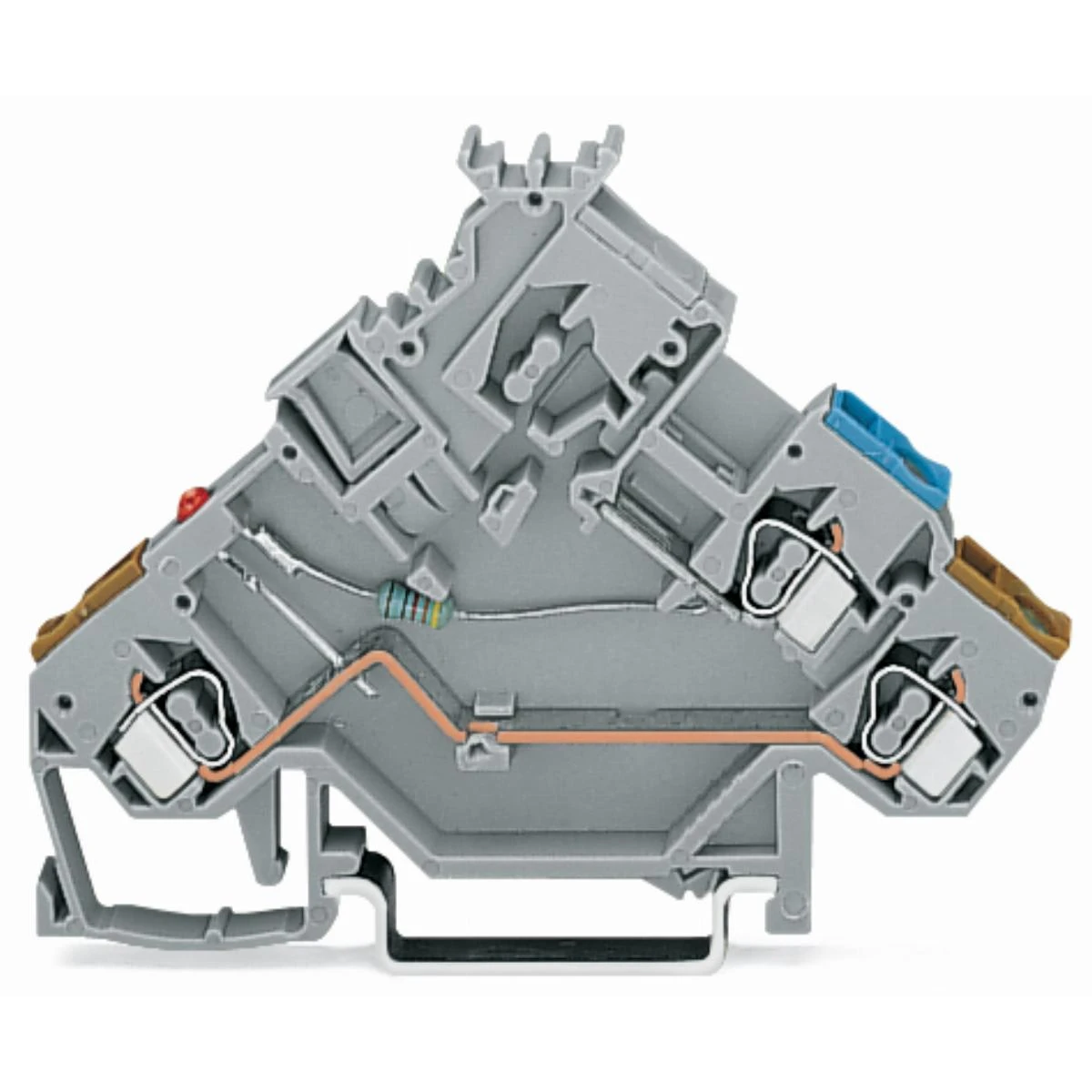

Connector for actuators with LED 24 V DC 280-562/281-420

local index:
TEB241WAGO
Catalog No:
280-562/281-420
EAN code:
4045454327026
Manufacturer: WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Gray
Number of potentials: 1
Price:
470,34 €
gross / pkg.
(including VAT 23%)
9,41 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

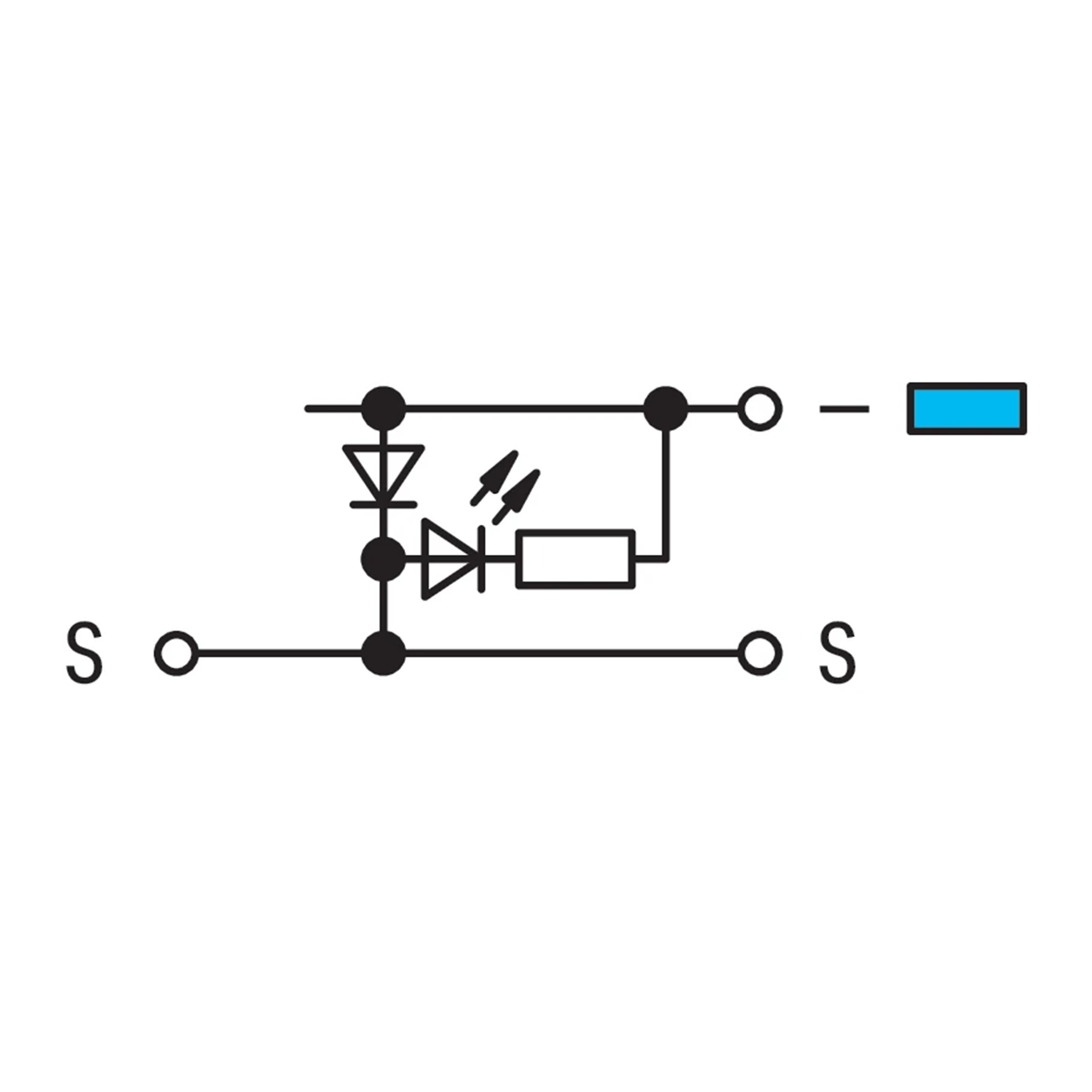

Connector with LED for actuators with suppressor diode 1N4007 red LED 24 V DC

Technical data

  • Product group
    1 (strip terminal blocks)
  • Number of potentials
    1
  • Rated current [A]
    20
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Angular
  • Weight [g]
    10.51
  • Number of connectors
    3
  • Color
    Gray
  • Current consumption[mA]
    4.8
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Series
    280
  • Pieces in the package
    50
  • Accurate color
    Gray

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Rated current In
    20 A
  • Number of levels
    1
  • Internally connected stages
    No
  • Type of electrical connection 2
    Spring clamp connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    55.5 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • LED switching for
    No
  • With shield connection
    No
  • Disconnect function
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Rated voltage
    24 V
  • Number of clamp positions per level
    3
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Inclined
  • Cross connectable
    No
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5 mm
  • Length
    80 mm
  • Closing plate required
    Yes
  • Colour light source
    Red
  • With PE connection
    No
  • With power supply function
    No

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,577
Volume (m3) 0,002
Width (m) 0,100
Length (m) 0,272
Depth (m) 0,084
