Connection strip IP2x Z13 004834

local index:

TEG020LEGR

Catalog number:

004834

EAN code:

3245060048341

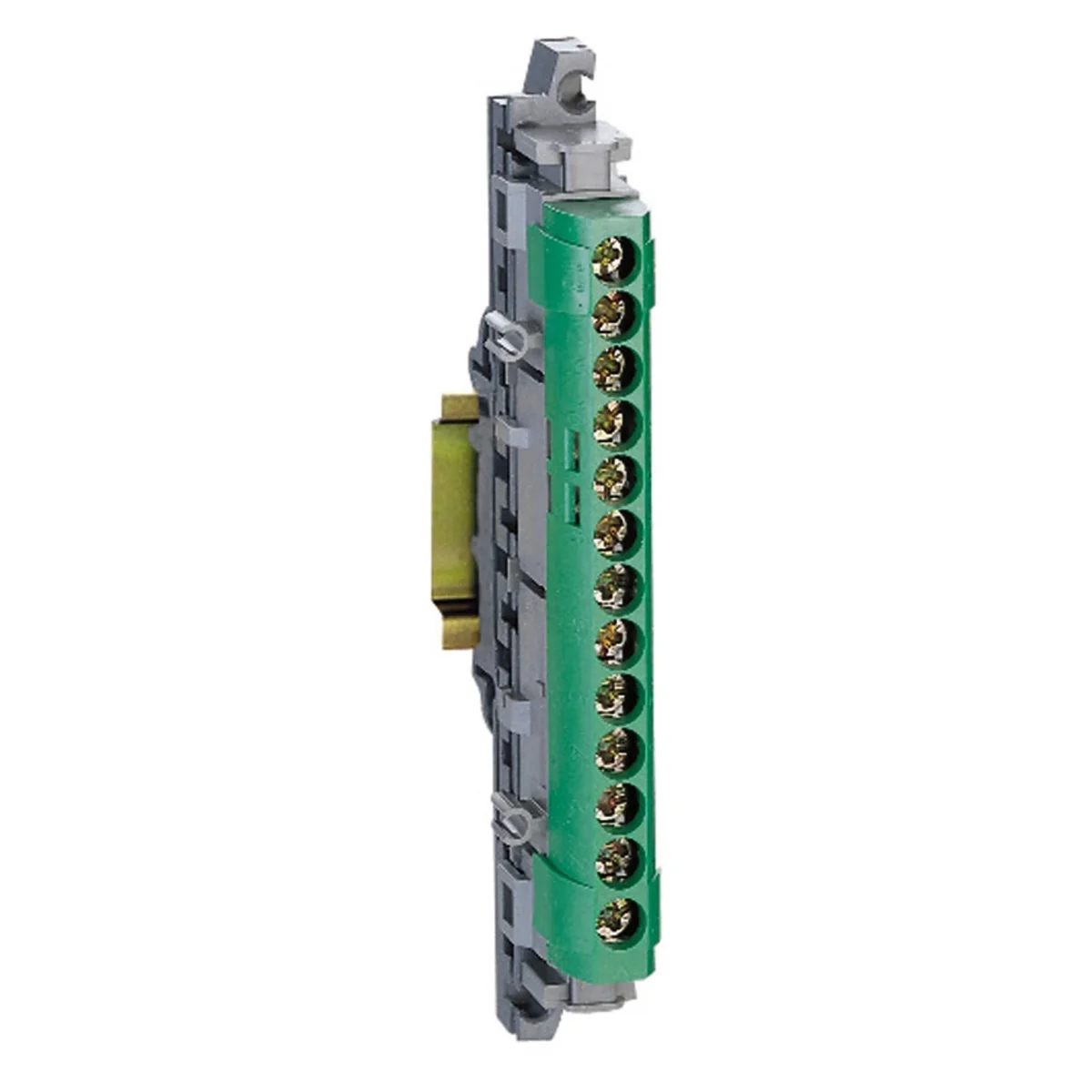

Click on the photo to enlarge

Manufacturer: LEGRAND

Installation: On the TH-35 rail

See full description

zł

gross / pcs. (including VAT 23%)

Dostępne up to 4 weeks

On request

Choose your wholesaler

Choose

Quantity pcs. (multiplicity: 1 )

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Terminal blocks - insulated
For use with modular switchboards: Nedbox, RWN, Ekinoxe, Ekinoxe TX, , RN 55
Compliant with PN-EN 60998-2-1
Supplied with screws removed
Load capacity :
100 A max. - 400 V~ power supply: 25 mm2
80 A max. - 400 V~ power supply: 16 mm2
Screw terminals

IP2x terminal blocks
Colour: green
Power supply - number of terminals 6-25 mm2: 1
Outlets - number of terminals 1.5-16 mm2: 12
Length: 113 mm

Technical data

Installation

On the TH-35 rail

PKWIU

27.12.40.0

Other technical data

Number of poles

1
Connection type

Screwing
Number of inputs

1
Suitable for solid conductors

Yes
Suitable for fine strand conductors

Yes
Suitable for extra fine-strand conductors

No
Conductor cross section, input

6 ... 25 mm²
Contact safe

Yes
Width

113 mm

Nominal current

90 A
Mounting method

DIN rail
Number of outputs

12
Suitable for stranded conductors

Yes
Suitable for fine strand conductors without cable end sleeve

No
Suitable for extra fine-strand conductors without cable end sleeve

No
Conductor cross section, output

1.5 ... 16 mm²
Height

30 mm
Depth

16 mm

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	10 pcs.	120 pcs.	1200 pcs.
Weight (kg)	0,683	8,868	88,680
Volume (m3)	0,001	0,019	0,388
Width (m)	0,101	0,300	1,200
Length (m)	0,088	0,160	0,323
Depth (m)	0,148	0,400	1,000
