COMPACT installation terminal block 5-way 6mm2 transparent 15 pcs. 221-615
local index:
TEB439WAGO
Catalog No:
221-615
EAN code:
4055143715478
Price:
20,69 €
gross / pkg.
(including VAT 23%)
1,38 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

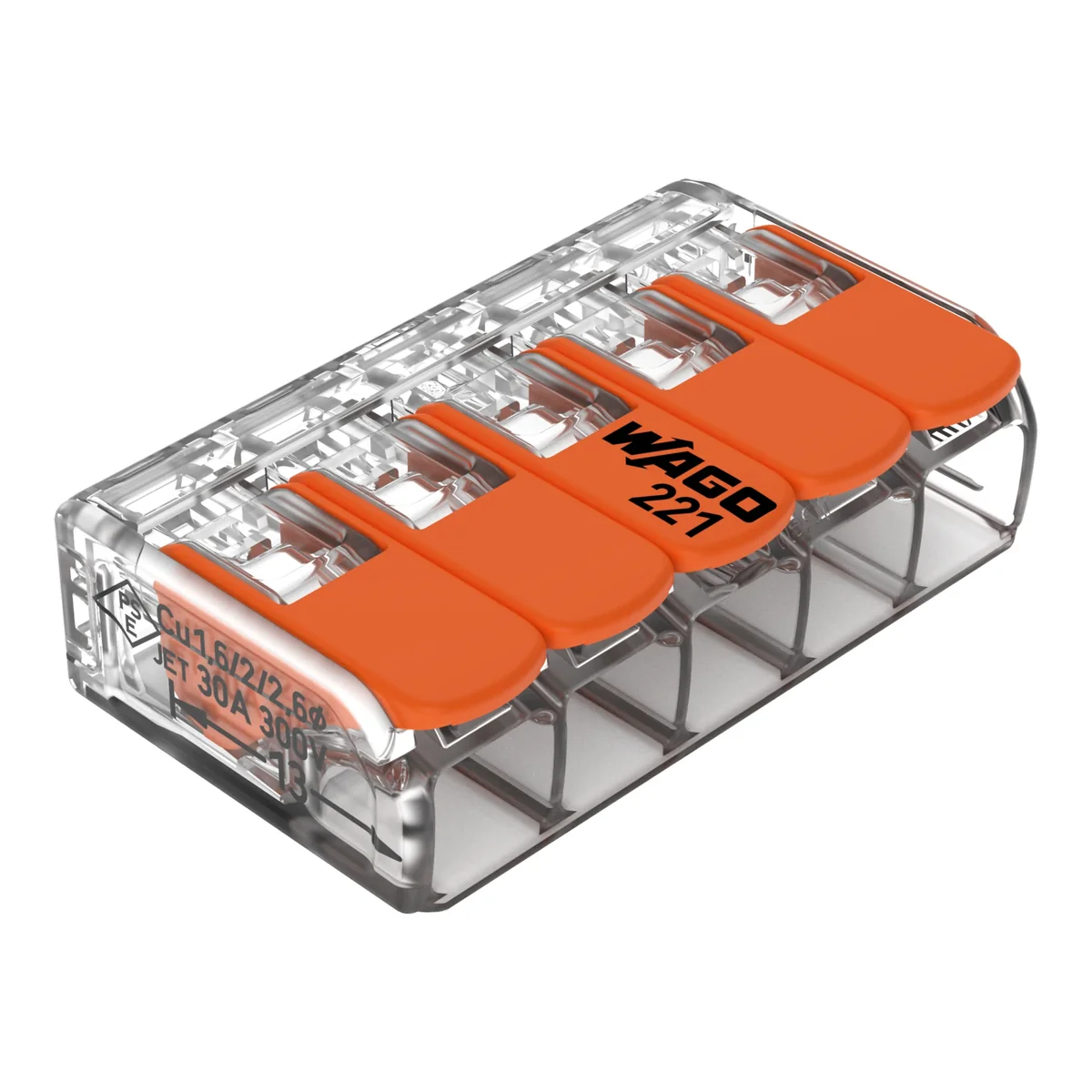

COMPACT installation terminal block 5-way 6mm2 transparent 15 pcs.
Technical data
-

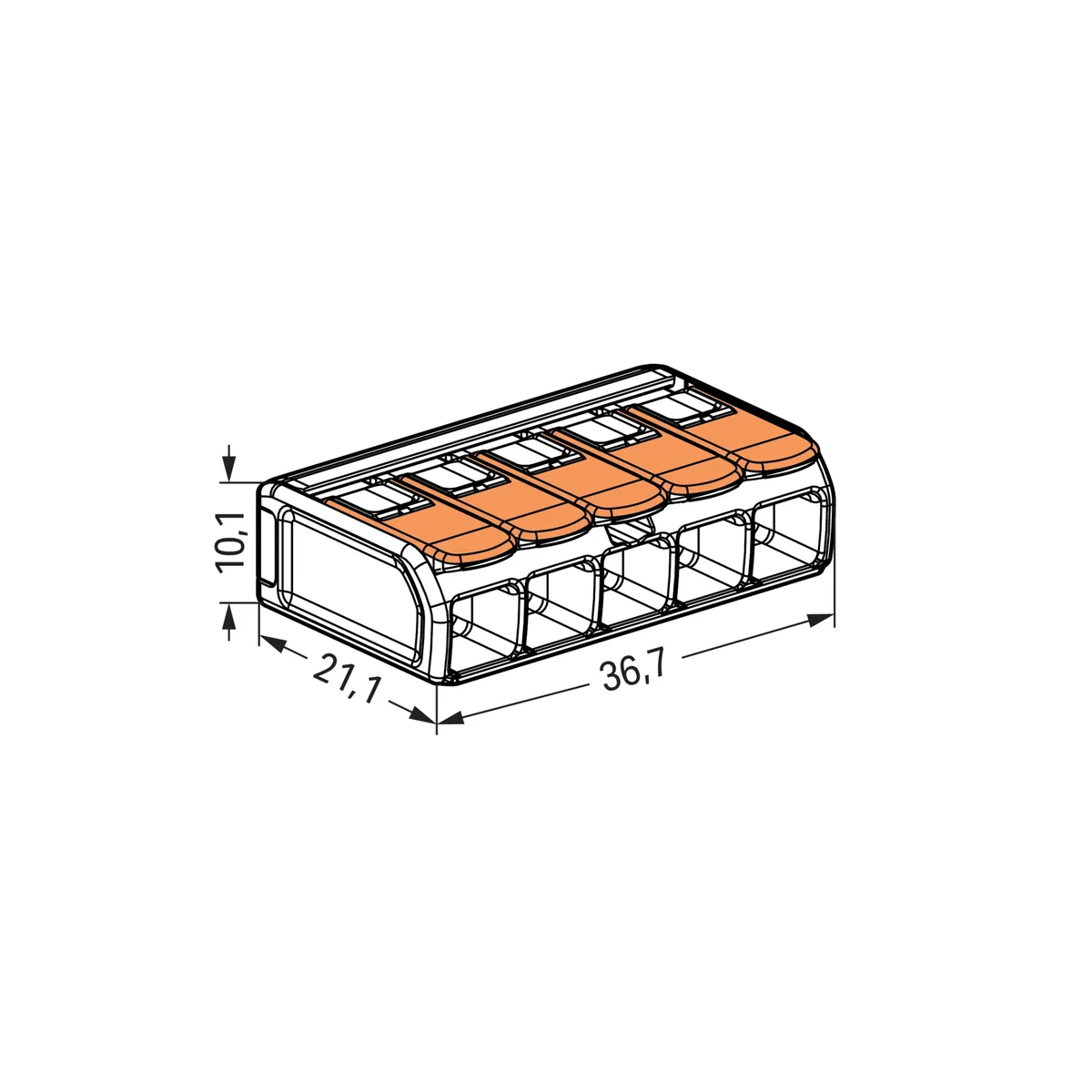

Depth [mm]21.1
-
Number of potentials1
-
Rated voltage [V]450
-
Rated current [A]41
-
Family221
-
Width [mm]36.7
-
Weight [g]7.1
-
Rated impulse voltage [kV]4
-
Flammability classV2
-
Clamping techniqueCAGE CLAMP®
-
Overvoltage categoryIII
-
MaterialPC
-
Fire load [MJ]0.138
-
Clamp typeLever
-
Degree of contamination2
-
Pieces in the package15
-
Height [mm]10.1
-
Number of connectors5
-
Suitable cross sections [mm²]0.5 0.75 1 1.5 2.5 4 6
-
Wire stripping length [mm]12-14
Other technical data
-
Number of clamp positions5
-
With operation leverYes
-
TransparentYes
-
Nominal current41 A
-
Suitable for flexible conductorsYes
-
Conductor cross section flexible (fine-strand) with cable end sleeve0.5 ... 6 mm²
-
AWG-range10 ... 20
-
Nominal cross section0.5 ... 6 mm²
-
ColourColourless
-
Nominal voltage450 V
-
Suitable for solid conductorsYes
-
Suitable for multi-wire conductorsYes
-
Conductor cross section solid (solid, stranded)0.5 ... 6 mm²
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 10 pkg. |
| Weight (kg) | 1,299 |
| Volume (m3) | 0,004 |
| Width (m) | 0,170 |
| Length (m) | 0,220 |
| Depth (m) | 0,110 |
