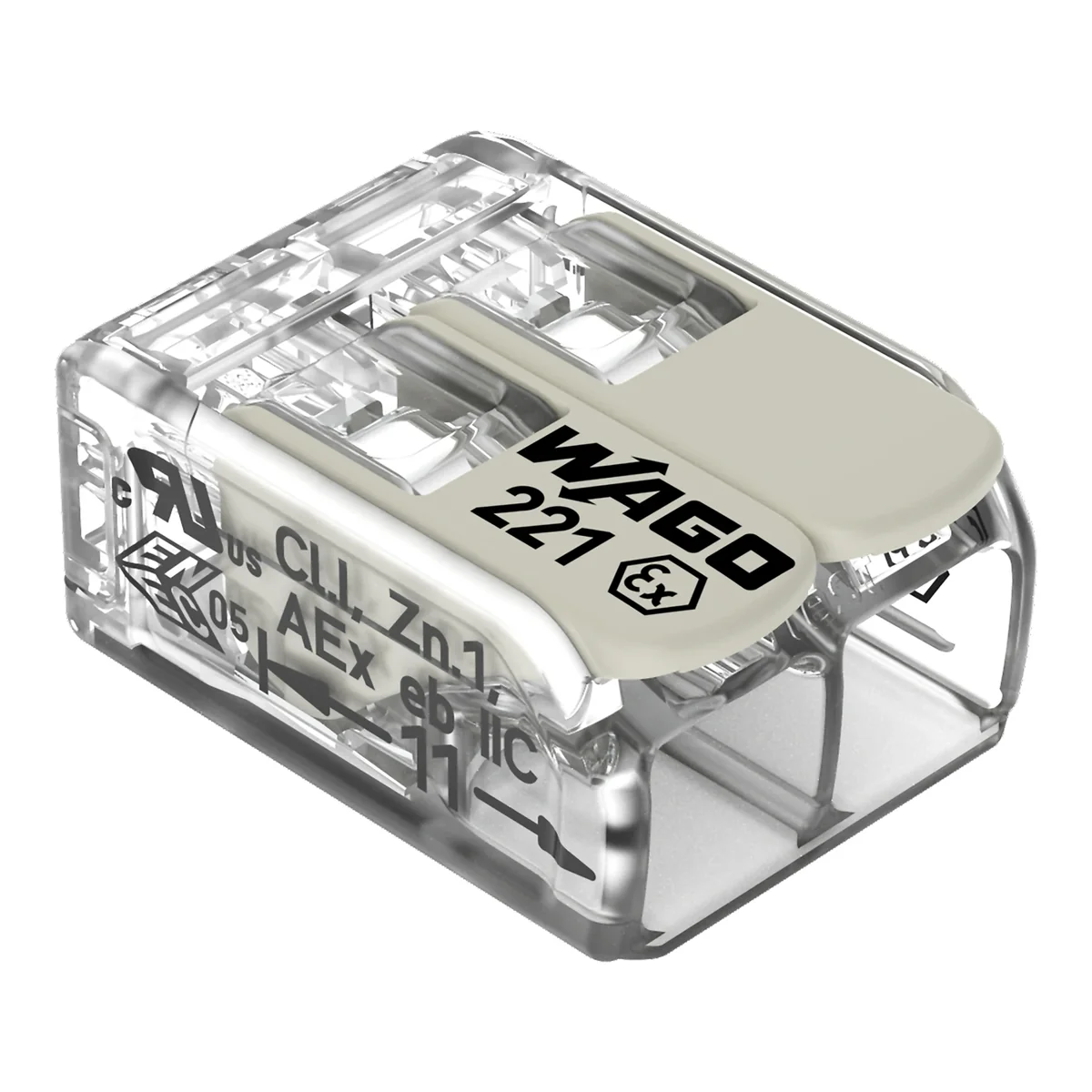

COMPACT installation terminal block 2-way 4mm2 transparent 100 pcs. 221-482

Indice locale:
TEB216WAGO
Numero di catalogo:
221-482
Codice EAN:
4055143837422
Produttore: WAGO ELWAG
Suitable cross sections [mm²]: 0.14| 0.25| 0.34| 0.5| 0.75| 1 | 1.5| 2.5| 4
Prezzo:
298,21 zł
gross / conf.
(inclusa IVA 23%)
2 settimane
Su ordinazione
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

COMPACT 2-way installation terminal block 4mm2 100 pcs.

Dati tecnici

  • Suitable cross sections [mm²]
    0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4

Altri dati tecnici

  • Number of clamp positions
    2
  • With operation lever
    Yes
  • Transparent
    Yes
  • Nominal voltage
    440 V
  • Suitable for flexible conductors
    Yes
  • Conductor cross section flexible (fine-strand) with cable end sleeve
    0.14 ... 4 mm²
  • Nominal cross section
    0.2 ... 4 mm²
  • Colour
    Colourless
  • Suitable for solid conductors
    Yes
  • Nominal current
    24.5 A
  • Suitable for multi-wire conductors
    Yes
  • Conductor cross section solid (solid, stranded)
    0.2 ... 4 mm²

Dettagli del produttore

  • Produttore
    WAGO GmbH & Co. KG
  • Indirizzo
    32423 Minden Hansastraße 27 Niemcy

Imballaggio sfuso

Una specie di pacchetto Karton
Quantità 10 conf.
Peso (kg) 1,962
Volume (m3) 0,004
Larghezza (m) 0,170
Lunghezza (m) 0,220
Profondità (m) 0,110
