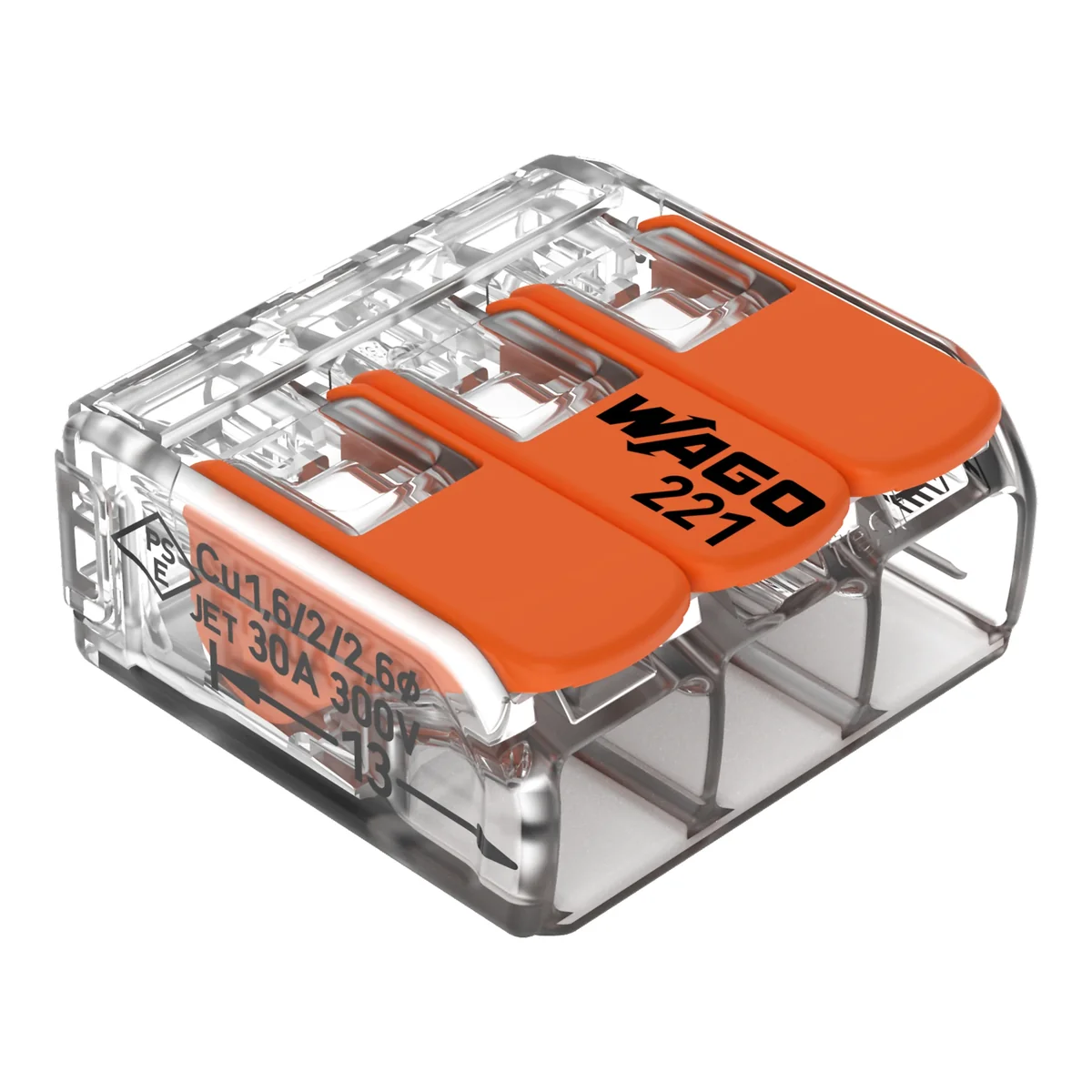

COMPACT installation connector for transparent wires 221-613

Name: COMPACT installation connector for transparent wires
Brand: WAGO ELWAG
SKU: TEB438WAGO
Price: 112.24 PLN
Availability: InStock

Lokaler Index:

TEB438WAGO

Katalognummer:

221-613

EAN-Code:

4055143715416

COMPACT installation connector for transparent wires

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: WAGO ELWAG

Depth [mm]: 21.1

Overvoltage category: III

Color: Transparent | Orange

Siehe vollständige Beschreibung

Preis:

112,24 zł

gross / pack

(inklusive MwSt 23%)

3,74 zł gross/stk.

Zugänglich 28 pack

Menge pack

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

COMPACT installation connector for all types of cables

Benefits:

Easy to use: lift the lever, insert the cable, lower the lever
3-wire version
Comfortable installation of cables from 0.5 to 6 mm²
Time saving for installers and device manufacturers
Quick connection high-power devices
Safe when installing long cables with larger cross-sections
Mounting adapter for standard-compliant installation

Technische Daten

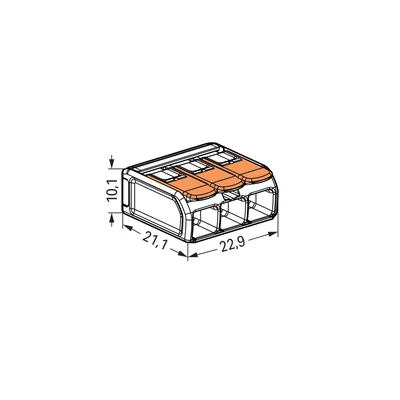

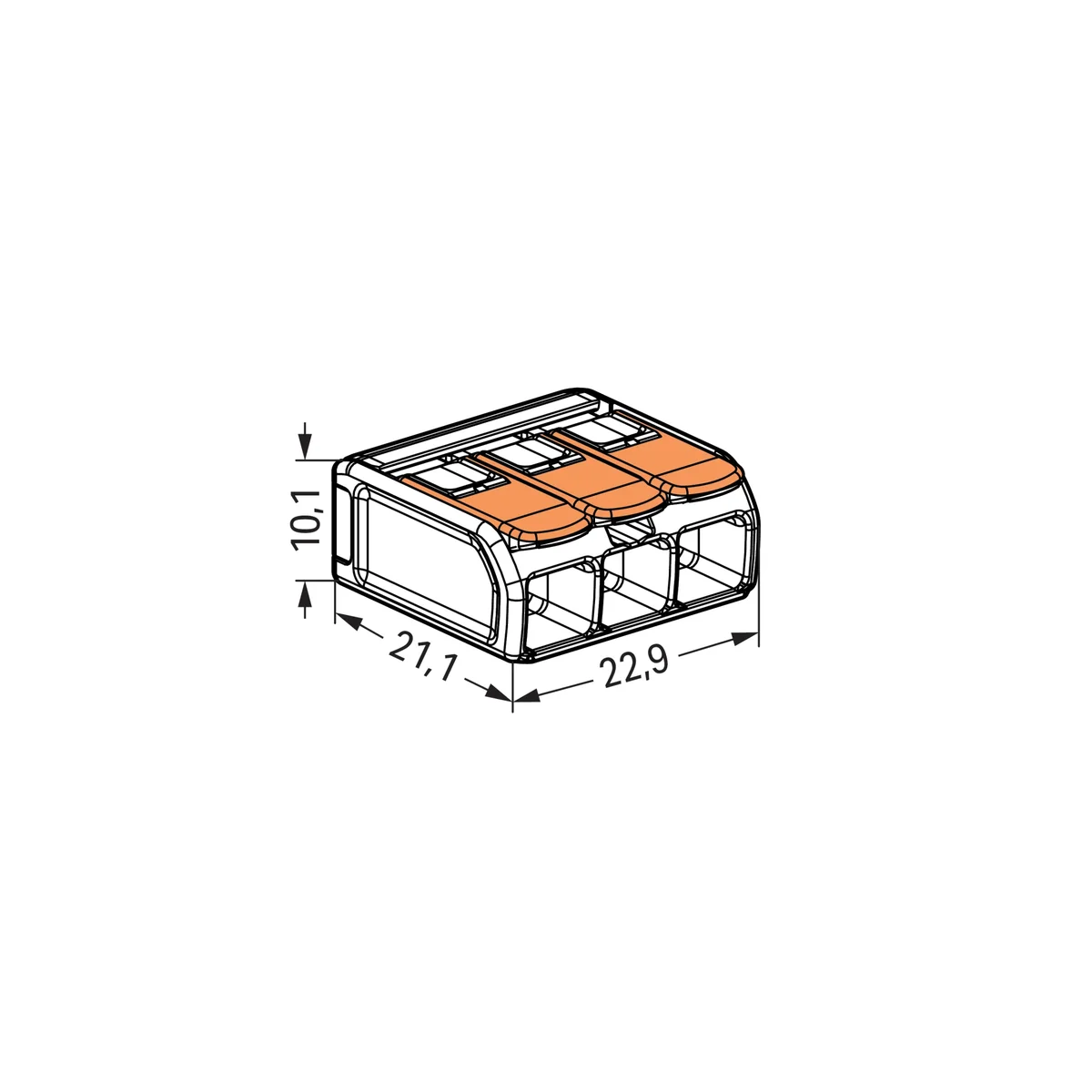

Depth [mm]

21.1
Color

Transparent Orange
Material

PC
Fire load [MJ]

0.094
Clamp type

Lever
Degree of contamination

2
Pieces in the package

thirty
Height [mm]

10.1
Number of connectors

3
Suitable cross sections [mm²]

0.5 0.75 1 1.5 2.5 4 6
Wire stripping length [mm]

12-14

Overvoltage category

III
Number of potentials

1
Rated voltage [V]

450
Rated current [A]

41
Family

221
Width [mm]

22.9
Weight [g]

4
Rated impulse voltage [kV]

4
Flammability class

V2
Clamping technique

CAGE CLAMP®

Weitere technische Daten

Number of clamp positions

3
With operation lever

Yes
Transparent

Yes
Nominal voltage

450 V
Suitable for flexible conductors

Yes
Conductor cross section flexible (fine-strand) with cable end sleeve

0.5 ... 6 mm²

Nominal cross section

0.5 ... 6 mm²
Colour

Colourless
Suitable for solid conductors

Yes
Nominal current

41 A
Suitable for multi-wire conductors

Yes
Conductor cross section solid (solid, stranded)

0.5 ... 6 mm²
