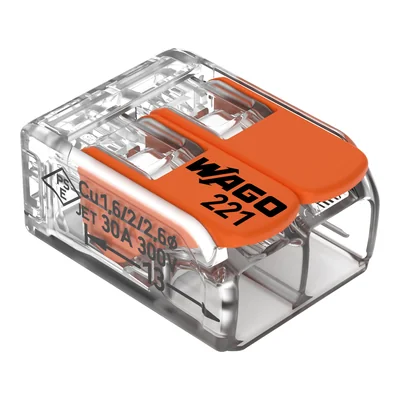

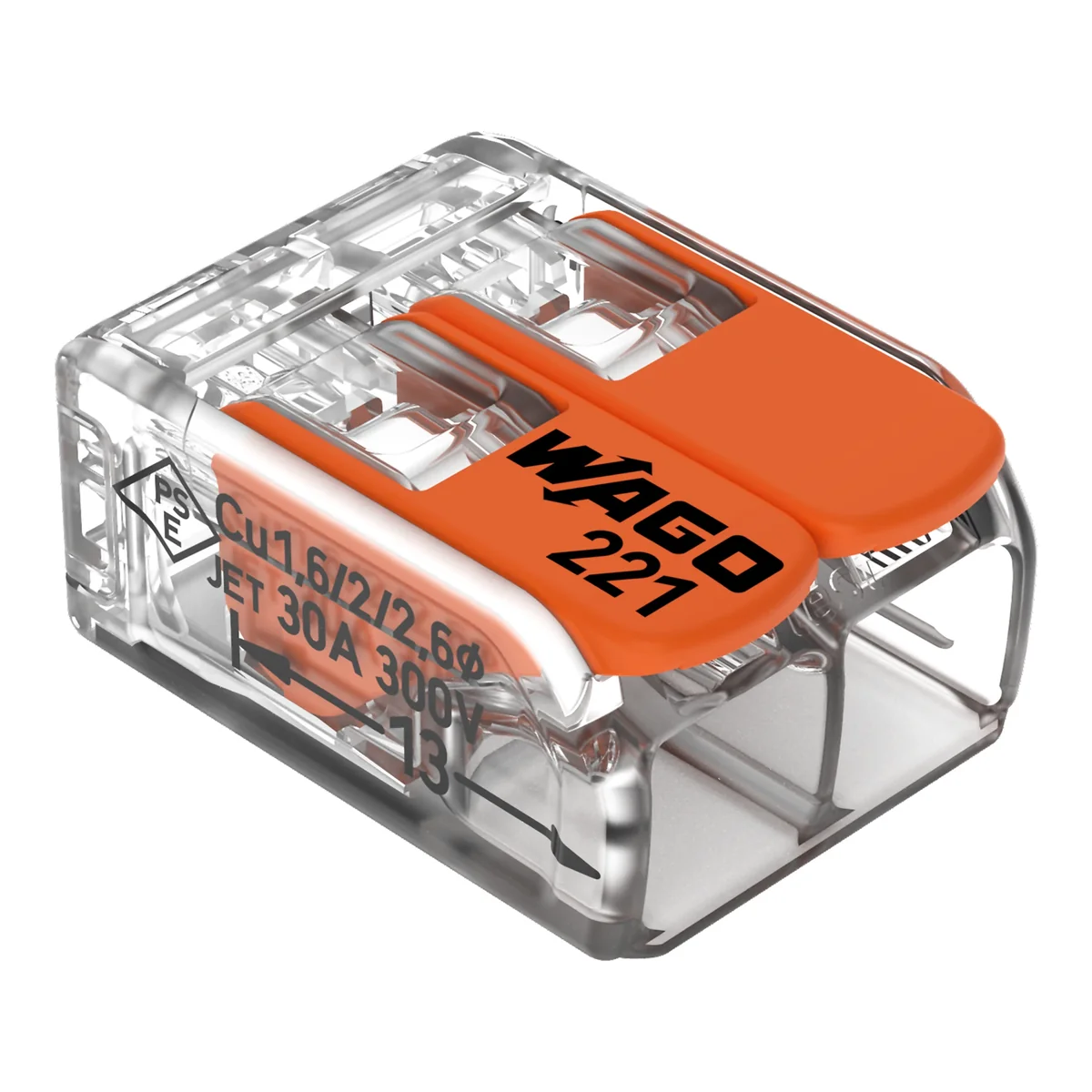

COMPACT 2-way installation terminal block 6mm2 transparent 50 pcs 221-612

local index:
TEB437WAGO
Catalog No:
221-612
EAN code:
4055143704168
Manufacturer: WAGO ELWAG

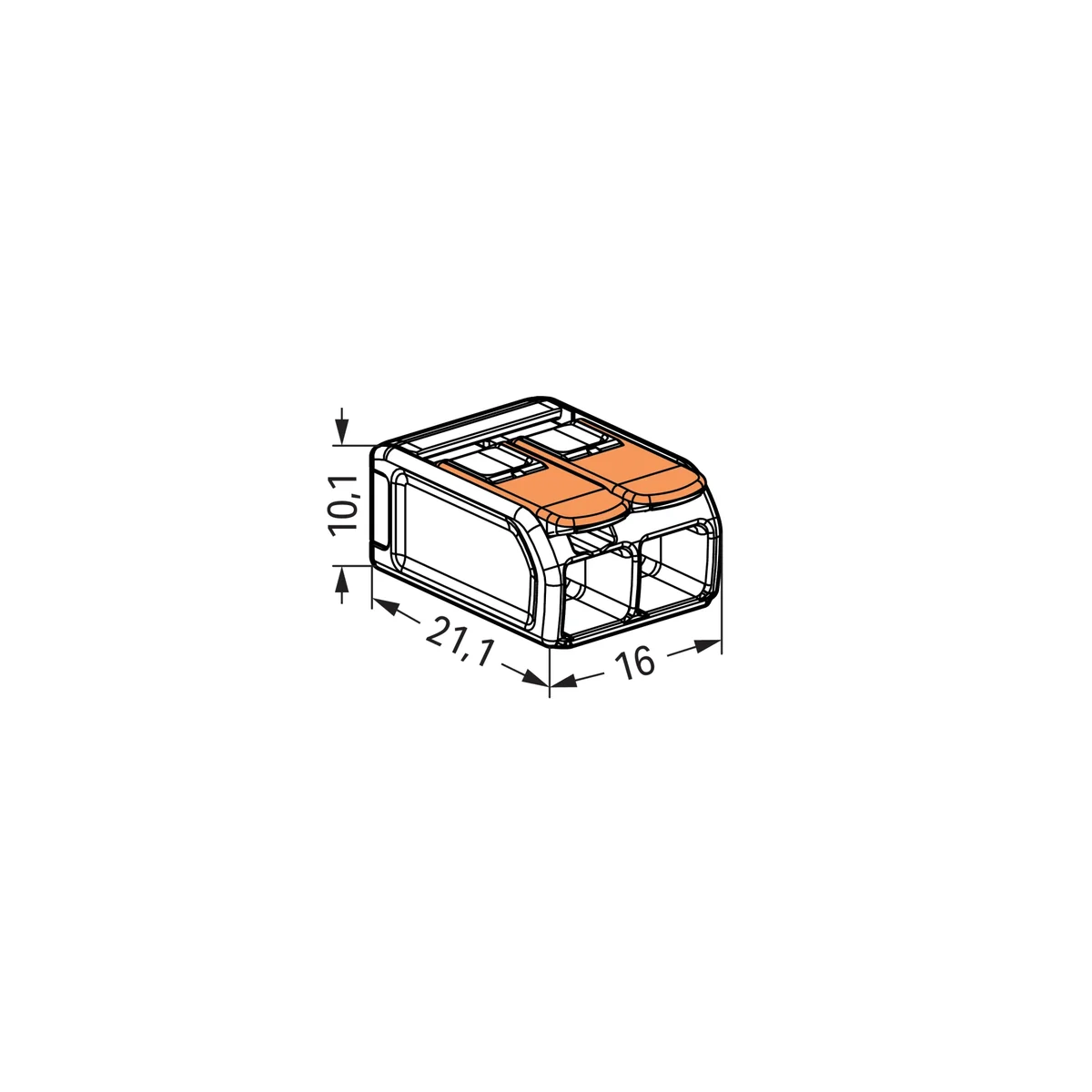

Depth [mm]: 21.1
Number of terminals: 2
Color: Transparent
Price:
39,50 €
gross / pkg.
(including VAT 23%)
0,79 € gross/pcs.
Delivery in 3h
Accessible 21 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

COMPACT installation connector for all types of cables

Benefits:


  • Easy to use: lift the lever, insert the cable, lower the lever

  • 3-wire version

  • Comfortable assembly of wires with a cross-section of 0.5 to 6 mm²

  • Saves time for fitters and device manufacturers

  • Quickly connect large-capacity devices power

  • Safety when installing long cables with larger cross-sections

  • Mounting adapter for mounting in accordance with standards

Technical data

  • Depth [mm]
    21.1
  • Color
    Transparent
  • Number of potentials
    1
  • Rated voltage [V]
    450
  • Nominal cross-section [mm²]
    6
  • Pieces in the package
    50
  • Height [mm]
    10.1
  • Suitable cross sections [mm²]
    0.5 0.75 1 1.5 2.5 4 6
  • Number of terminals
    2
  • Lever color
    Orange
  • Maximum ambient temperature [°C]
    105
  • Rated current [A]
    41
  • Width [mm]
    16
  • Wire connection technique
    CAGE CLAMP
  • Rated impulse voltage [kV]
    4

Other technical data

  • Number of clamp positions
    2
  • With operation lever
    Yes
  • Nominal voltage
    450 V
  • Suitable for solid conductors
    Yes
  • Suitable for multi-wire conductors
    Yes
  • AWG-range
    20 ... 10
  • Nominal cross section
    0.5 ... 6 mm²
  • Colour
    Przezroczysty (transparentny)
  • Nominal current
    41 A
  • Suitable for flexible conductors
    Yes
  • Conductor cross section solid (solid, stranded)
    0.5 ... 6 mm²

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 1,742
Volume (m3) 0,004
Width (m) 0,170
Length (m) 0,220
Depth (m) 0,110
