CM-D Module with diode 14x 1N4007 289-111 289-111

Name: CM-D Module with diode 14x 1N4007 289-111
Brand: WAGO ELWAG
SKU: TEB525WAGO
Price: 154.84 PLN
Availability: BackOrder

local index:

TEB525WAGO

Catalog number:

289-111

EAN code:

4045454192761

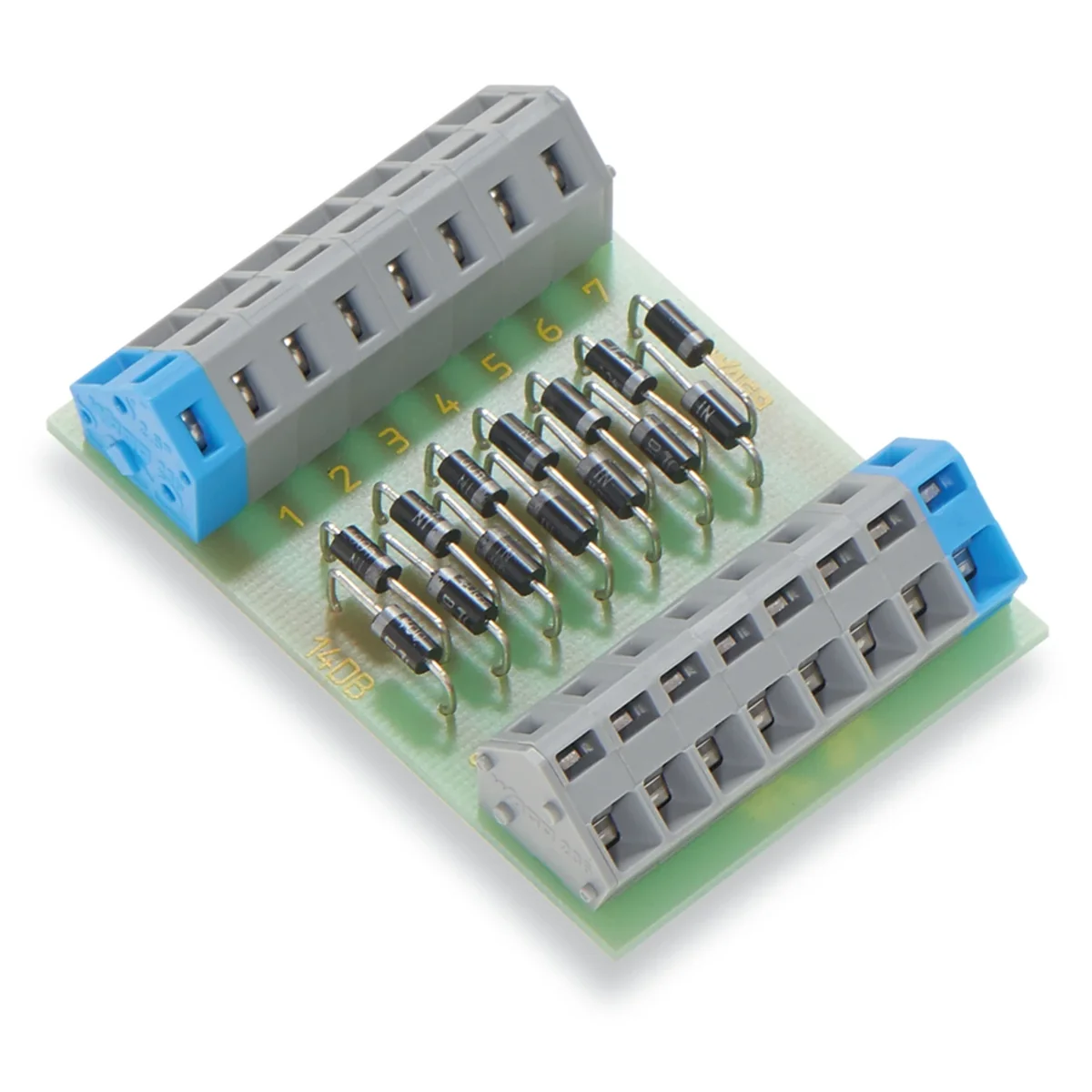

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

154,84 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Rated voltage

250 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

14
Mounting method

Other
Operating temperature

-25 ... 40 °C
Height

65.5 mm
Closing plate required

Yes
Type of component

Diode

Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Rated current In

1 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Internally connected stages

No
Material insulation body

Thermoplastic
Width

42.5 mm
Depth

32 mm
Colour

Other
