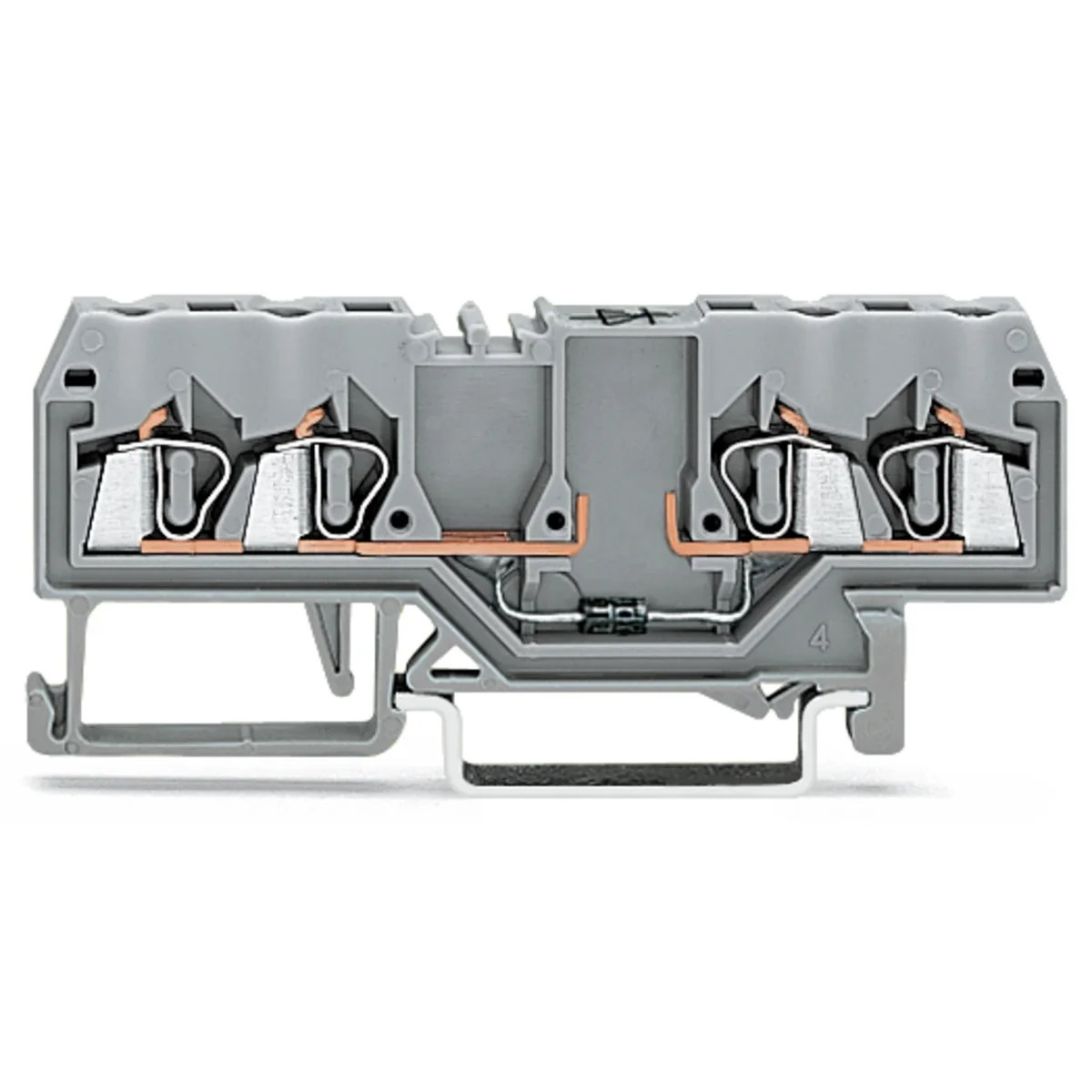

CAGE CLAMP 2.5mm2 4-wire connector with gray diode 280-815/281-410
local index:
TES096WAGO
Catalog No:
280-815/281-410
EAN code:
4050821275473
Price:
2,24 €
gross / pcs.
(including VAT 23%)
Last lowest price:
6,27 € gross
Price history for this product
1. 2,24 € gross / pcs.
2. Last lowest price:
6,27 €
3. Base price:
6,52 €
-66%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
6,52 € gross
-66%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

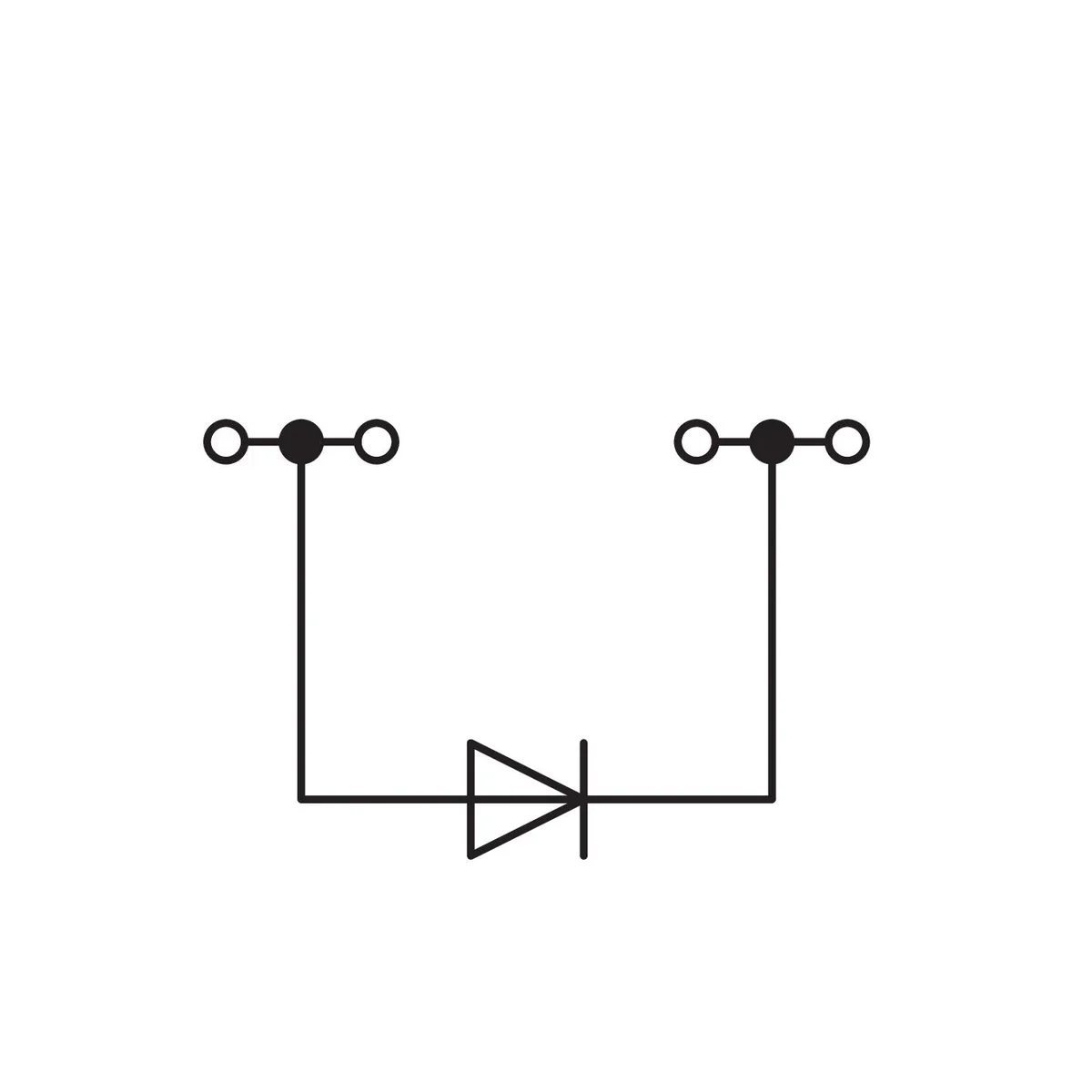

Diode connectors of this type have been designed for individual creation of diode systems, such as systems for controlling signaling lamps or collective fault signaling.
Technical data
-
Number of terminals4
-
Number of potentials1
-
Blocking voltage [V]1000
-
Rated current [A]0.5
-
Wire connection techniqueCAGE CLAMP
-
ColorGray
-
InstallationOn the TH35 rail
-
Rated voltage [V]250
-
Nominal cross-section [mm²]2.5
-
Dimension [mm]75x28
Other technical data
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Rated current In0.5 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level4
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5 mm
-
Length75 mm
-
ColourGrey
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Rated voltage250 V
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Internally connected stagesNo
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu28 mm
-
Closing plate requiredYes
-
Type of componentDiode
Bulk packaging
| A kind of package | Karton |
| Quantity | 100 pcs. |
| Weight (kg) | 1,006 |
| Volume (m3) | 0,002 |
| Width (m) | 0,094 |
| Length (m) | 0,221 |
| Depth (m) | 0,045 |
