CAGE CLAMP® 1-Conductor Plug, Gray 231-616 231-616

Name: CAGE CLAMP® 1-Conductor Plug, Gray 231-616
Brand: WAGO ELWAG
SKU: TEB494WAGO
Price: 48.62 PLN
Availability: BackOrder

local index:

TEB494WAGO

Catalog number:

231-616

EAN code:

4044918258777

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

48,62 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Type of connection

Printed circuit board to cable
Number of poles

16

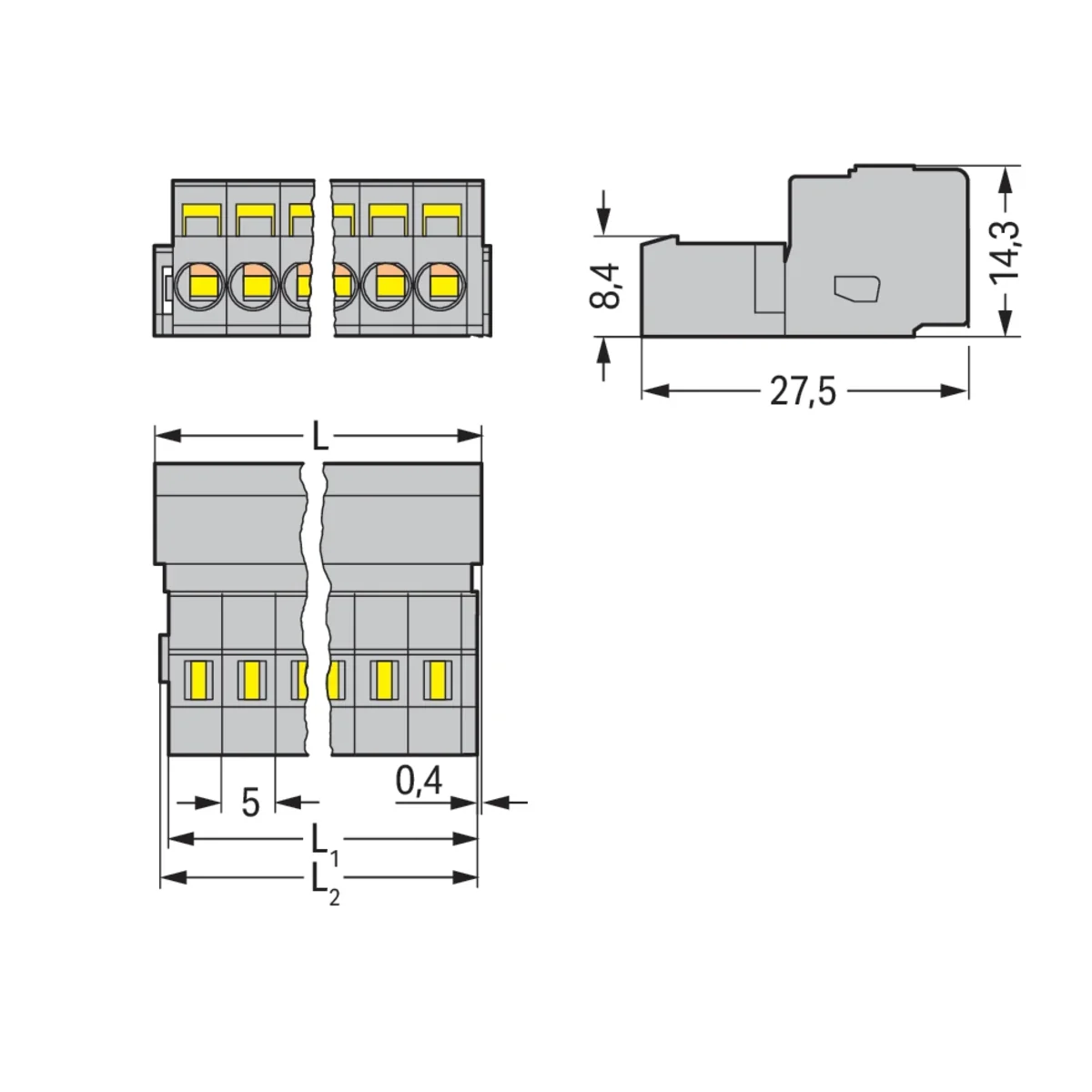

Modular spacing contacts

5 mm
Angle contact/conductor connection

180° (horizontal)
Rated voltage

320 V
Over voltage category

III
Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Type of electric connection

Spring clamp connection
Material of contact surface

Tin
Material insulation body

Thermoplastic
Coating housing

Uncoated
With protective conductor

No
Degree of protection (IP), mounted

IP10

Contact type

Pin
Number of plug-in contact rows

1
Modular spacing connections

5 mm
Rated current In

12 A
Rated surge voltage

4 kV
Pollution degree

2
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Connectable cable type

Tubular cable
Material contact

Other copper alloys
Housing material

Plastic
Housing colour

Grey
Operating temperature

-60 ... 100 °C
