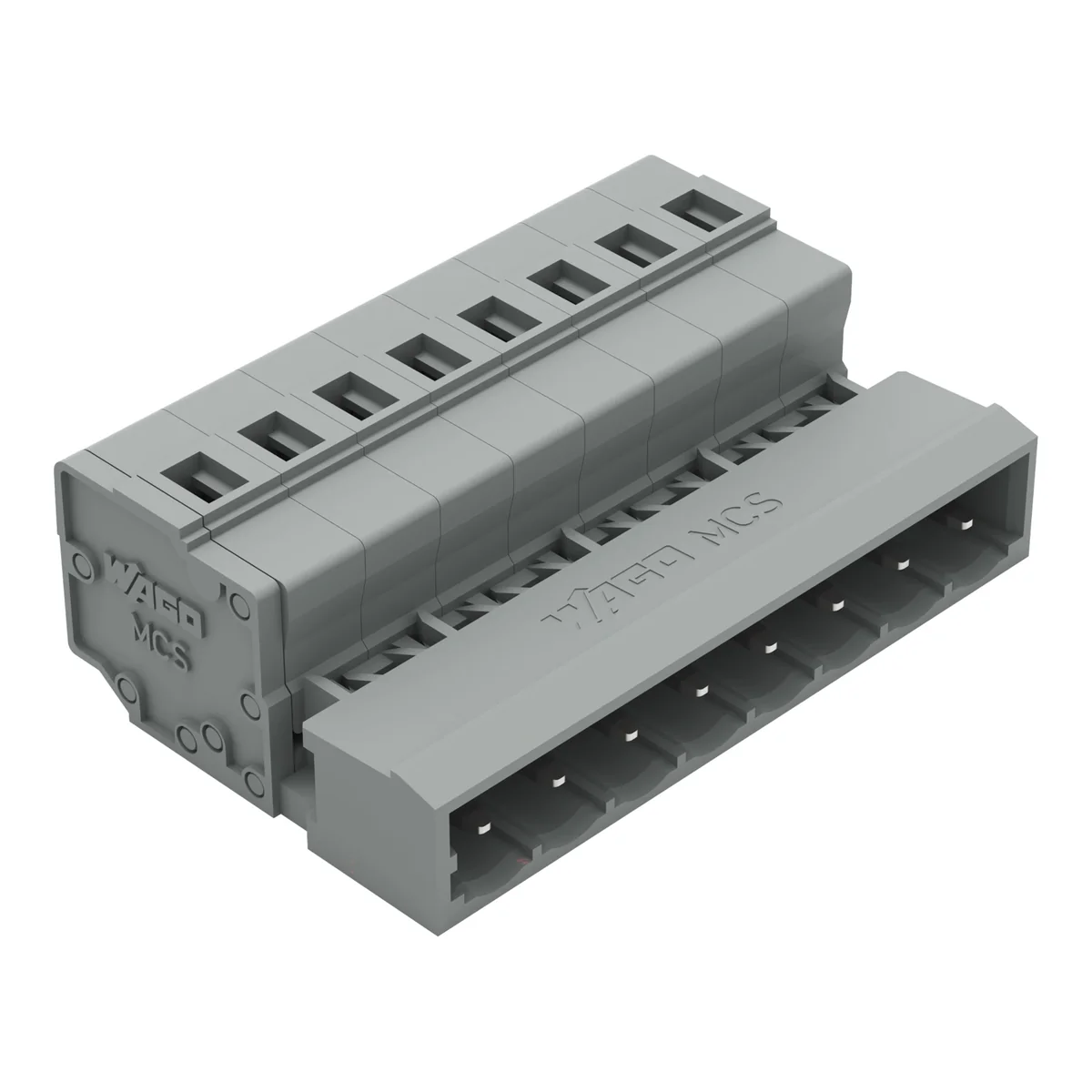

CAGE CLAMP® 1-Conductor Plug, Gray 231-608 231-608

Lokaler Index:
TEB495WAGO
Katalognummer:
231-608
EAN-Code:
4044918257749
Hersteller: WAGO ELWAG
Preis:
27,06 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 4 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Technische Daten

Weitere technische Daten

  • Type of connection
    Printed circuit board to cable
  • Number of poles
    8
  • Modular spacing contacts
    5 mm
  • Angle contact/conductor connection
    180° (horizontal)
  • Rated voltage
    320 V
  • Over voltage category
    III
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Type of electric connection
    Spring clamp connection
  • Material of contact surface
    Tin
  • Material insulation body
    Thermoplastic
  • Coating housing
    Uncoated
  • With protective conductor
    No
  • Degree of protection (IP), mounted
    IP10
  • Contact type
    Pin
  • Number of plug-in contact rows
    1
  • Modular spacing connections
    5 mm
  • Rated current In
    12 A
  • Rated surge voltage
    4 kV
  • Pollution degree
    2
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Connectable cable type
    Tubular cable
  • Material contact
    Other copper alloys
  • Housing material
    Plastic
  • Housing colour
    Grey
  • Operating temperature
    -60 ... 100 °C

Hersteller-Details

  • Hersteller
    WAGO GmbH & Co. KG
  • Adresse
    32423 Minden Hansastraße 27 Niemcy

Großpackungen

Eine Art Paket Karton Karton
Menge 50 stk. 50 stk.
Gewicht (kg) 0,755 0,755
Volumen (m3) 0,003 0,003
Breite (m) 0,256 0,256
Länge (m) 0,318 0,318
Tiefe (m) 0,040 0,040
