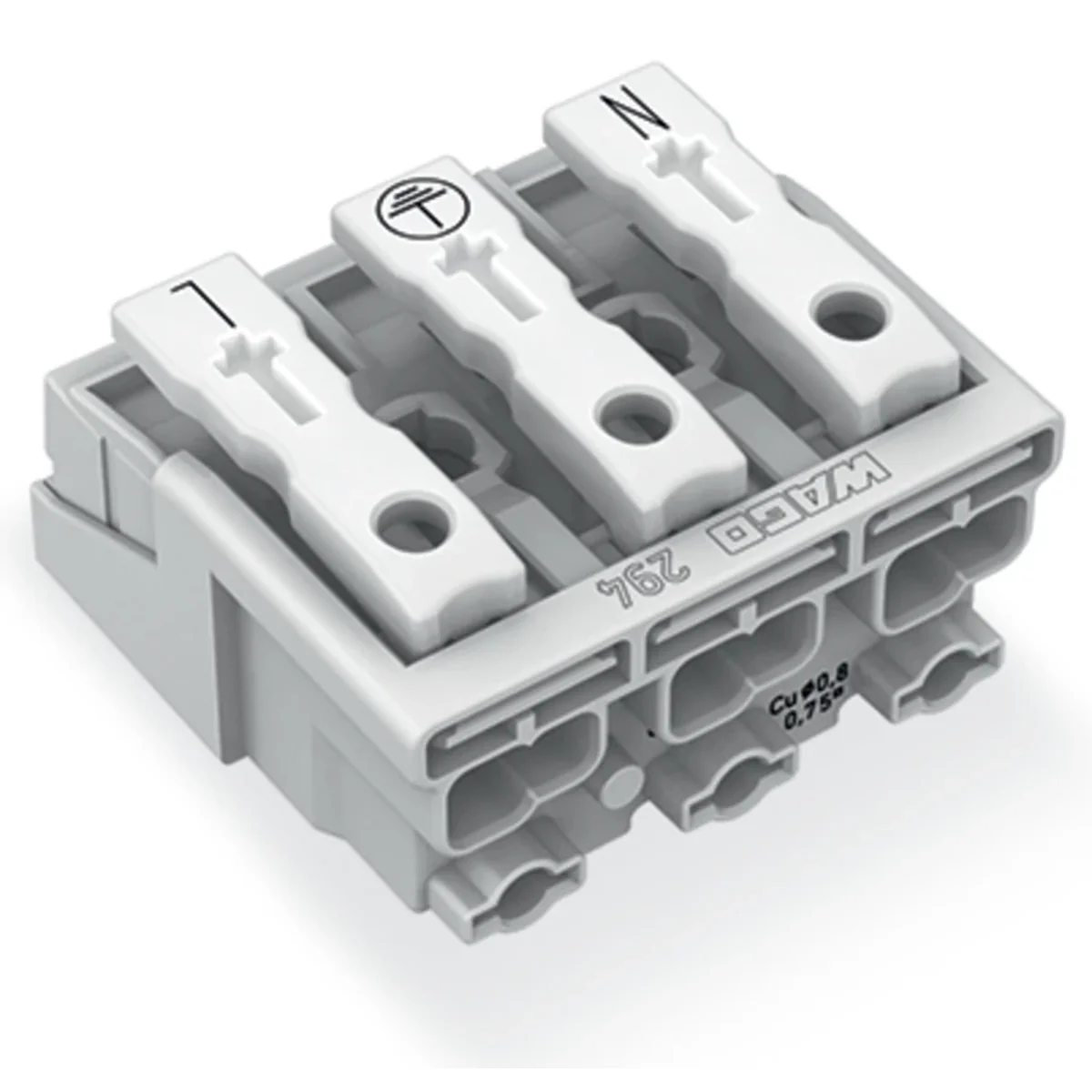

Button power supply connector: external side, white 294-4013 294-4013

Name: Button power supply connector: external side, white 294-4013
Brand: WAGO ELWAG
SKU: TEB479WAGO
Price: 3.81 PLN
Availability: BackOrder

Index local:

TEB479WAGO

Numéro de catalogue:

294-4013

Code EAN:

4050821097662

Button power supply connector: external side, white 294-4013

Cliquer sur la photo pour l'agrandir

Producteur: WAGO ELWAG

Prix:

3,81 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Emballage en vrac

Données techniques

Autres données techniques

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.5 ... 2.5 mm²
Rated voltage

500 V
Type of electrical connection 2

Push-in clamp connection
Number of poles

3
Mounting method

Other
Operating temperature

125 ... 125 °C

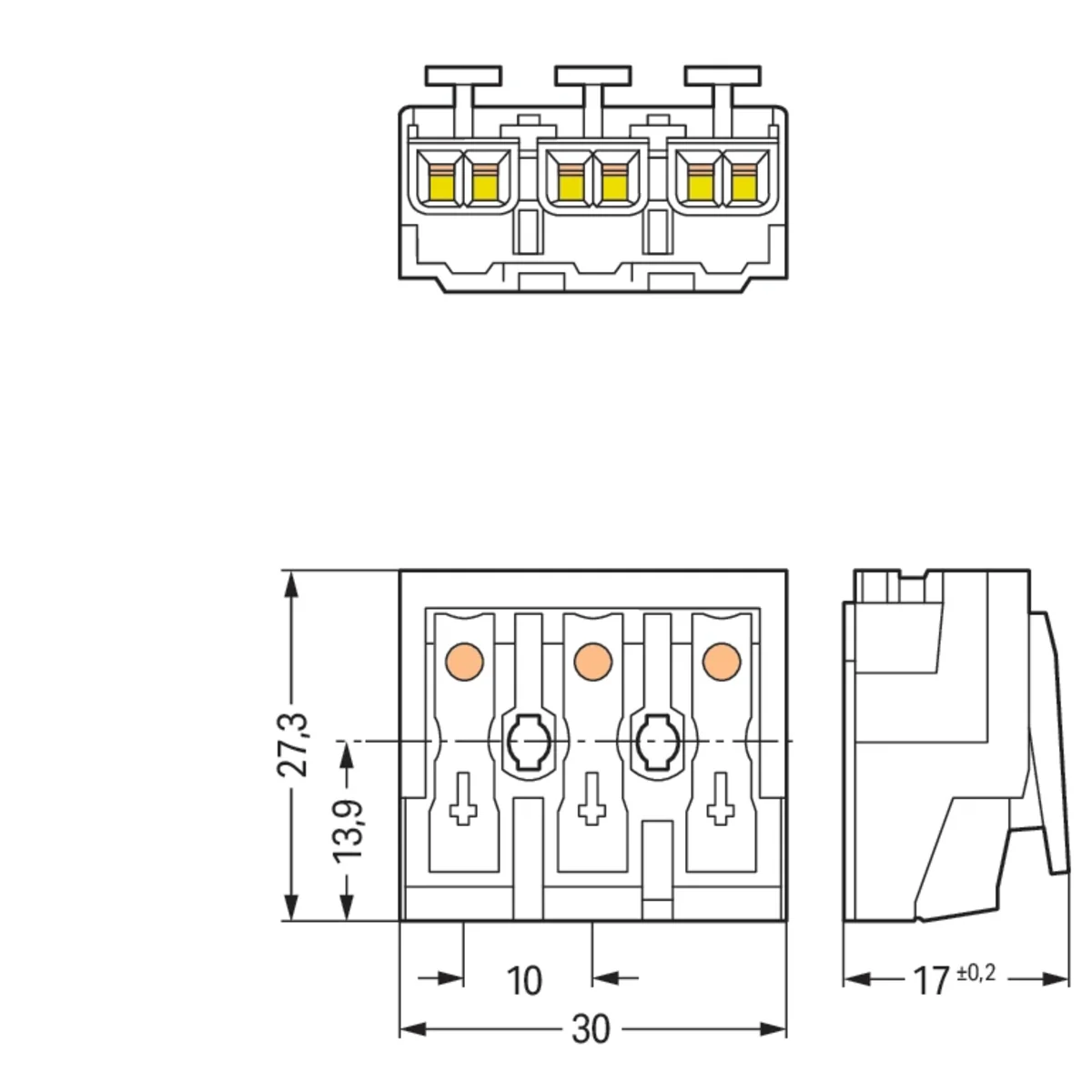

Width/grid dimension

30 mm
Length

27.3 mm
Colour

White

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 2.5 mm²
Connectable conductor cross section solid-core

0.5 ... 2.5 mm²
Rated current In

24 A
Type of electrical connection 1

Spring clamp connection
Connection position

Sideways
Number of clamp positions per pole

2
Material insulation body

Other
Inflammability class of insulation material according to with UL94

V2
Wysokość przy najniższym sposobie montażu

17 mm
Closing plate required

No
Transparent

No
