Branch threaded terminal block AL/CU/ 2, 5-35mm2/ TS 35/ 1 track, 4 holes clamp / VC05-0155 89797009

Name: Branch threaded terminal block AL/CU/ 2, 5-35mm2/ TS 35/ 1 track, 4 holes clamp / VC05-0155
Brand: SIMET
SKU: TES063SIME
Price: 76.65 PLN

Indice locale:

TES063SIME

Numero di catalogo:

89797009

Codice EAN:

5907813227271

Branch threaded terminal block AL/CU/ 2, 5-35mm2/ TS 35/ 1 track, 4 holes clamp / VC05-0155

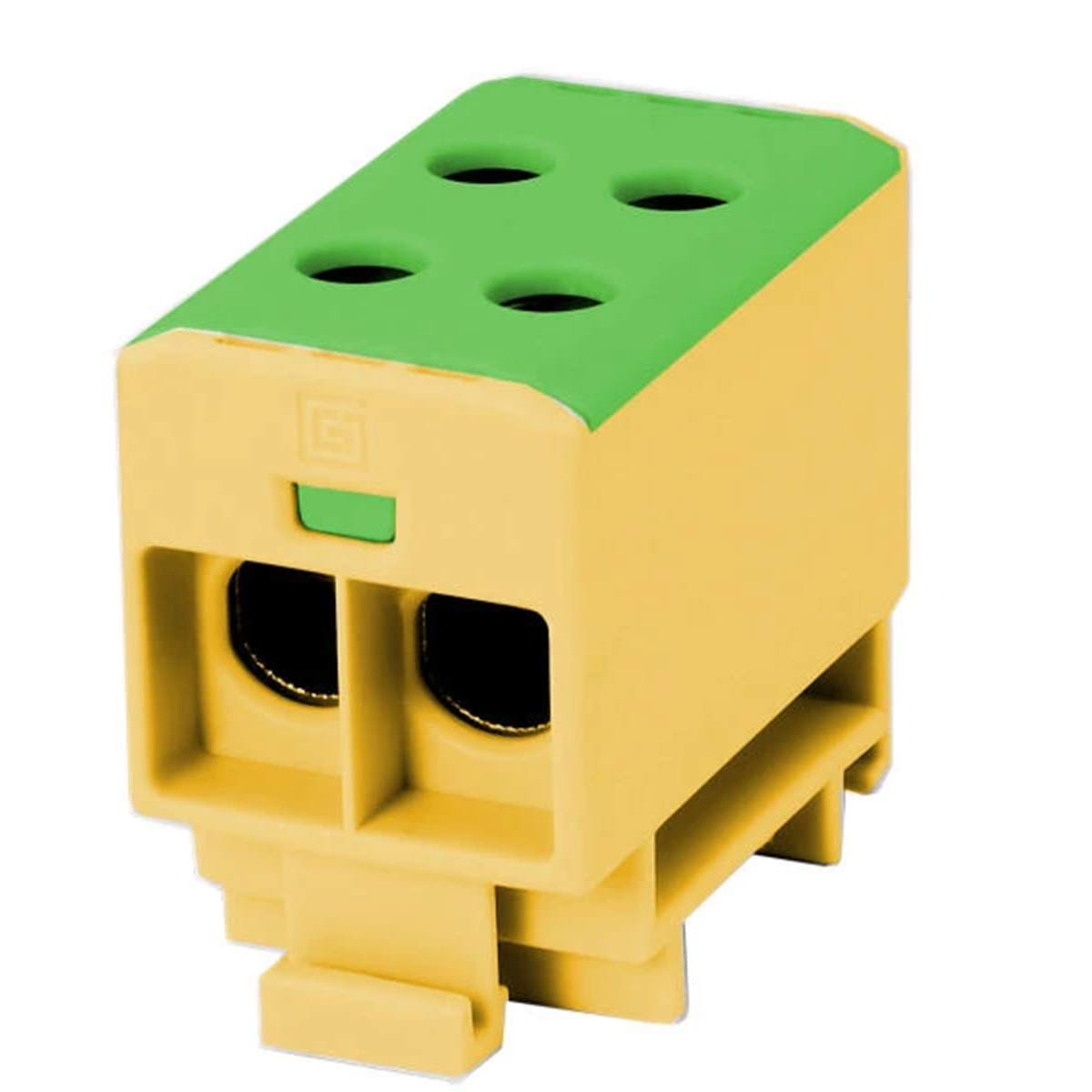

Clicca sulla foto per ingrandire

Produttore: SIMET

Color: Yellow-green

Vedi la descrizione completa

Prezzo:

76,65 zł

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

Esaurito

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore

Descrizione del prodotto

Branch threaded terminal block AL/CU/ 2, 5-35mm2/ TS 35/ 1 track, 4 holes clamp / VC05-0155

Dati tecnici

Color

Yellow-green

PKWIU

27.33.13.0

Altri dati tecnici

Connectable conductor cross section fine-strand without cable end sleeve

2,5 ... 35 mm²
Connectable conductor cross section solid-core

2,5 ... 35 mm²
Rated current In

120 A
Type of electrical connection 1

Screw connection
Connection position

Sideways
Number of clamp positions per level

4
Material insulation body

Thermoplastic
Wysokość przy najniższym sposobie montażu

40 mm
Explosion-tested version 'Ex e'

No
Colour

Green/yellow

Connectable conductor cross section fine-strand with cable end sleeve

0 ... 0 mm²
Connectable conductor cross section multi-wired

2,5 ... 35 mm²
Rated voltage

1000 V
Type of electrical connection 2

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Width/grid dimension

27 mm
Length

46 mm
Closing plate required

No
Internally connected stages

Yes
