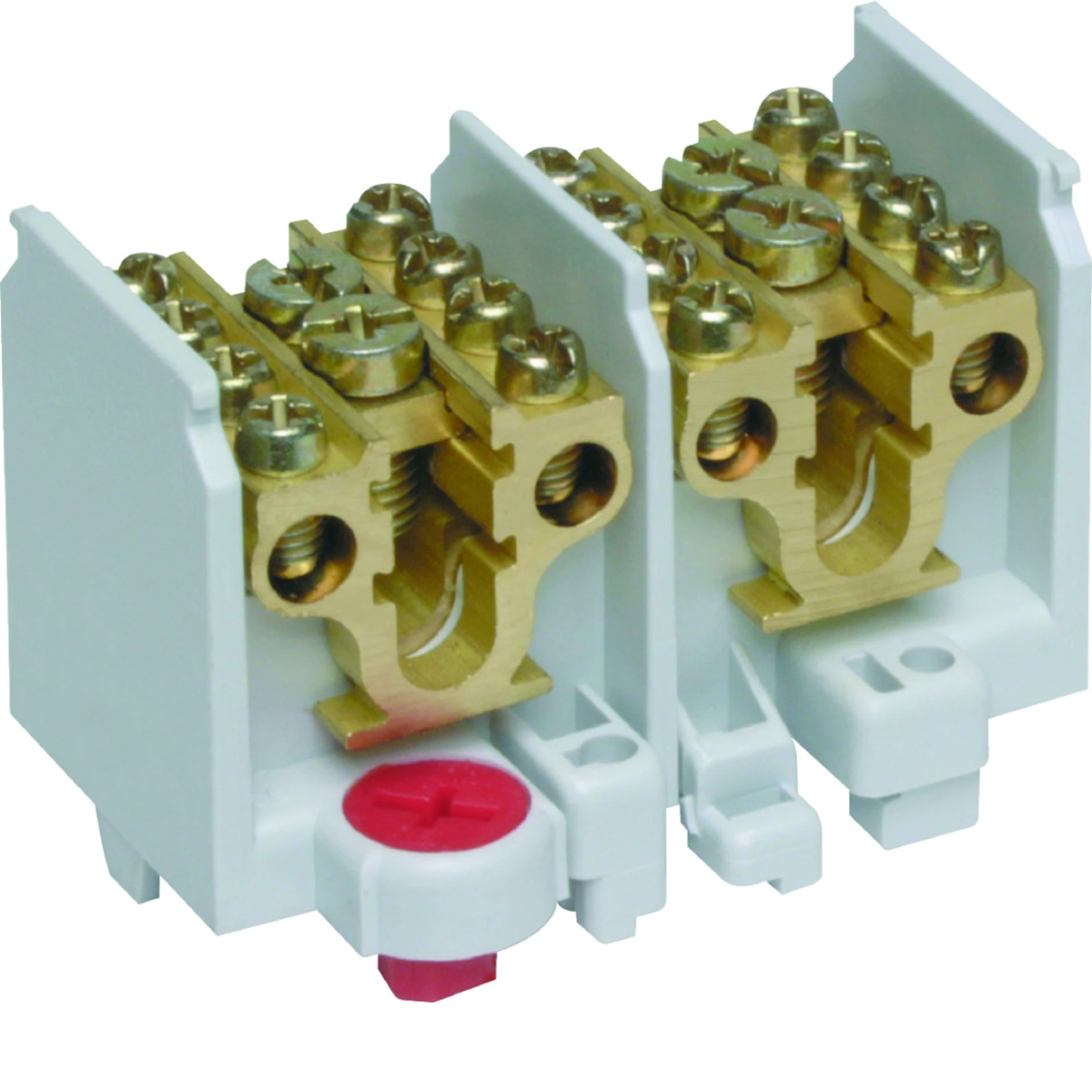

Branch terminals, 2-pole, 4x25mm2 K25A

Name: Branch terminals, 2-pole, 4x25mm2
Brand: HAGER
SKU: TEG007HAGE
Price: 41.32 PLN

local index:

TEG007HAGE

Catalog No:

K25A

EAN code:

3250613780210

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 53

Number of poles: 2

Installation: Clamp and screw

See full description

Price:

41,32 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per pole, 80A
Departure:
- for a cable of 10 mm²
- for wire 16 mm²
• standards: DIN VDE 0603 part 2

Technical data

Depth [mm]

53
Installation

Clamp and screw
Width [mm]

76.5
PKWIU

27.33.13.0

Number of poles

2
Rated current [A]

100
Height [mm]

55.5

Other technical data

Number of poles

2
Connection type

Screwing
Contact safe

No
Width

77 mm

Nominal current

100 A
Mounting method

Screw
Height

53 mm
Depth

40 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	2 pcs.	50 pcs.	1000 pcs.	2 pcs.	50 pcs.	1000 pcs.
Weight (kg)	0,545	14,050	304,000	0,545	14,050	304,000
Width (m)	0,075	0,280	0,800	0,075	0,280	0,800
Length (m)	0,075	0,245	0,950	0,075	0,245	0,950
Depth (m)	0,130	0,400	1,200	0,130	0,400	1,200
