Branch terminals 2-pole 2x35mm2 K22

Name: Branch terminals 2-pole 2x35mm2
Brand: HAGER
SKU: TEG006HAGE
Price: 21.11 PLN

local index:

TEG006HAGE

Catalog No:

K22

EAN code:

4010330730627

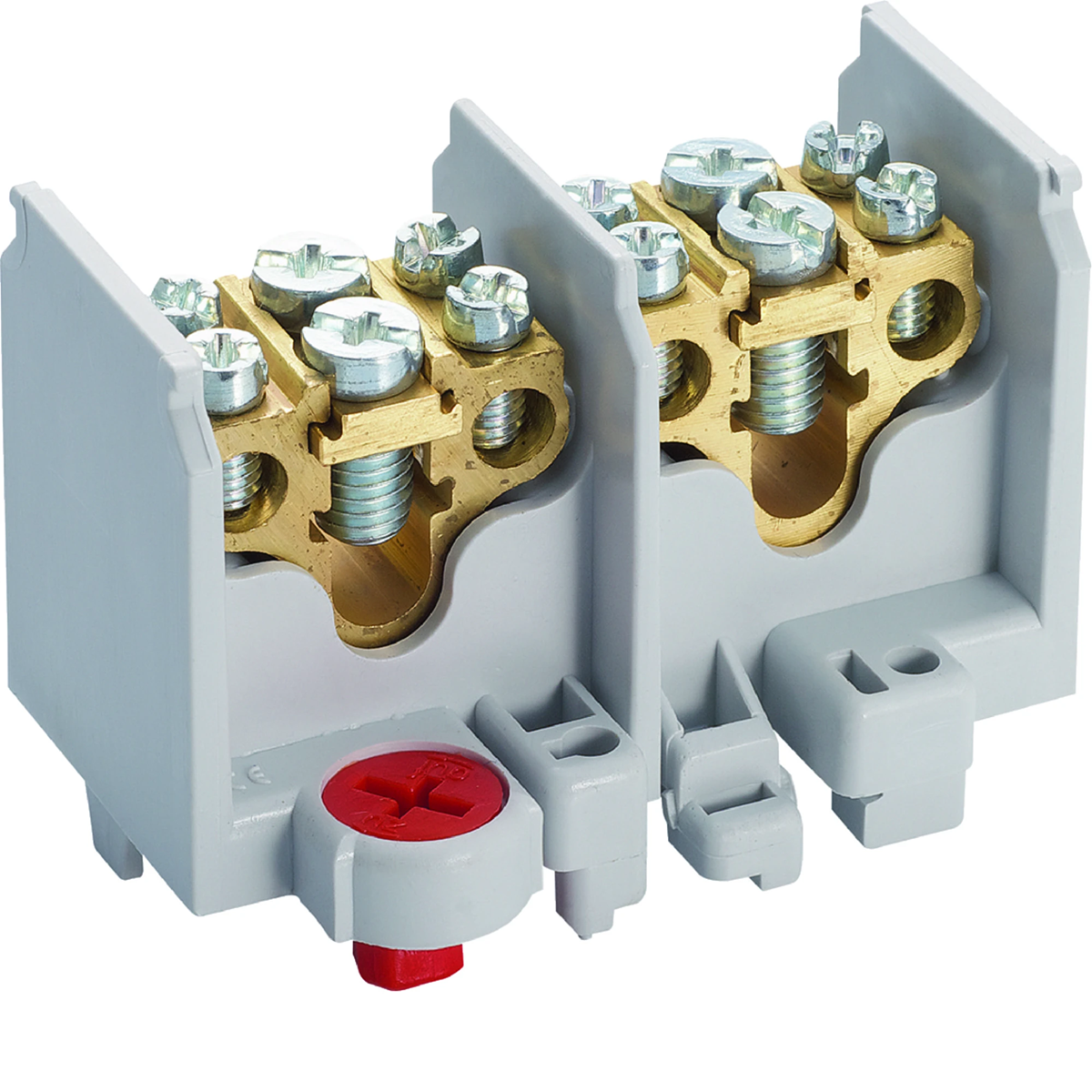

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 44

Number of poles: 2

Installation: Clamp and screw

See full description

Price:

21,11 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per field, 80 A
Departure:
- for 10mm²
line - for 16mm wire²
• standards: DIN VDE 0603 part 2

Technical data

Depth [mm]

44
Installation

Clamp and screw
Width [mm]

77
PKWIU

27.33.13.0

Number of poles

2
Rated current [A]

100
Height [mm]

44

Other technical data

Number of poles

2
Connection type

Screwing
Contact safe

No
Width

77 mm

Nominal current

100 A
Mounting method

Screw
Height

53 mm
Depth

40 mm

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	2 pcs.	50 pcs.	2000 pcs.	2 pcs.	50 pcs.	2000 pcs.
Weight (kg)	0,340	8,500	340,000	0,340	8,500	340,000
Width (m)	0,060	0,310	0,800	0,060	0,310	0,800
Length (m)	0,050	0,210	1,350	0,050	0,210	1,350
Depth (m)	0,190	0,360	1,200	0,190	0,360	1,200
