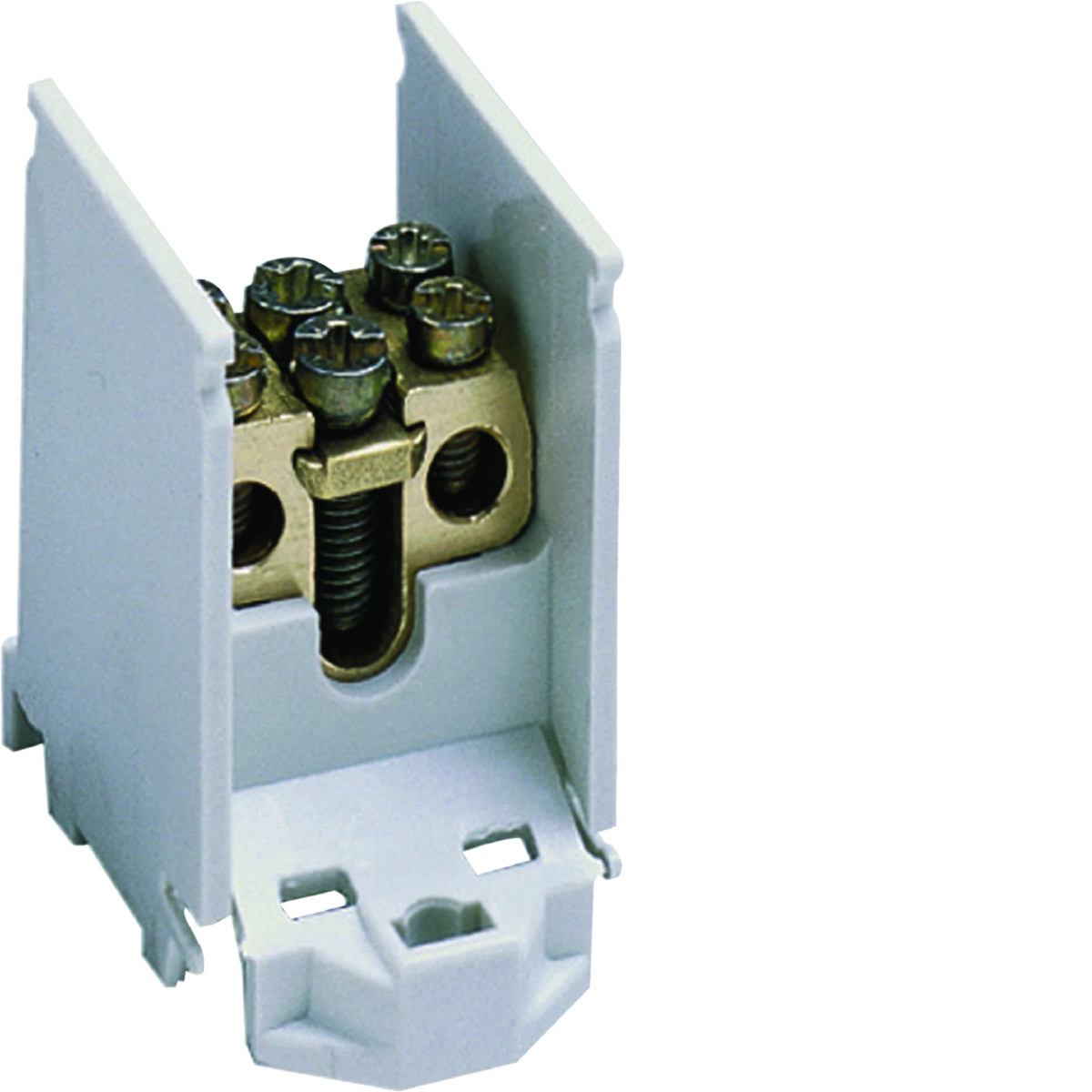

Branch terminals 1-pole 25/2x16mm2 K02SN

Name: Branch terminals 1-pole 25/2x16mm2
Brand: HAGER
SKU: TEG003HAGE
Price: 6.89 PLN

local index:

TEG003HAGE

Catalog No:

K02SN

EAN code:

4010330710025

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 49

Number of poles: 1

Installation: Clamp and screw

See full description

Price:

6,89 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per pole, 80A
Departure:
- for a cable of 10 mm²
- for wire 16 mm²
• standards: DIN VDE 0603 part 2

Technical data

Depth [mm]

49
Installation

Clamp and screw
Width [mm]

thirty
PKWIU

27.33.13.0

Number of poles

1
Rated current [A]

80
Height [mm]

52

Other technical data

Number of poles

1
Connection type

Screwing
Contact safe

No
Width

30 mm

Nominal current

80 A
Mounting method

Screw
Height

52 mm
Depth

49 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	20 pcs.	3840 pcs.
Weight (kg)	0,060	1,205	254,360
Width (m)	0,050	0,160	0,800
Length (m)	0,035	0,065	1,400
Depth (m)	0,050	0,260	1,200
