240630
0

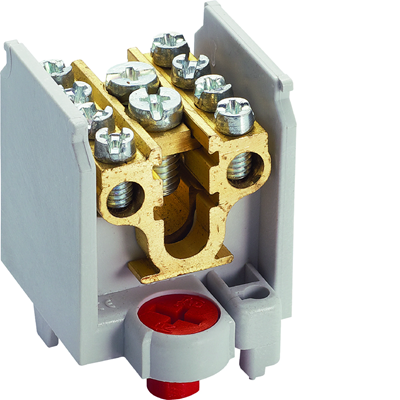

Branch terminals 1-pole 1X35 K65
local index:
TEG002HAGE
Catalog No:
K65
EAN code:
4010330710384
Price:
16,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per pole, 80A
Departure:
- for a cable of 10 mm²
- for wire 16 mm²
• standards: DIN VDE 0603 part 2
Technical data
-
Depth [mm]44
-
InstallationClamp and screw
-
Width [mm]40
-
PKWIU27.33.13.0
-
Number of poles1
-
Rated current [A]100
-
Height [mm]44
Other technical data
-
Number of poles1
-
Connection typeScrewing
-
Contact safeNo
-
Width56 mm
-
Nominal current100 A
-
Mounting methodScrew
-
Height53 mm
-
Depth40 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 100 pcs. | 2000 pcs. |
| Weight (kg) | 0,125 | 0,555 | 14,165 | 308,300 |
| Width (m) | 0,057 | 0,060 | 0,315 | 0,800 |
| Length (m) | 0,041 | 0,060 | 0,210 | 0,950 |
| Depth (m) | 0,052 | 0,190 | 0,355 | 1,200 |
