Branch terminal Al/Al 50-240/50-240 mm2 SL8.21
local index:
TES309ENST
Catalog No:
SL8.21
EAN code:
6418677403781
Price:
11,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

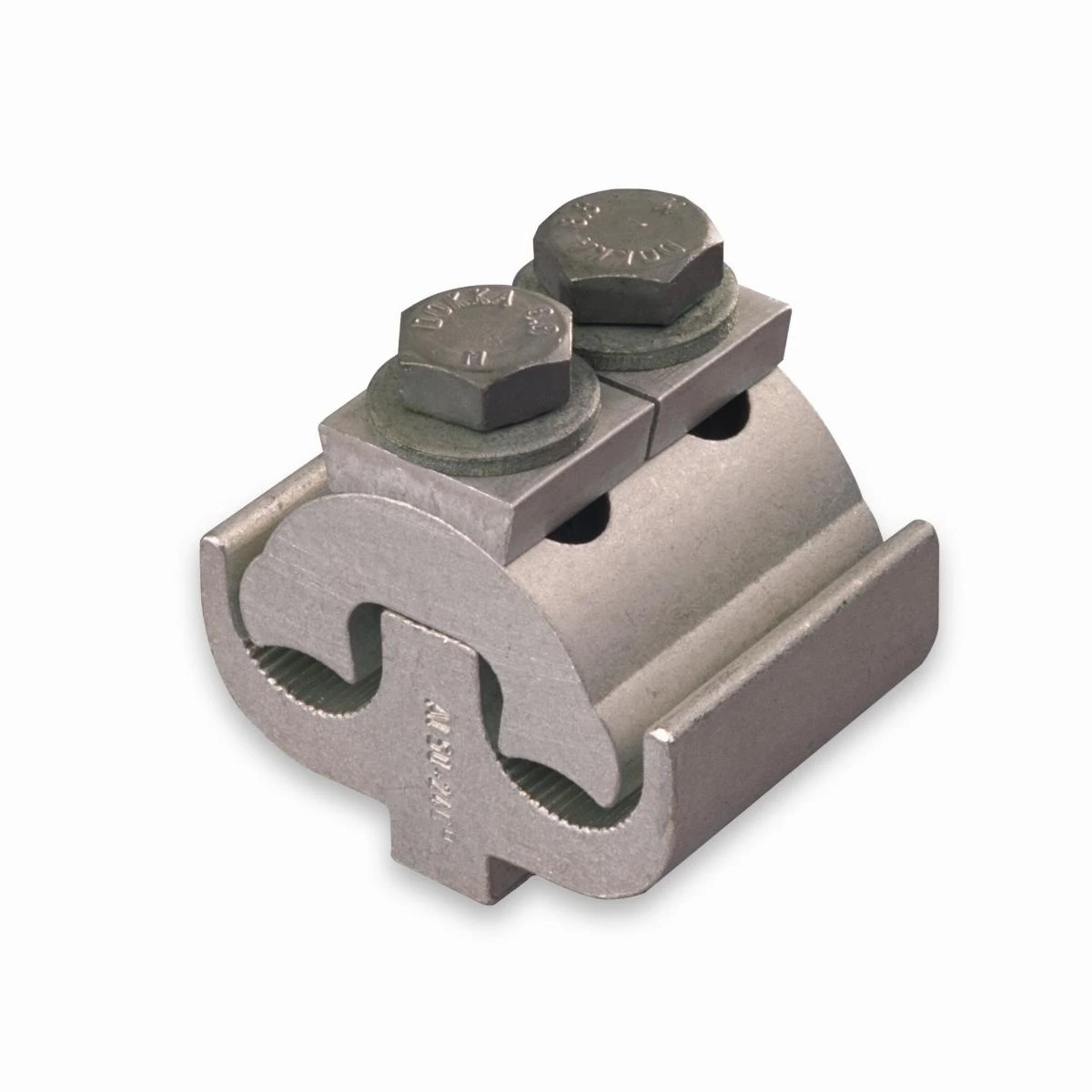

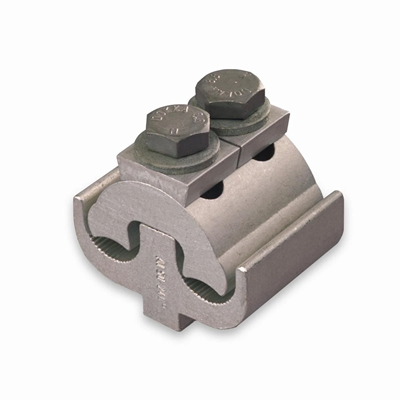

The SL 8.21 terminal is cleaned and protected with contact paste. For connecting aluminum wires not subjected to mechanical stress. It is clamped with two M10 screws.
Technical data
-
screws2xM10
-
Main conductor [mm2]Al 50-240
Other technical data
-
Nominal cross section main conductor, SE50 ... 240 mm²
-
Nominal cross section branch conductor, SE/RE50 ... 240 mm²
-
Material main conductorAluminium
-
Terminal insulatedNo
-
Clamping channel opening branch conductorBoth sides open
-
Type of connectionScrewed connection
-
Nominal cross section main conductor, SM50 ... 240 mm²
-
Nominal cross section branch conductor, SM/RM50 ... 240 mm²
-
Material branch conductorAluminium
-
Clamping channel opening main conductorBoth sides open
-
Surface protectionBare
