SIMET

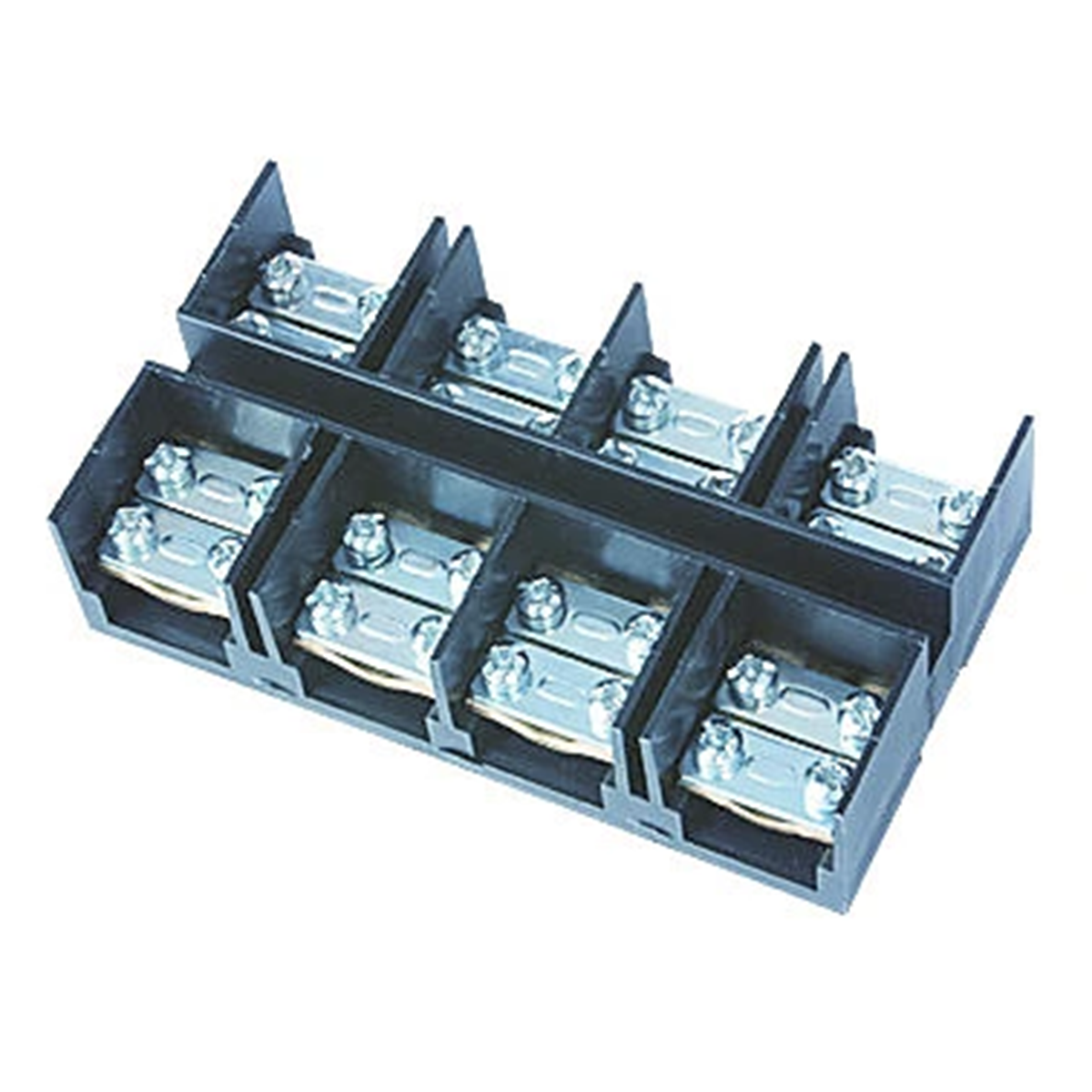

Branch plate 35mm2 4 tracks 83009007

local index:
TEG002SIME
Catalog No:
83009007
EAN code:
5907813231278
Price:
8,29 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,46 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Bunch plate, 35mm2, 4 tracks

Technical data

  • Depth [mm]
    55
  • Width [mm]
    64
  • Accurate color
    Black
  • Color
    Black
  • Libra
    248.5

Other technical data

  • Drill hole distance centrically
    55 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    16 ... 50 mm²
  • Connectable conductor cross section solid-core
    16 ... 50 mm²
  • Rated current In
    85 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    64 mm
  • Length
    114 mm
  • Colour
    Black
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    16 ... 50 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    4
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 100 °C
  • Wysokość przy najniższym sposobie montażu
    55 mm
  • Closing plate required
    no
  • Transparent
    no
