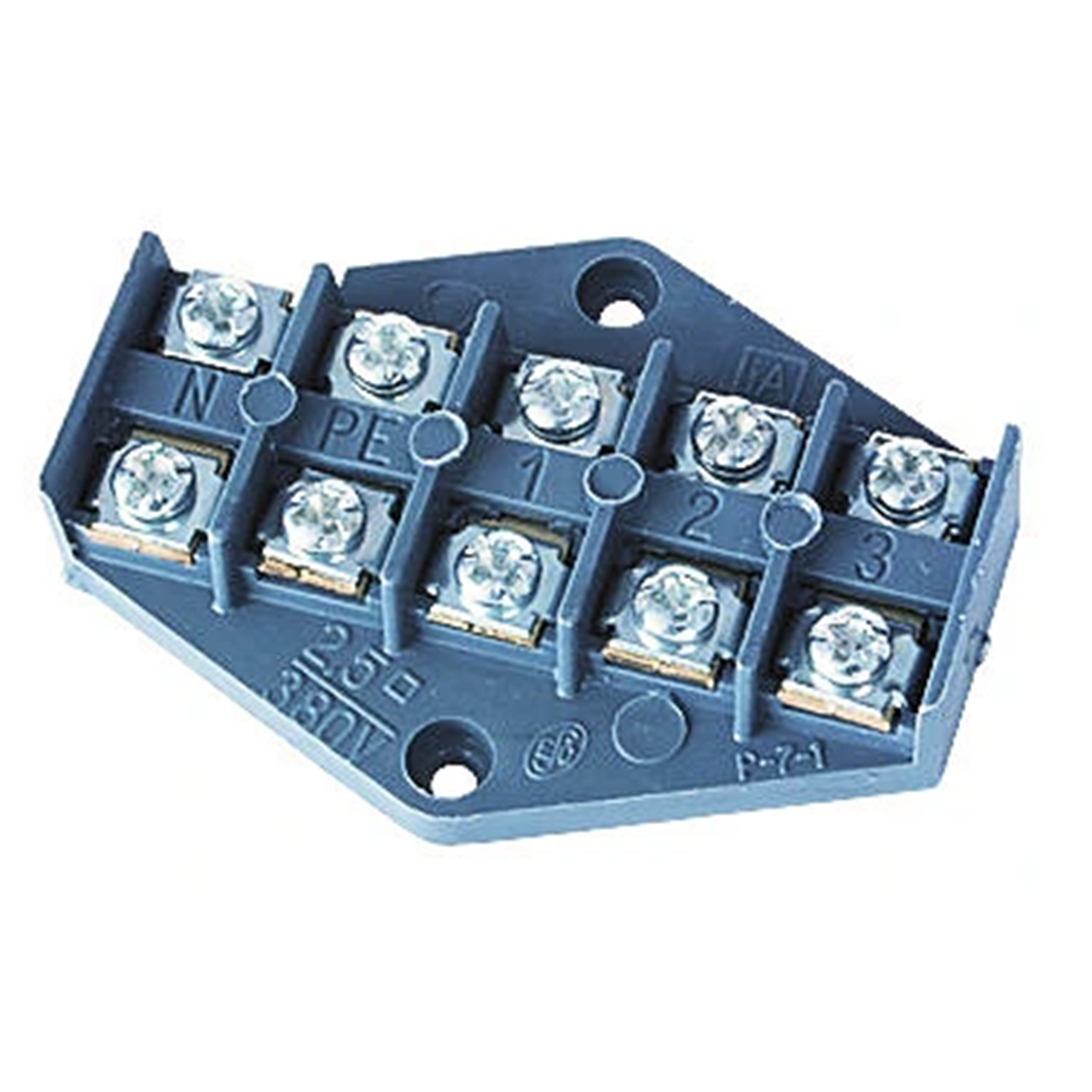

Branch plate 2.5mm2 5 tracks 83002007

local index:
TEG014SIME
Catalog No:
83002007
EAN code:
5907813231209
Manufacturer: SIMET
Depth [mm]: 39
Color: Black
Width [mm]: 48
Price:
1,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 44 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Bunch plate, 2.5mm2, 5 tracks

Technical data

  • Depth [mm]
    39
  • Width [mm]
    48
  • Accurate color
    Black
  • Color
    Black
  • Libra
    26.1
  • PKWIU
    27.33.13.0

Other technical data

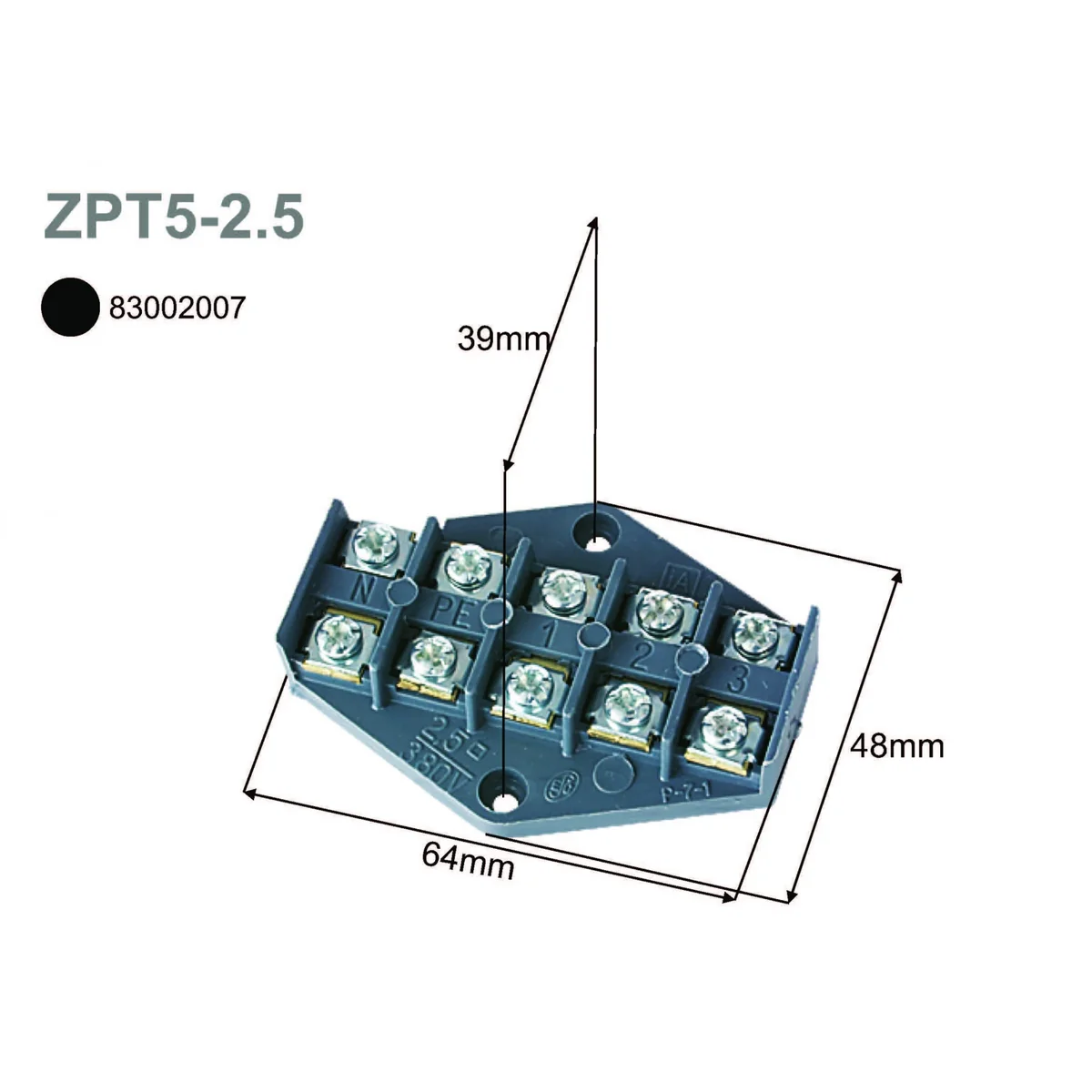

  • Drill hole distance centrically
    39 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    1 ... 2,5 mm²
  • Connectable conductor cross section solid-core
    1 ... 2,5 mm²
  • Rated current In
    10 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    48 mm
  • Length
    64 mm
  • Colour
    Black
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    1 ... 2,5 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    5
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 100 °C
  • Wysokość przy najniższym sposobie montażu
    39 mm
  • Closing plate required
    No
  • Transparent
    No
