el12 Connecting cables and wires Connectors Threaded fittings Branch plate 16mm2 4-way

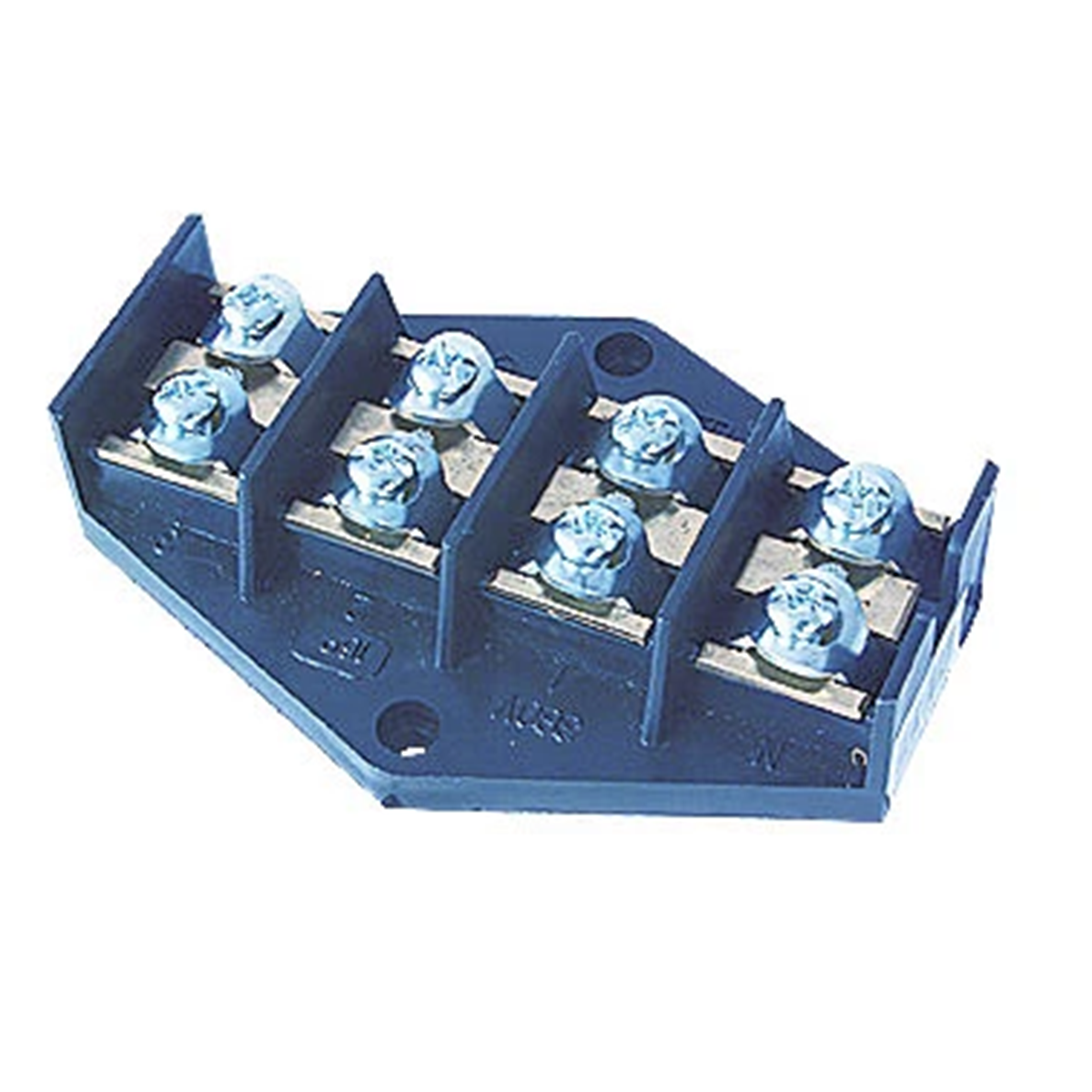

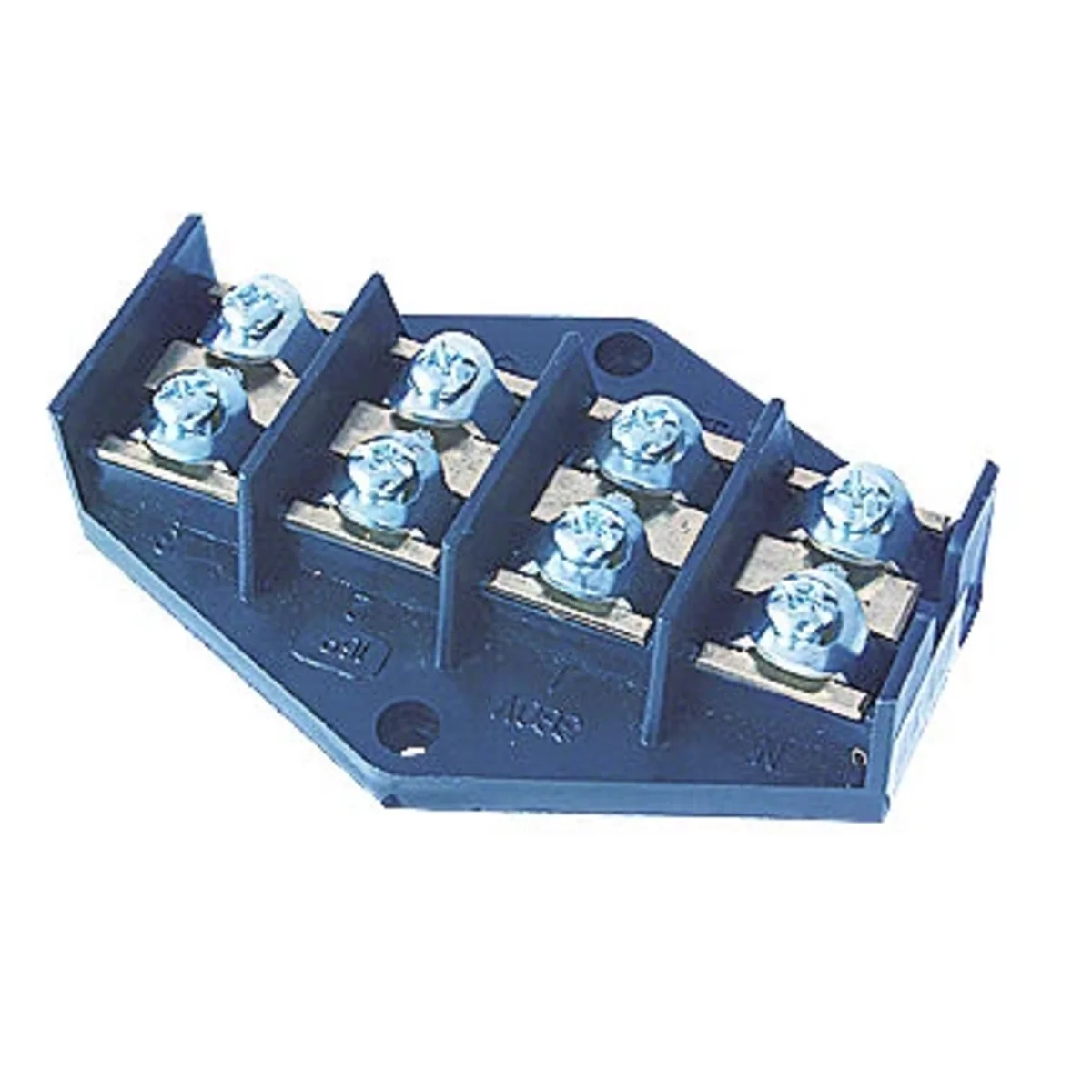

Branch plate 16mm2 4-way

Click on the photo to enlarge

Branch plate 16mm2 4-way
SIMET

Branch plate 16mm2 4-way 83007007

local index:
TEG001SIME
Catalog No:
83007007
EAN code:
5907813231254
Price:
2,93 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Bunch plate, 16mm2, 4-way

Print the product sheet Report an error

Technical data

  • Depth [mm]
    63
  • Width [mm]
    76
  • Accurate color
    Black
  • Color
    Black
  • Libra
    132.3

Other technical data

  • Drill hole distance centrically
    63 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    10 ... 25 mm²
  • Connectable conductor cross section solid-core
    10 ... 25 mm²
  • Rated current In
    55 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    76 mm
  • Length
    110 mm
  • Colour
    Black
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    10 ... 25 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    4
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 100 °C
  • Wysokość przy najniższym sposobie montażu
    63 mm
  • Closing plate required
    no
  • Transparent
    no
