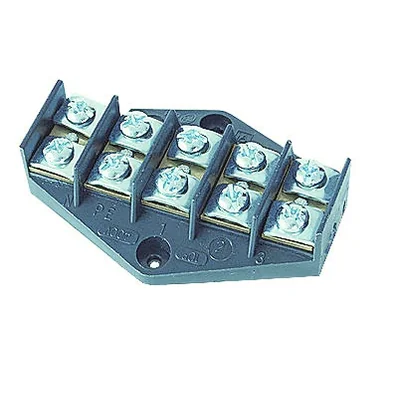

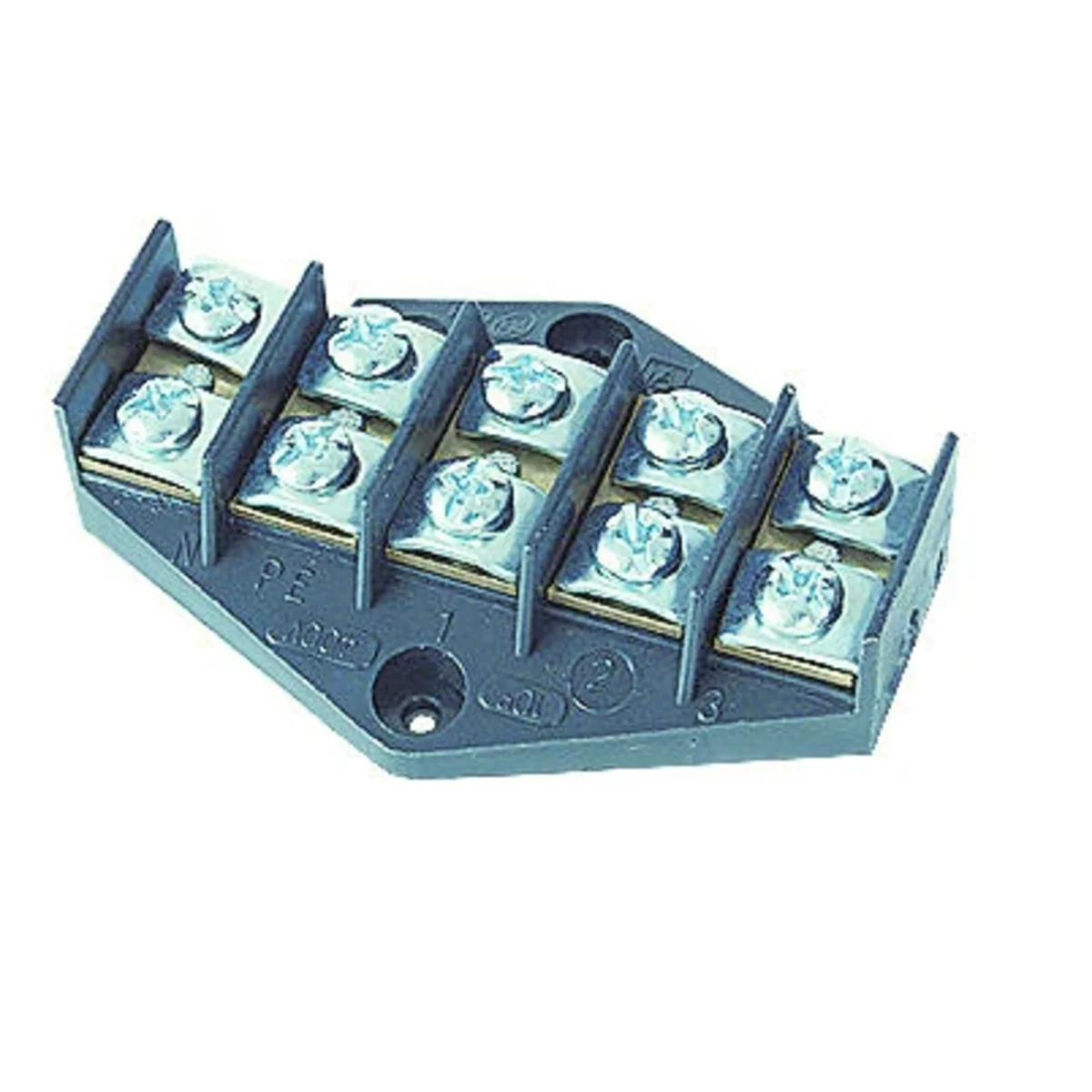

Branch plate 10mm2 5 tracks 83006007
local index:
TEG010SIME
Catalog No:
83006007
EAN code:
5907813231247
Price:
2,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Bunch plate, 10mm2, 5 tracks
Technical data
-
Depth [mm]44
-
Width [mm]57
-
Accurate colorBlack
-
ColorBlack
-
Libra69.5
-
PKWIU27.33.13.0
Other technical data
-
Drill hole distance centrically44 mm
-
Connectable conductor cross section fine-strand without cable end sleeve6 ... 16 mm²
-
Connectable conductor cross section solid-core6 ... 16 mm²
-
Rated current In40 A
-
Type of electrical connection 1Screw connection
-
Connection positionSideways
-
Number of clamp positions per pole2
-
Material insulation bodyThermoplastic
-
Width/grid dimension57 mm
-
Length80 mm
-
ColourBlack
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired6 ... 16 mm²
-
Rated voltage400 V
-
Type of electrical connection 2Screw connection
-
Number of poles5
-
Mounting methodDirect mounting
-
Operating temperature-25 ... 100 °C
-
Wysokość przy najniższym sposobie montażu44 mm
-
Closing plate requiredNo
-
TransparentNo
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
