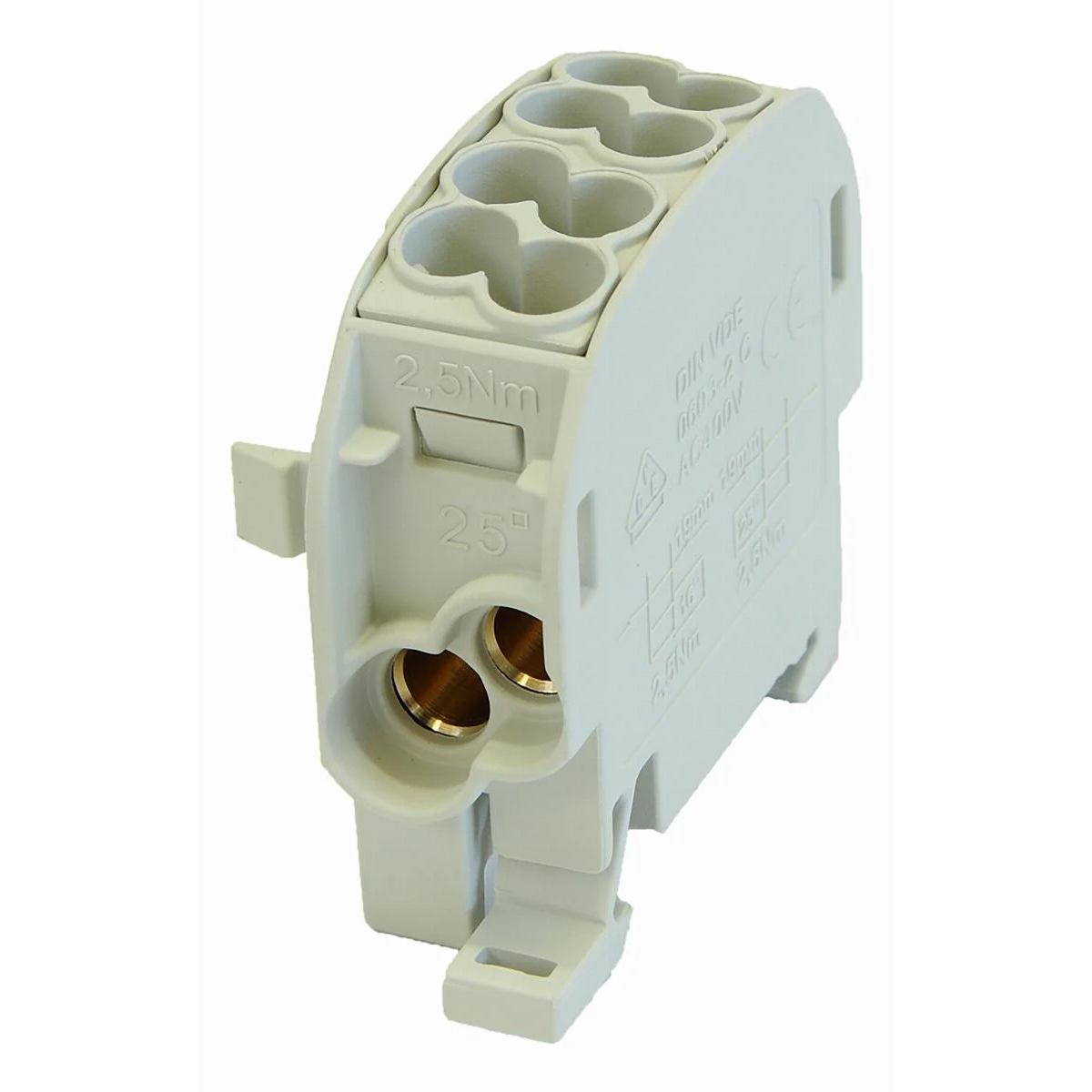

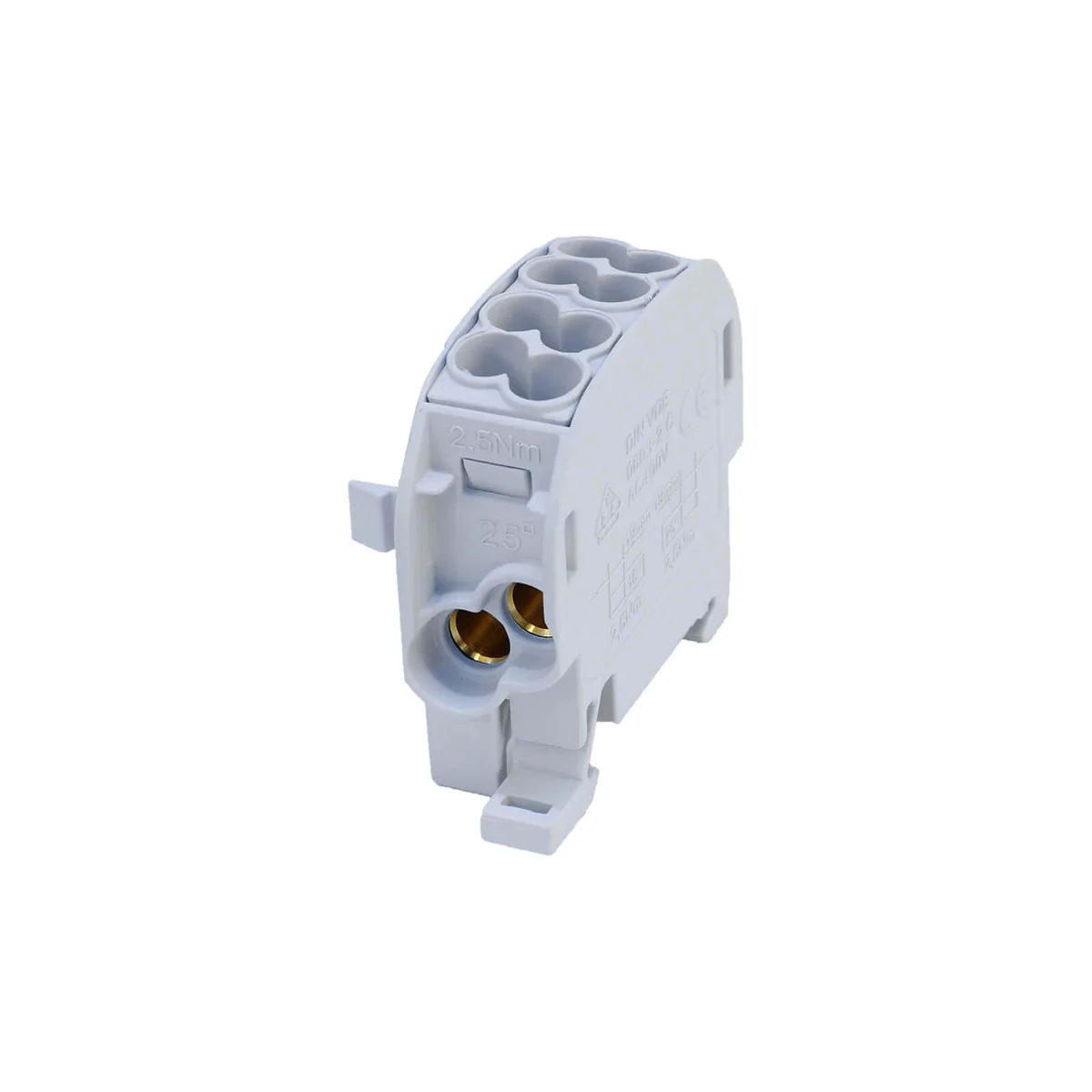

Branch distribution block Al/Cu SCB 25 grey 81501002
local index:
TES120SIME
Catalog No:
81501002
EAN code:
5907813233258
Price:
4,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Distribution block - branching Al/Cu SCB 25 gray designed for
- various round and sector solid conductors,
- wireów multi-core,
- flexible wires,
- copper and aluminum wires.
Blocks are used for AC/DC voltage . They can be used as ordinary serial terminal blocks.

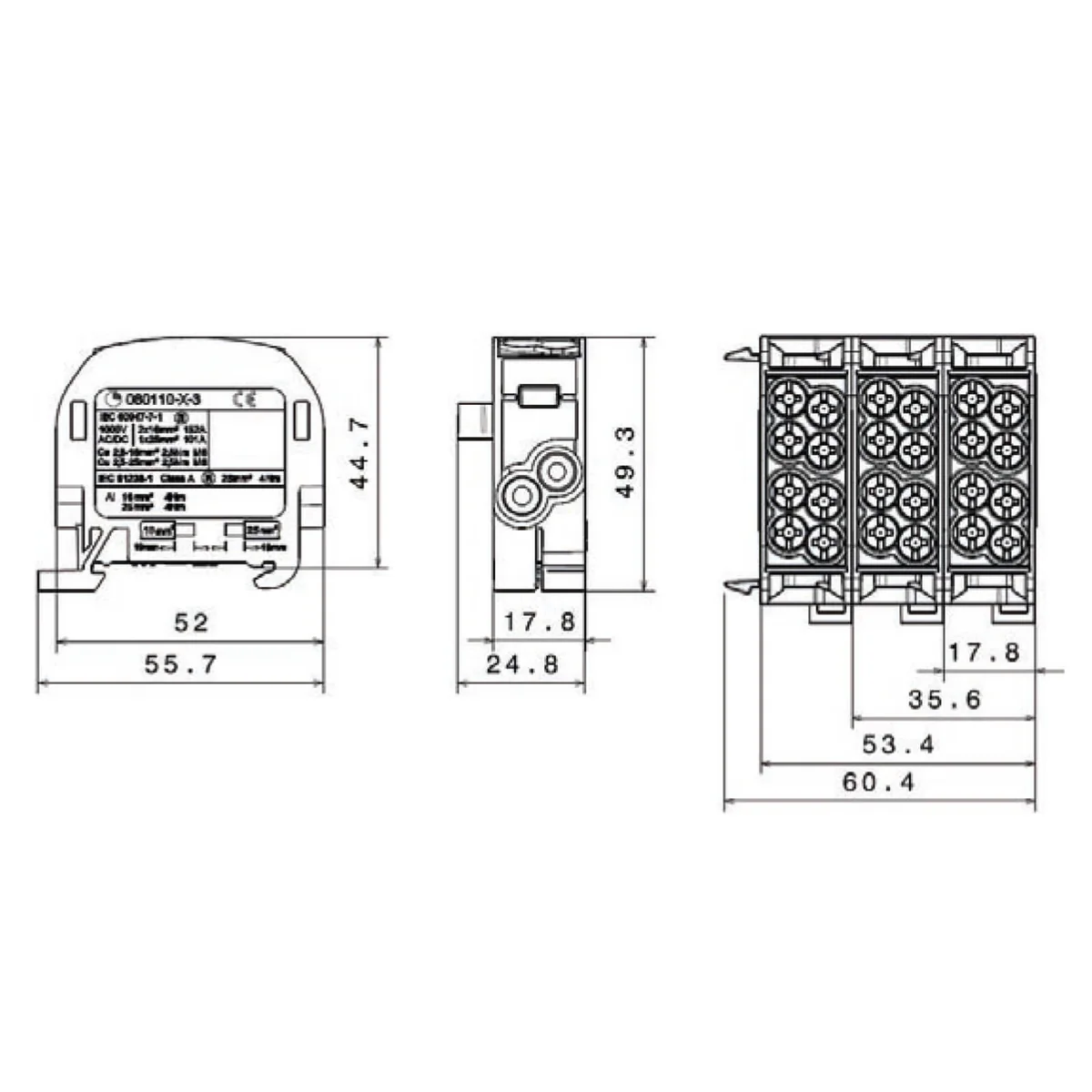

Technical data
-
Depth [mm]55.7
-
ColorGray
-
InstallationOn the TH-35 rail
-
Width [mm]24.8
-
Wire cross-section [mm²]25
-
Rated current Cu [A]152
-
Number of terminals4
-
Number of poles1
-
Rated voltage [V]1000
-
Height [mm]49.3
-
Rated current Al [A]100
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33
-
Phone number
-
E-mail
-
Tax identification number6112112204
-
GLN5909000603295
