el12 Connecting cables and wires Connectors Rail connectors Branch distribution block AL/CU SCB 25 green

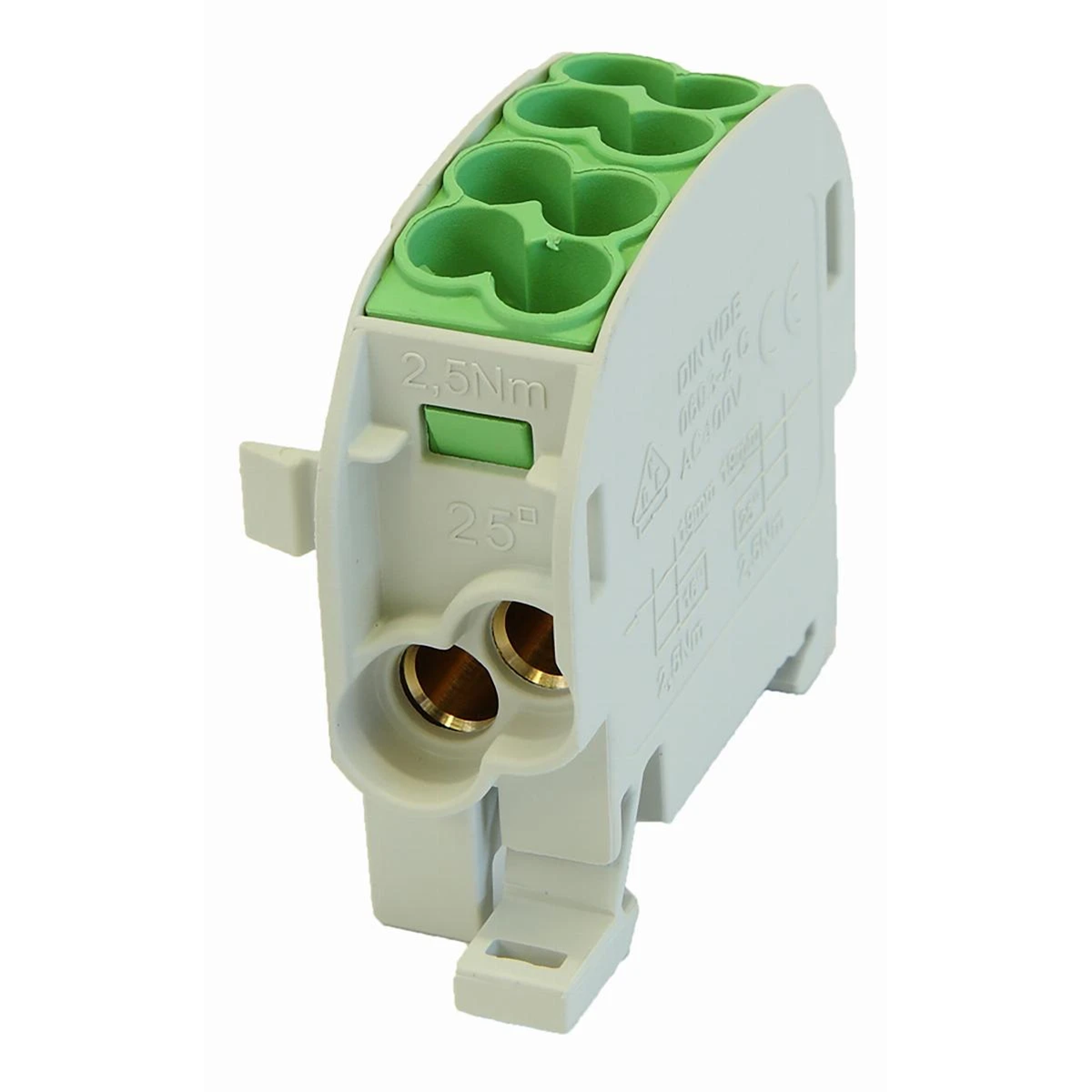

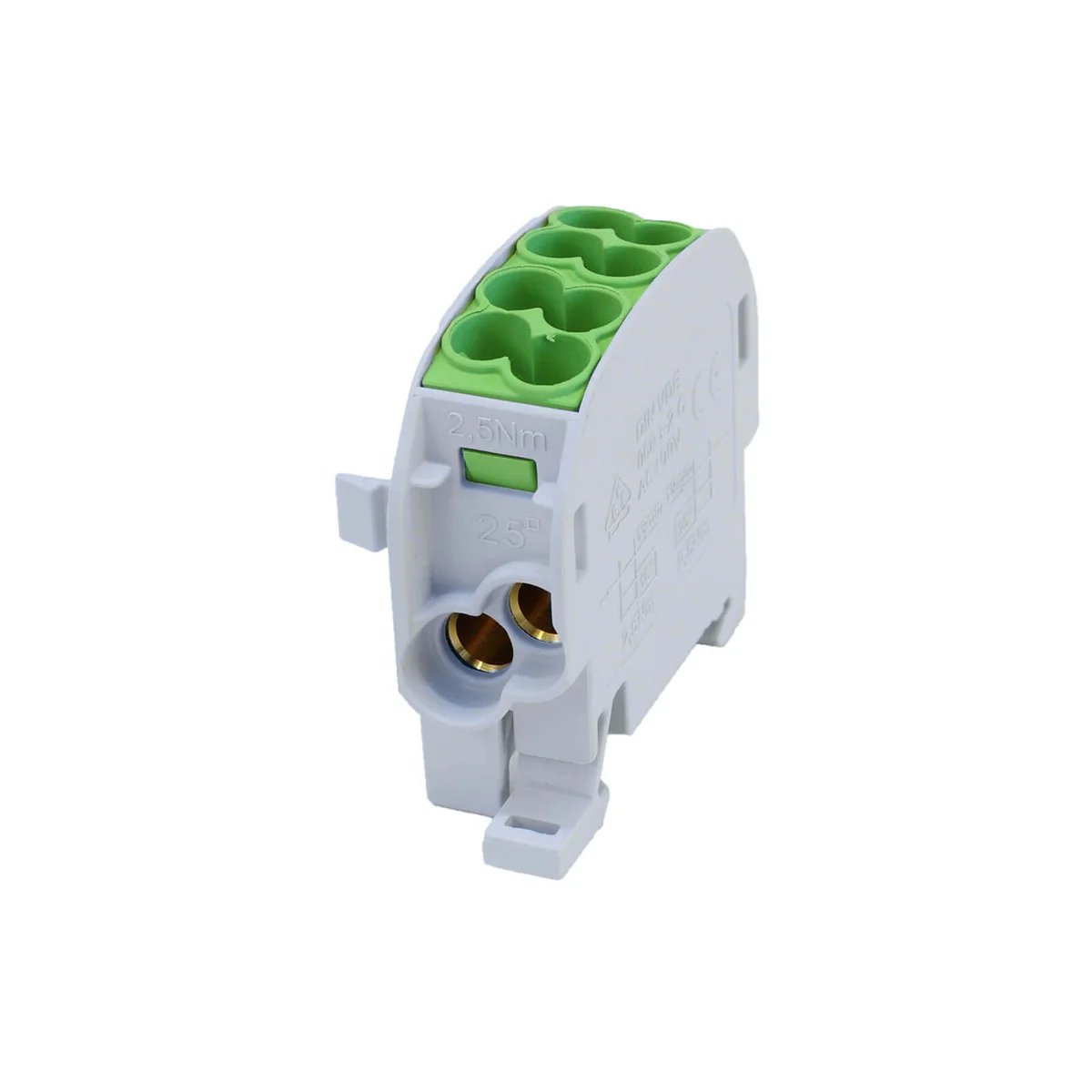

Branch distribution block AL/CU SCB 25 green

Click on the photo to enlarge

Branch distribution block AL/CU SCB 25 green
SIMET

Branch distribution block AL/CU SCB 25 green 81501005

local index:
TES122SIME
Catalog No:
81501005
EAN code:
5907813233272
Price:
4,00 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 102 pcs.
Delivery:
From 3,49 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Distribution block - branching AL/CU SCB 25 green intended for

  • various round and sector solid ducts,
  • wireów  multi-core,
  • flexible wires,
  • copper and aluminum wires.

Blocks are used for AC/DC voltage . They can be used as ordinary serial terminal blocks.

Print the product sheet Report an error

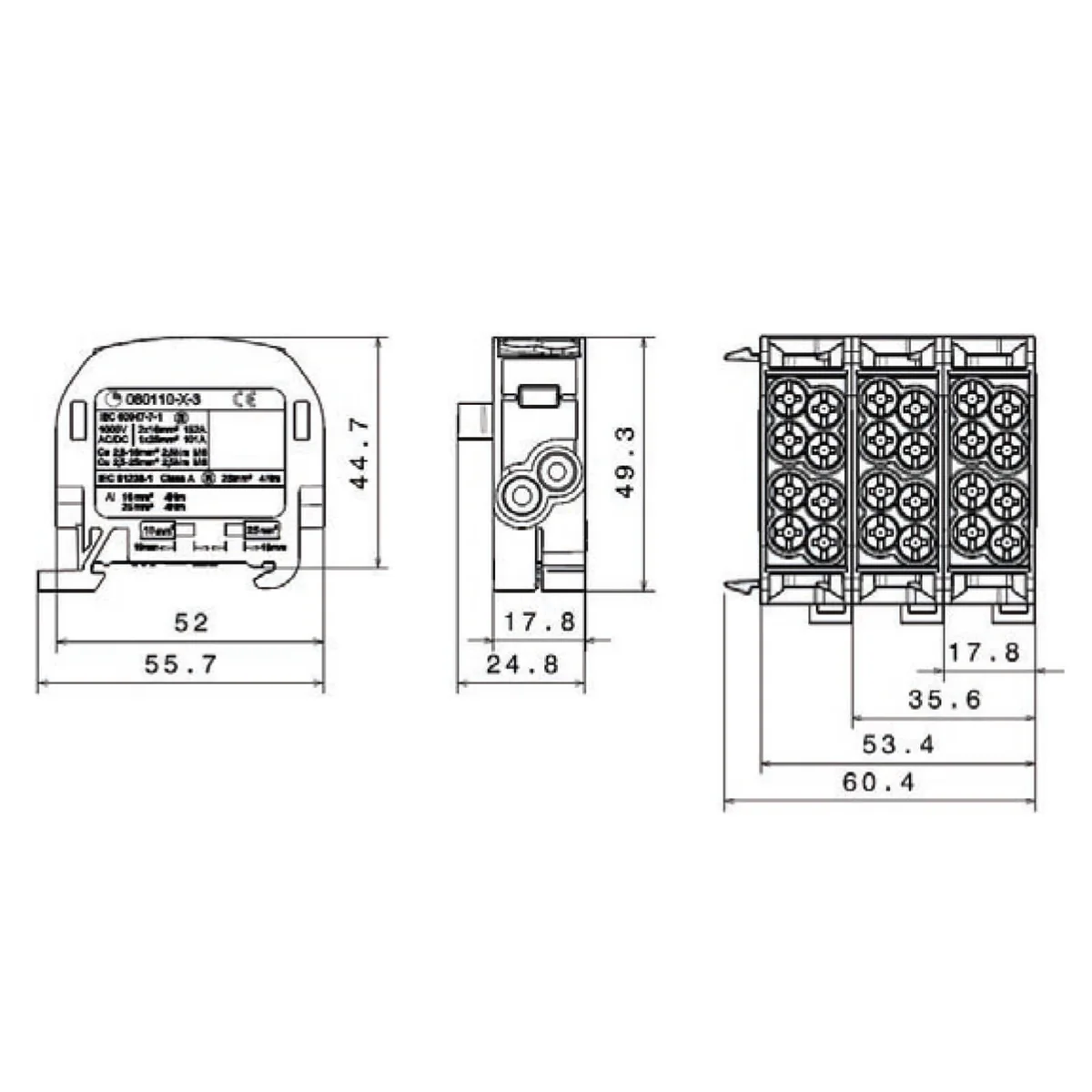

Technical data

  • Depth [mm]
    55.7
  • Color
    Green
  • Installation
    On the TH-35 rail
  • Width [mm]
    24.8
  • Wire cross-section [mm²]
    25
  • Rated current Cu [A]
    152
  • Number of terminals
    4
  • Number of poles
    1
  • Rated voltage [V]
    1000
  • Height [mm]
    49.3
  • Rated current Al [A]
    100
