Branch distribution block Al/Cu SCB 25-5X SIMBLOCK blue-green-gray 81500020

Name: Branch distribution block Al/Cu SCB 25-5X SIMBLOCK blue-green-gray
Brand: SIMET
SKU: TER002SIME
Price: 17.98 PLN
Availability: InStock

Index local:

TER002SIME

Numéro de catalogue:

81500020

Code EAN:

5907813232893

Branch distribution block Al/Cu SCB 25-5X SIMBLOCK blue-green-gray

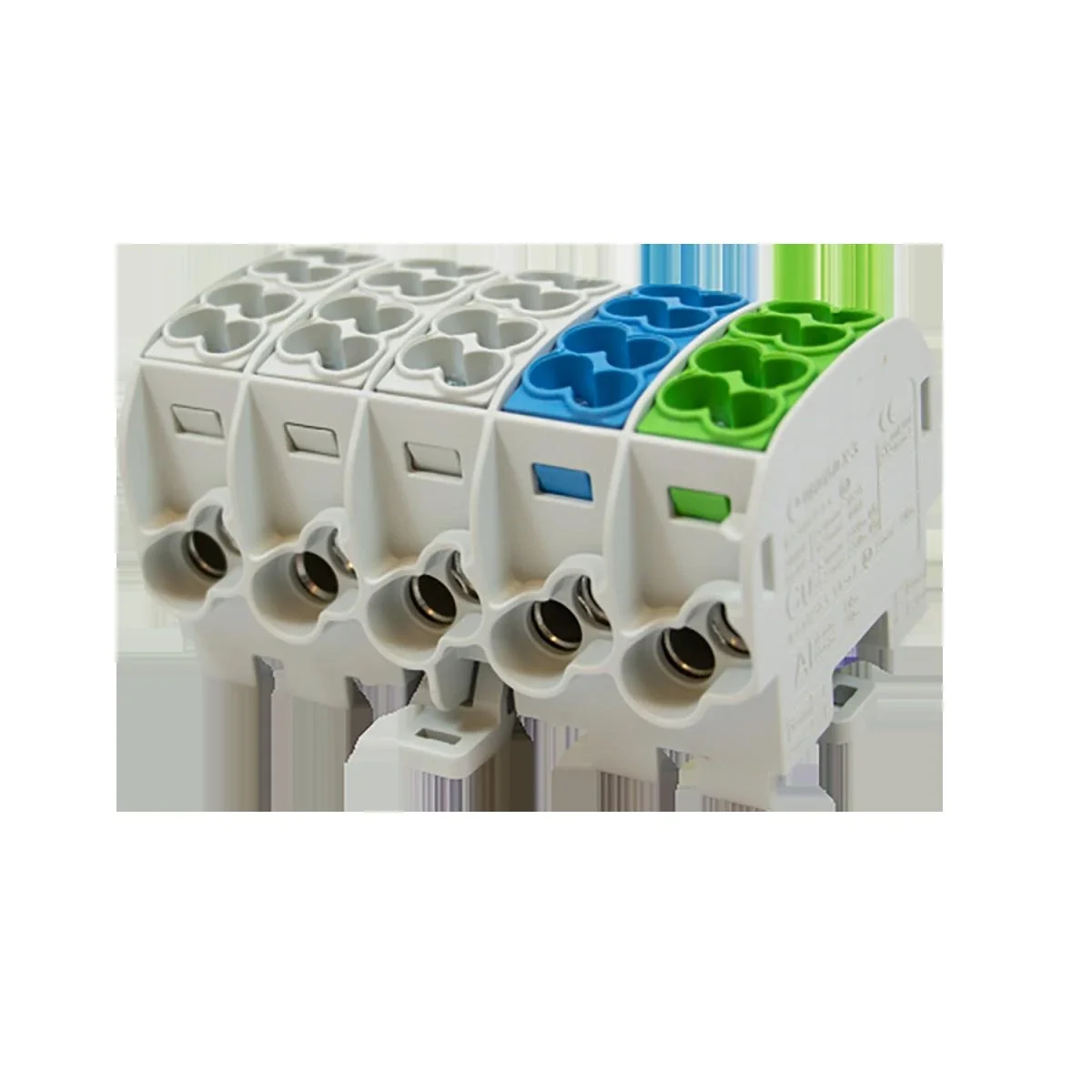

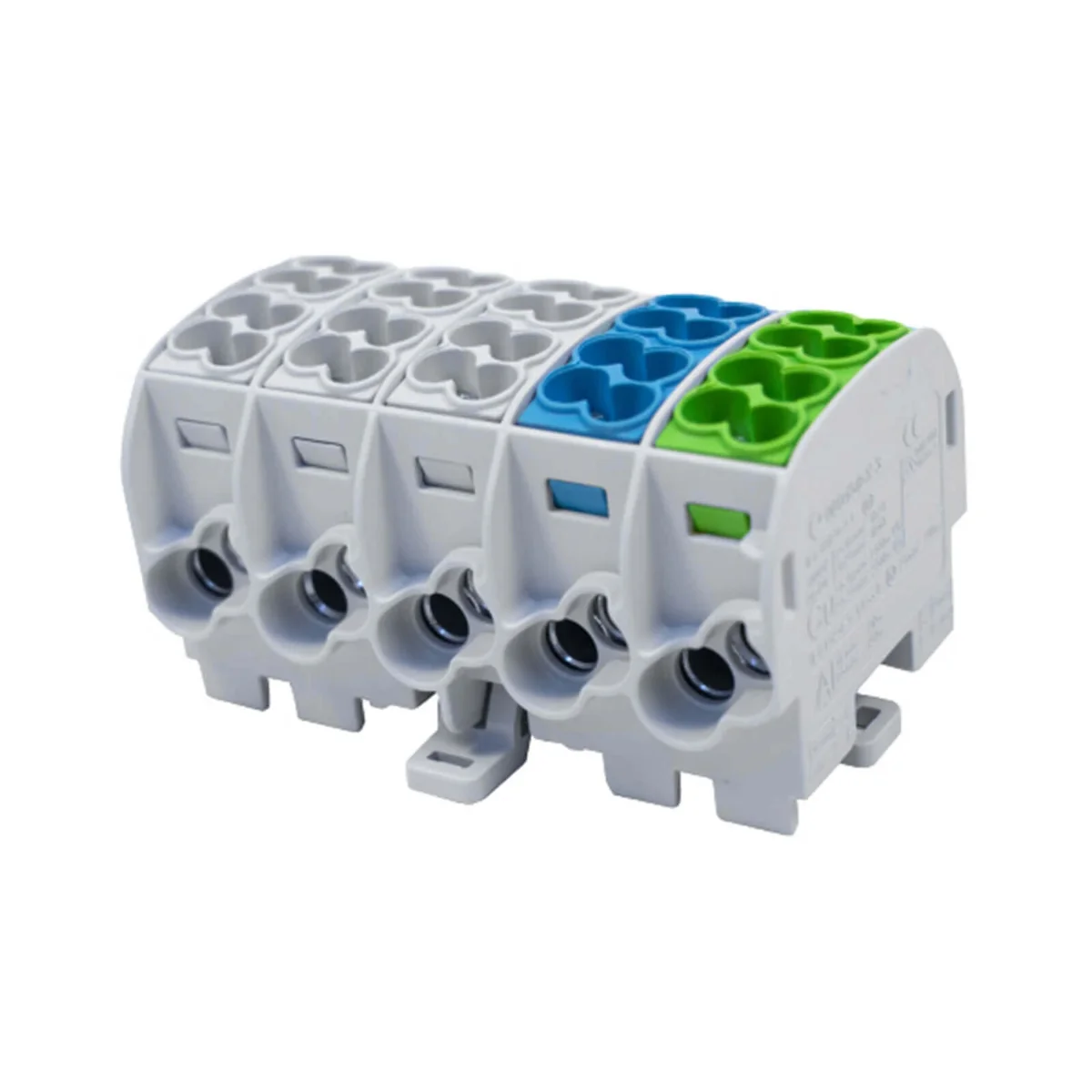

Cliquer sur la photo pour l'agrandir

Producteur: SIMET

Length [mm]: 55.7

Depth [mm]: 55.7

Number of inputs: 2

Voir la description complète

Prix:

17,98 €

gross / pcs.

(y compris la TVA 23%)

Accessible 109 pcs.

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Distribution block - branching Al/Cu SCB 25-5X SIMBLOCK gray blue green is a device separating energy and power coming from one circuit. With their help, we can optimize the space in the designed switchgears or control blocks. Intended use: for various round and sector-shaped solid, multi-core or flexible conductors, made of both copper and aluminum. distribution series SDB have a wide range of applications:

manufacturing plants,
switchgears,< /li>
wind power plants,
solar technologies
automation of production processes.

SCB distribution blocks have They can also be used as ordinary series connectors.

They have a solid construction and a special construction, which protects us against accidental contact with a finger of live parts, and are are ;for mounting on a TS 35 rail.

Données techniques

Length [mm]

55.7
Number of inputs

2
Color

Gray blue Green
Installation

On the TH-35 rail
DC rated voltage [V]

1000
Height [mm]

49.3
Rated current Al [A]

100
Input (wire) [mm²]

2.5-25
Output (wire) [mm²]

2.5-16
Maximum cable cross-section [mm²]

25

Depth [mm]

55.7
Number of outputs

2
Number of poles

5
Rated voltage [V]

1000
Width [mm]

88.8
AC rated voltage [V]

1000
Rated current Cu [A]

152
Input (cord with ferrule) [mm²]

1.5-16
Output (cord with sleeve) [mm²]

1.5-10
PKWIU

27.33.13.0

Détails du fabricant

Producteur

SIMET S.A.
Adresse

58-506 Jelenia Góra al. Jana Pawła II 33 Polska
E-mail

sprzedaz@simet.com.pl

Emballage en vrac

Une sorte de paquet	Pakiet
Quantité	1 pcs.
Largeur (m)	0,089
Longueur (m)	0,056
