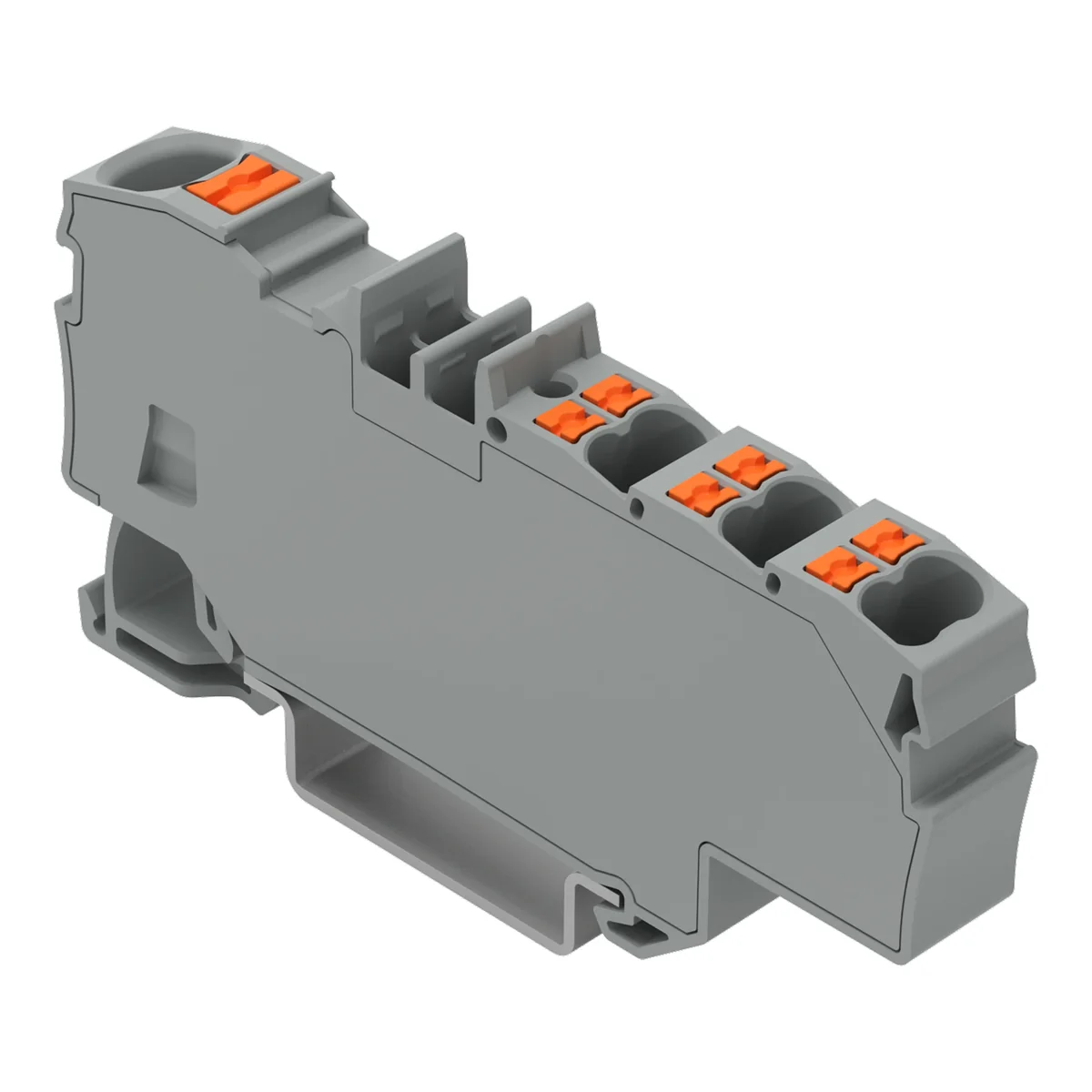

Branch connector with push button 1 x 6 mm² / 6 x 1.5 mm², gray 2206-8031

Внутрішній артикул:
TEB622WAGO
№ каталоговий:
2206-8031
Код EAN:
4066966185805
Виробник: WAGO ELWAG
Ціна:
24,56 zł
gross / шт.
(з ПДВ 23%)
2 тижні
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Технічні дані

Інші технічні дані

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 10 mm²
  • Connectable conductor cross section solid-core
    1 ... 10 mm²
  • Rated current In
    41 A
  • Type of electrical connection 1
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Height
    73.8 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    1.5 ... 6 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 6 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of clamp positions per level
    7
  • Material insulation body
    Thermoplastic
  • Width
    9 mm
  • Depth
    32.9 mm
  • Closing plate required
    No
  • Internally connected stages
    No

Інформація про виробника

  • Виробник
    WAGO GmbH & Co. KG
  • Адреса
    32423 Minden Hansastraße 27 Niemcy
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Karton Karton
Кількість 12 шт. 12 шт.
Вага (кг) 0,226 0,226
Об'єм (м3) 0,001 0,001
Ширина (м) 0,080 0,080
Довжина (м) 0,132 0,132
Глибина (м) 0,050 0,050
