Branch connector with mounting hole 1 x 6 mm² / 6 x 1.5 mm², red 2006-8033

Name: Branch connector with mounting hole 1 x 6 mm² / 6 x 1.5 mm², red
Brand: WAGO ELWAG
SKU: TEB547WAGO
Price: 22.89 PLN
Availability: BackOrder

local index:

TEB547WAGO

Catalog number:

2006-8033

EAN code:

4066966185768

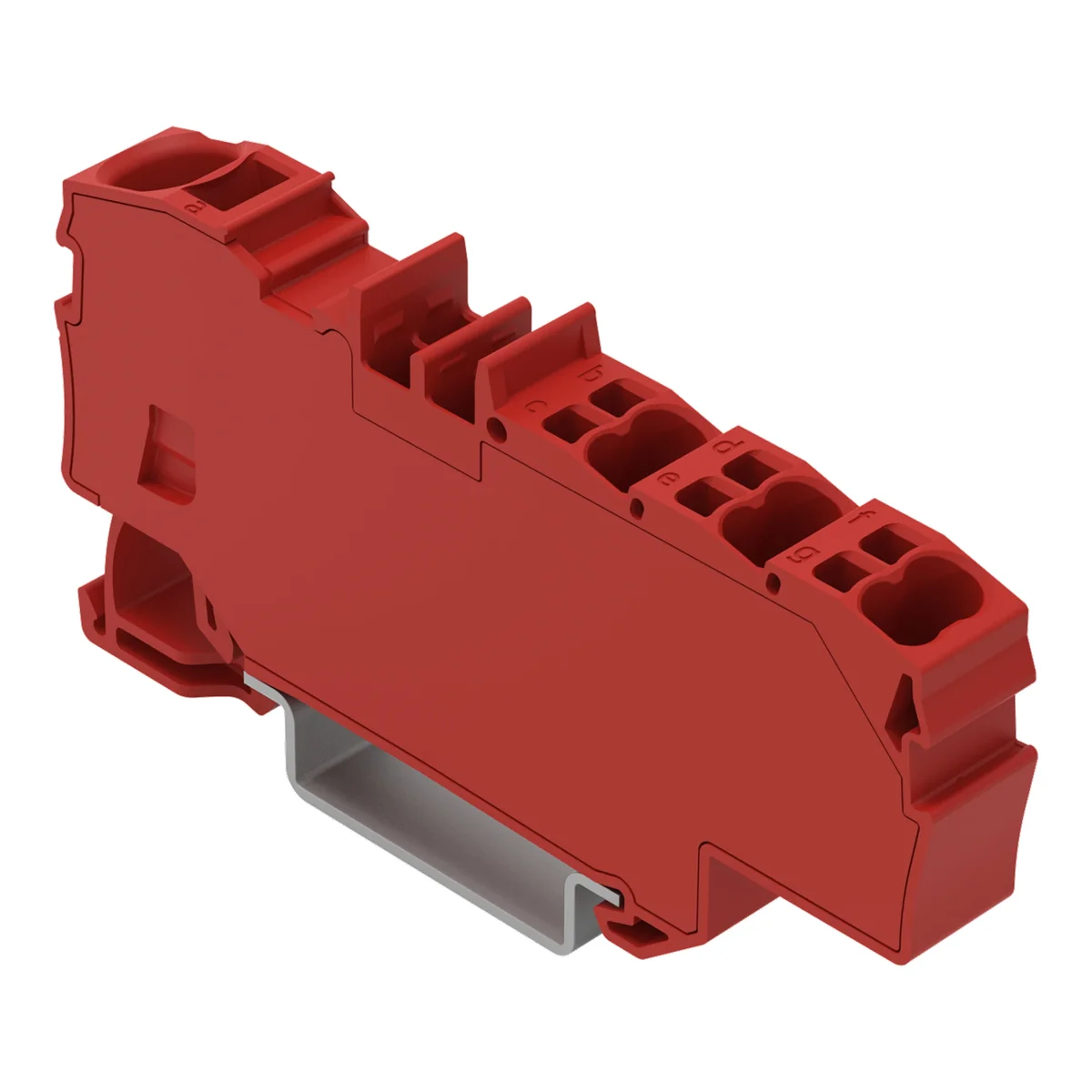

Branch connector with mounting hole 1 x 6 mm² / 6 x 1.5 mm², red

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

22,89 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 10 mm²
Connectable conductor cross section solid-core

0.5 ... 10 mm²
Rated current In

41 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Suitable for conductor material

Copper
Material insulation body

Thermoplastic
Width

9 mm
Depth

32.9 mm
Closing plate required

No
Internally connected stages

No

Connectable conductor cross section fine-strand with cable end sleeve

1.5 ... 6 mm²
Connectable conductor cross section multi-wired

0.5 ... 6 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

7
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

73.8 mm
Explosion-tested version 'Ex e'

No
Colour

Grey
