Connecting cables and wires
Connectors
Screwless connectors

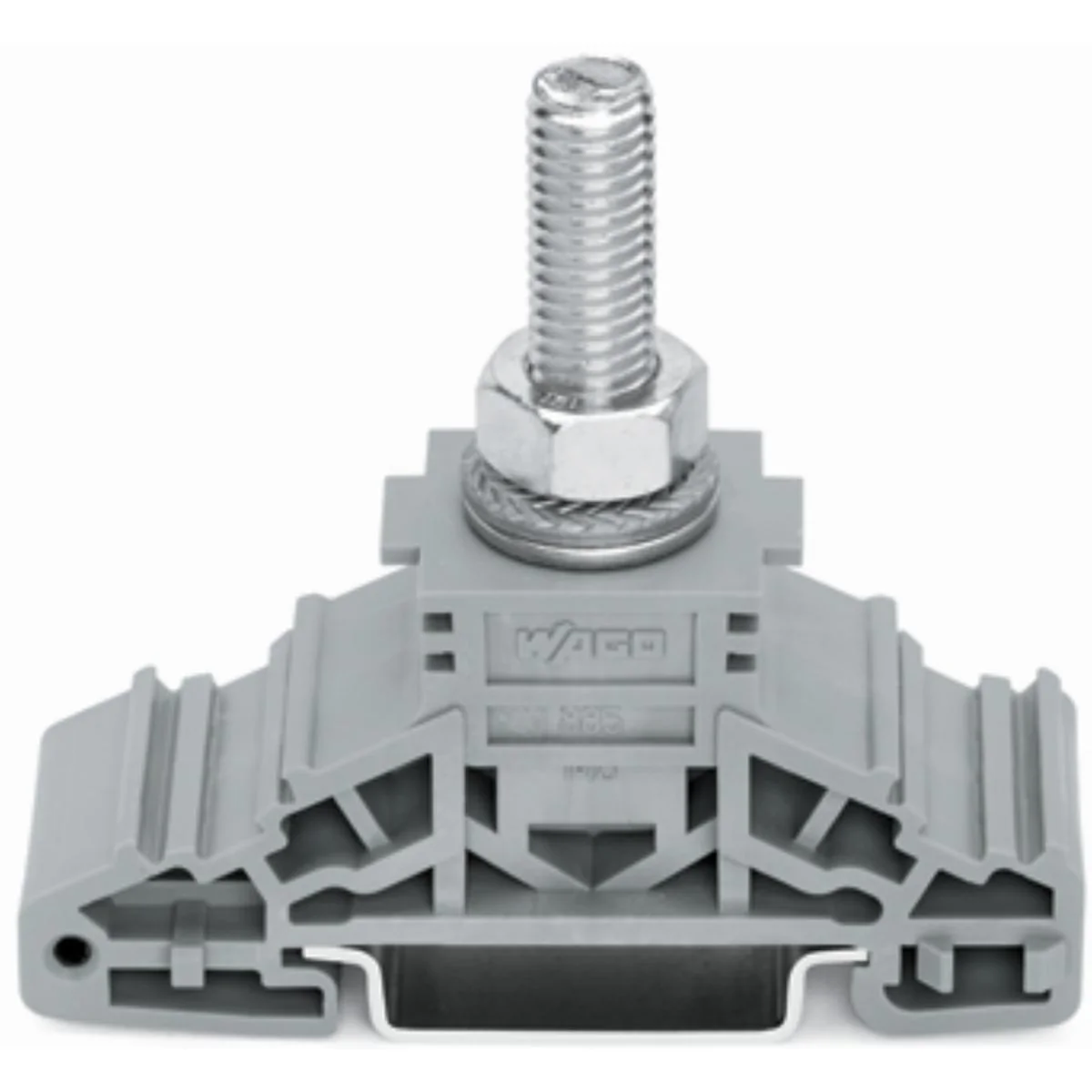

Bolt connector 50mm2 grey 885-108
local index:
TEB429WAGO
Catalog No:
885-108
EAN code:
4050821049234
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Depth [mm]:
56.7
Thread:
M8
Number of terminals:
1
See full description
Price:
11,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Way of opening the clamp - using a 13mm flat socket wrench
Technical data
Depth [mm]
56.7
Number of terminals
1
Number of potentials
1
Rated voltage [V]
1000
Rated current [A]
150
Width [mm]
22.8
Height [mm]
67
Thread
M8
Color
Gray
Installation
On the TH35 rail
The plane of description
Description on the side
Nominal cross-section [mm²]
50
Wire connection technique
Pin clamp
Rated impulse voltage [kV]
8
Other technical data
Connectable conductor cross section multi-wired
2.5 ... 50 mm²
Rated voltage
1000 V
Type of electrical connection 2
Bolt connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
22.8 mm
Length
67 mm
Closing plate required
Yes
Internally connected stages
No
Rated current In
125 A
Type of electrical connection 1
Bolt connection
Connection position
Atop
Number of clamp positions per level
1
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
48.7 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Bulk packaging
A kind of package
Karton
Quantity
25 pcs.
Weight (kg)
1,257
Volume (m3)
0,003
Width (m)
0,125
Length (m)
0,190
Depth (m)
0,120
