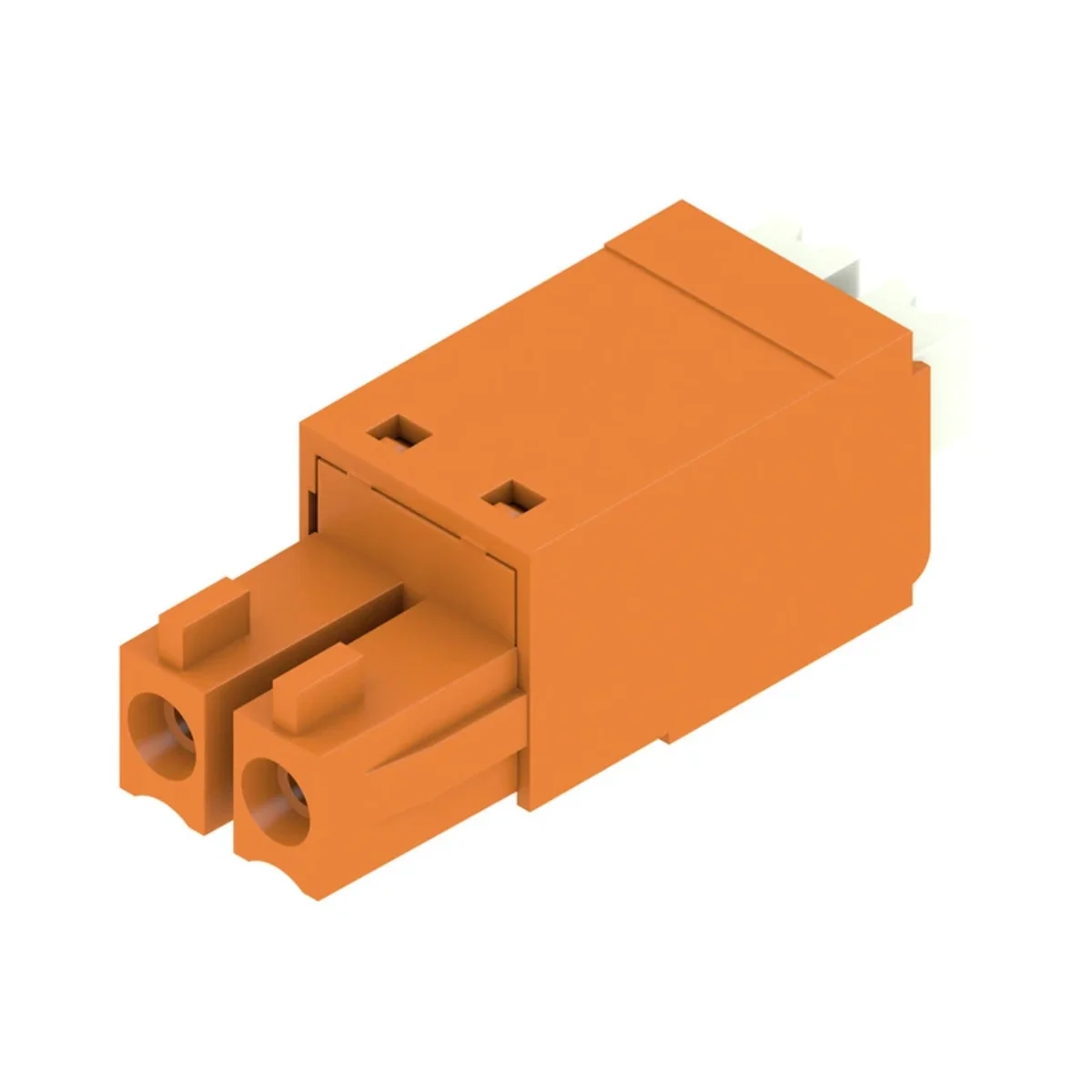

BCF 3.81/02/180 coupling 1969090000

local index:
TEB026WEID
Catalog No:
1969090000
EAN code:
4032248677764
Manufacturer: WEIDMULLER
Pitch [mm]: 3.81
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,31 €
gross / pcs.
(including VAT 23%)
Last lowest price: 1,17 € gross
Base price: 1,17 € gross -74%
Delivery in 3h
Accessible 50 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

PUSH IN - Weidmüller's innovative connector technology simplifies and speeds up the connection of wires. User and application advantages: High packing density due to very low construction heights. Prepared wires simply slide in and you're done High packing density thanks to the compact double-level SCDN / SCDN-THR male connector Simplified processing thanks to integrated Push-Buttons for opening the clamping area Intuitive operation thanks to clear distinction between cable entries and operating points Tool-free locking and release via patented Weidmüller lever (LR) Weidmüller plug-in connectors with a pitch of 3.81 mm (0.15 inch) are compatible with common connectors in terms of their layout and can be labeled and coded. 0.20 - 1.5mm² (IEC) / 28 - 16 AWG (UL) 250V (IEC) / 300V (UL) 17.5A (IEC) / 10A (UL)

Technical data

  • Pitch [mm]
    3.81

Other technical data

  • Type of connection
    Flexible PCB-connector
  • Number of poles
    2
  • Modular spacing contacts
    3.81 mm
  • Angle contact/conductor connection
    180° (horizontal)
  • Rated voltage
    160 V
  • Over voltage category
    III
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.14 ... 1.5 mm²
  • Connectable conductor cross section solid-core
    0.14 ... 1.5 mm²
  • Connectable cable type
    Tubular cable
  • Material contact
    Copper
  • Housing material
    Plastic
  • Housing colour
    Orange
  • Operating temperature
    -50 ... 120 °C
  • Contact type
    Bus
  • Number of plug-in contact rows
    1
  • Modular spacing connections
    3.81 mm
  • Rated current In
    17.5 A
  • Rated surge voltage
    2.5 kV
  • Pollution degree
    2
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 1.5 mm²
  • Type of electric connection
    Push-in clamp connection
  • Material of contact surface
    Tin
  • Material insulation body
    Polyamide (PA)
  • Coating housing
    Other
  • Inflammability class of insulation material according to with UL94
    V0
  • Degree of protection (IP), mounted
    IP20
