el12 Connecting cables and wires Connectors Rail connectors Base terminal block 4-wire 4mm² gray 50pcs.
Base terminal block 4-wire 4mm² gray 50pcs.

Click on the photo to enlarge

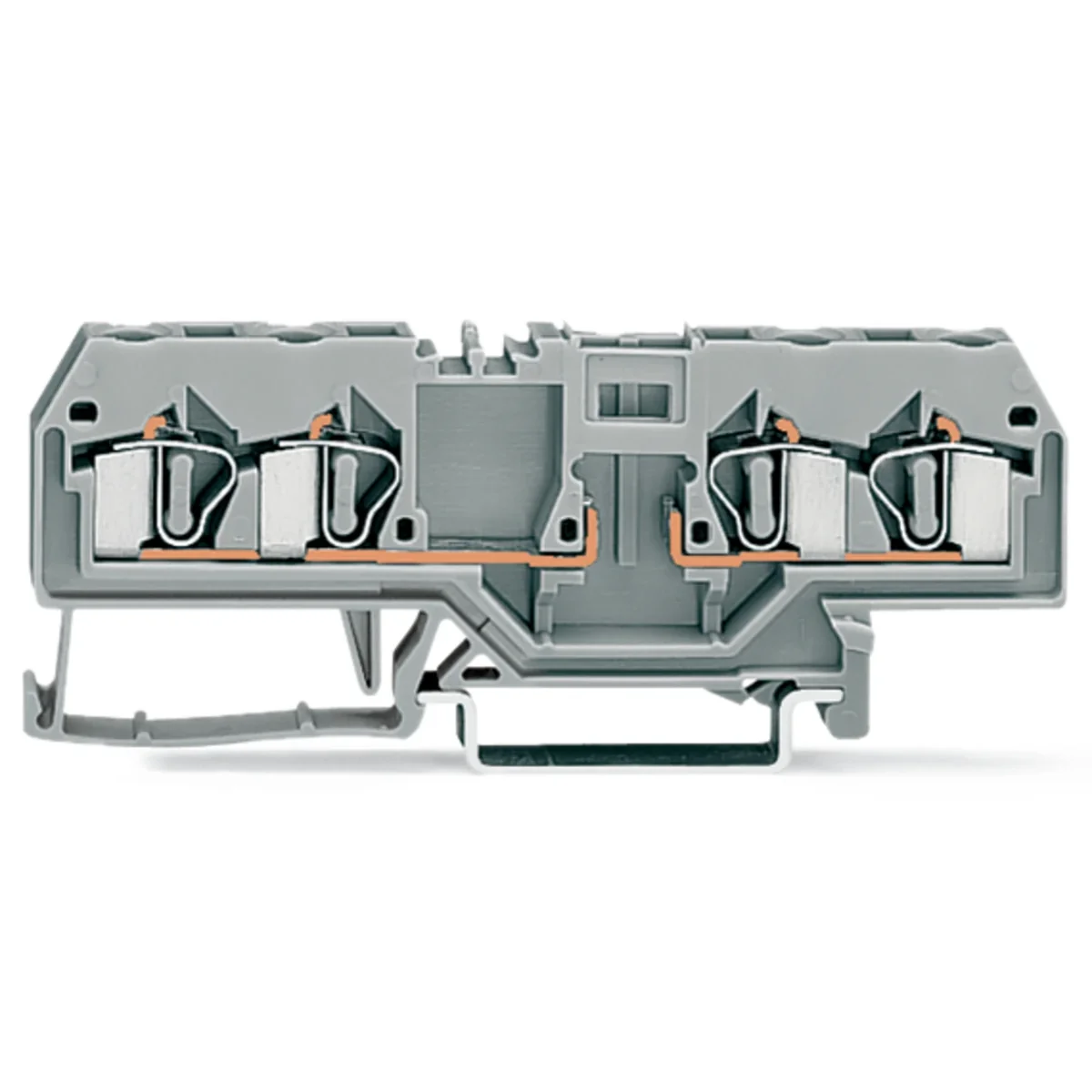

Base terminal block 4-wire 4mm² gray 50pcs.
WAGO ELWAG

Base terminal block 4-wire 4mm² gray 50pcs. 281-656

local index:
TES161WAGO
Catalog No:
281-656
EAN code:
4050821214915
Price:
223,17 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

4-wire base connector.

Print the product sheet Report an error

Technical data

  • Color
    Gray
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Series
    281
  • Pieces in the package
    50
  • Rated impulse voltage [kV]
    6
  • Rated current [A]
    10
  • Clamp type
    CAGE CLAMP
  • Dirt zone
    3
  • Weight [g]
    13.015

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6 mm
  • Length
    86 mm
  • Closing plate required
    yes
  • Internally connected stages
    no
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    10 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    29 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Grey
