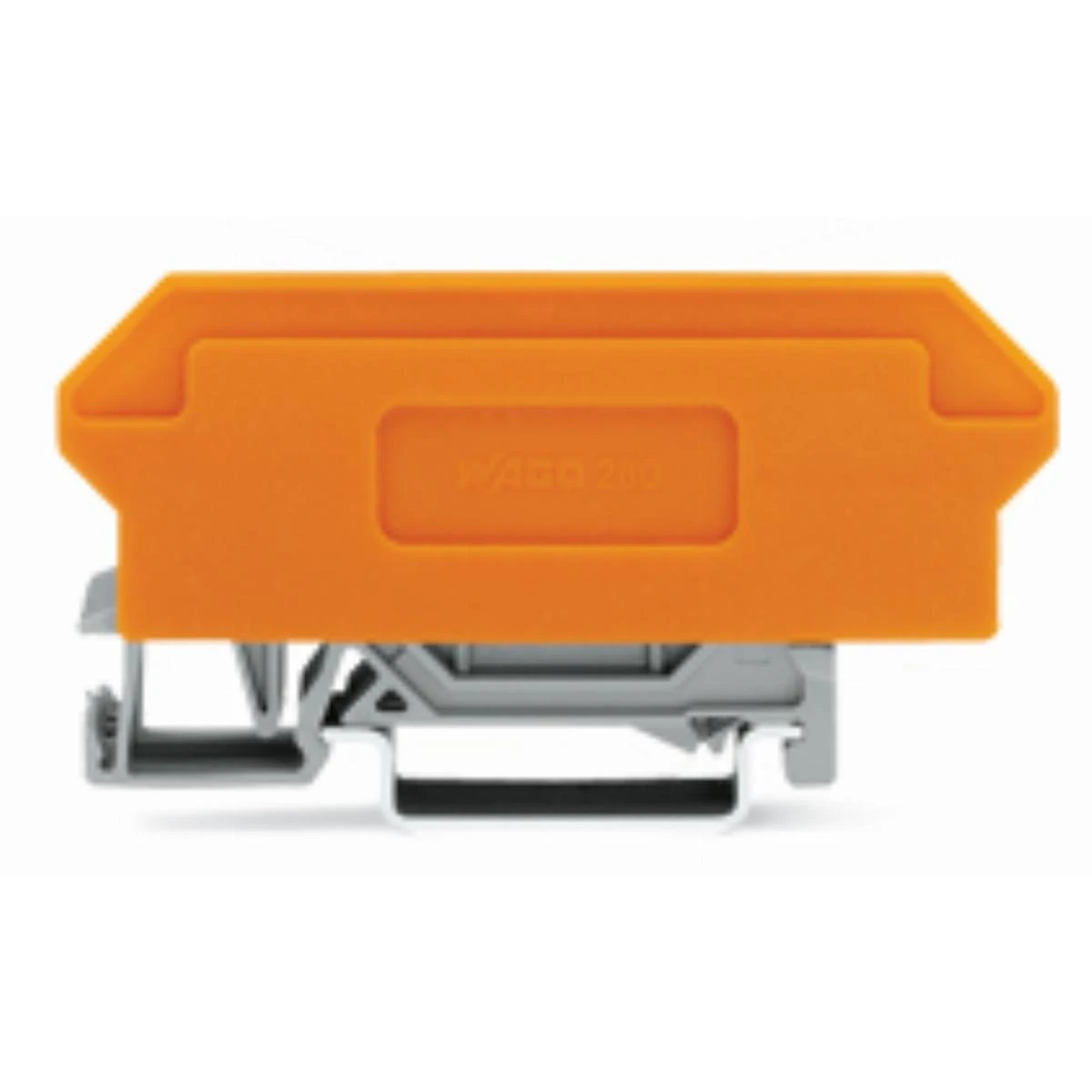

Base socket with 4-wire connectors 280-628

local index:
TEB324WAGO
Catalog No:
280-628
EAN code:
4044918636384
Manufacturer: WAGO ELWAG
Stripping length [mm]: 0.33
Depth [mm]: 73
Color: Gray
Price:
10,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Base socket with 4-wire connectors

Technical data

  • Stripping length [mm]
    0.33
  • Color
    Gray
  • Maximum voltage [V]
    400
  • Surge voltage [kV]
    6
  • Rated current [A]
    10
  • Type of wiring
    Front wiring
  • Degree of contamination
    3
  • Wire connection technique
    CAGE CLAMP
  • Accurate color
    Gray
  • Minimum stripping length [mm]
    8
  • Depth [mm]
    73
  • Number of potentials
    2
  • Installation
    On the TH-35 rail
  • Fire load [MJ]
    0.639
  • Gauge [AWG]
    28
  • Series
    280
  • Width [mm]
    22
  • Height [mm]
    28
  • Maximum stripping length [mm]
    9
  • Number of connectors
    4

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    22 mm
  • Length
    73 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Rated current In
    10 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    16
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    28 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey

Bulk packaging

A kind of package Karton
Quantity 20 pcs.
Weight (kg) 0,763
Volume (m3) 0,002
Width (m) 0,155
Length (m) 0,275
Depth (m) 0,048
