Automotive fuse connector 282-698/281-434

local index:
TEB946WAGO
Catalog No:
282-698/281-434
EAN code:
4050821234586
Manufacturer: WAGO ELWAG
Length [mm]: 85
Color: Gray
Rated current [A]: 25
Price:
242,51 €
gross / pkg.
(including VAT 23%)
9,70 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

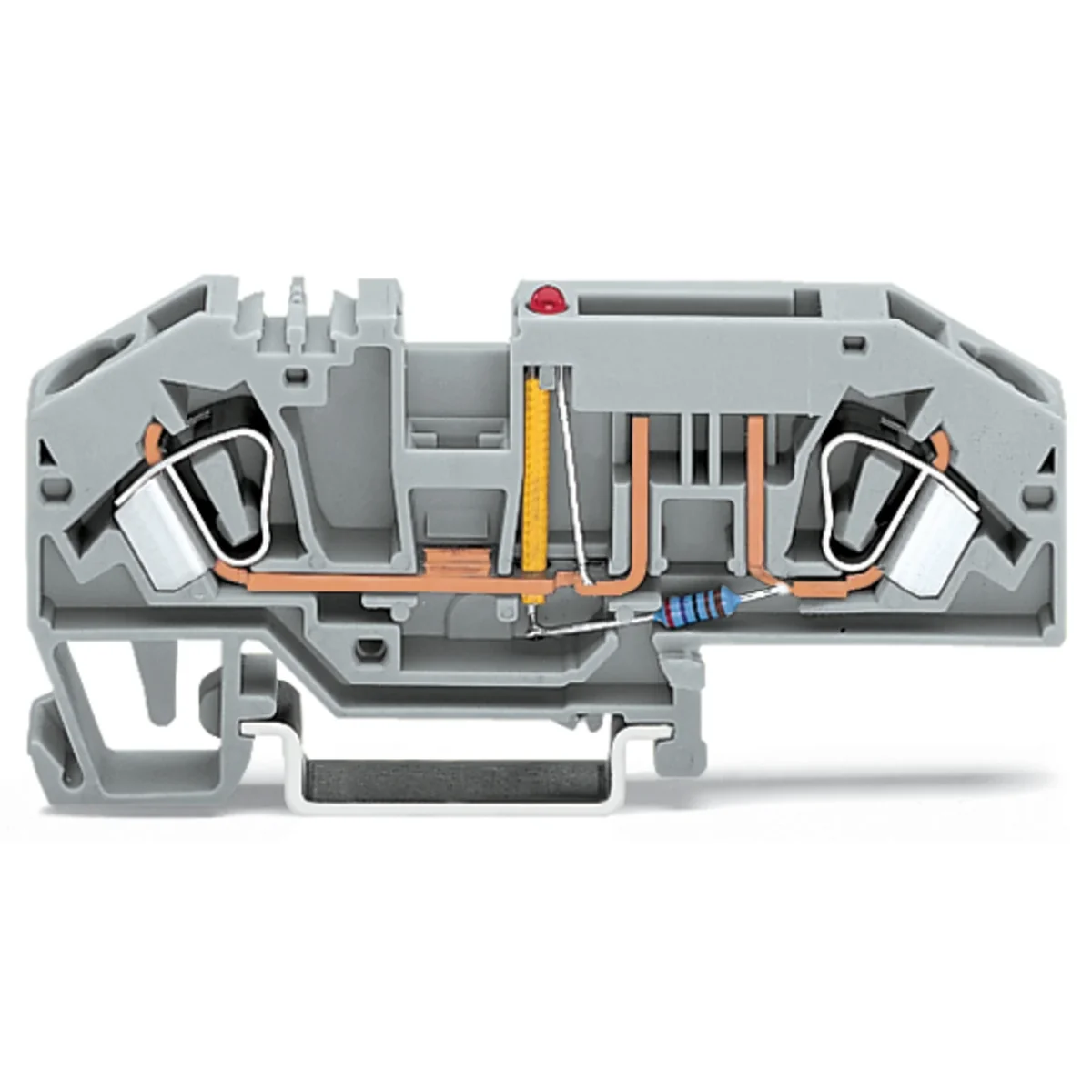

Automotive fuse connector

Technical data

  • Length [mm]
    85
  • Rated current [A]
    25
  • Cross-section of the connected stranded wire without ferrule [mm]
    0.2-6
  • Type of electrical connection
    Spring clip
  • Type of trip indicator
    LED
  • Pieces in the package
    25
  • Color
    Gray
  • Cross-section of connected single-wire cable [mm]
    0.2 - 6
  • Cross-section of the connected stranded wire with a ferrule [mm]
    0.5 - 4
  • Type of fuse link
    Flat fuse
  • Series
    282
  • Accurate color
    Gray

Other technical data

  • Type of fuse insert
    Blade fuse

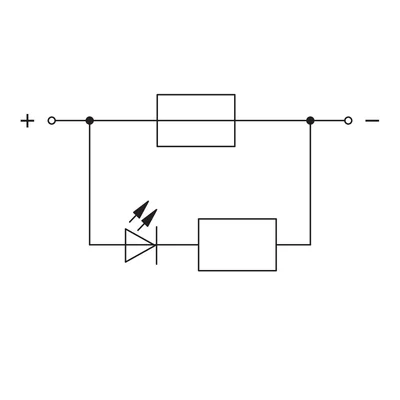

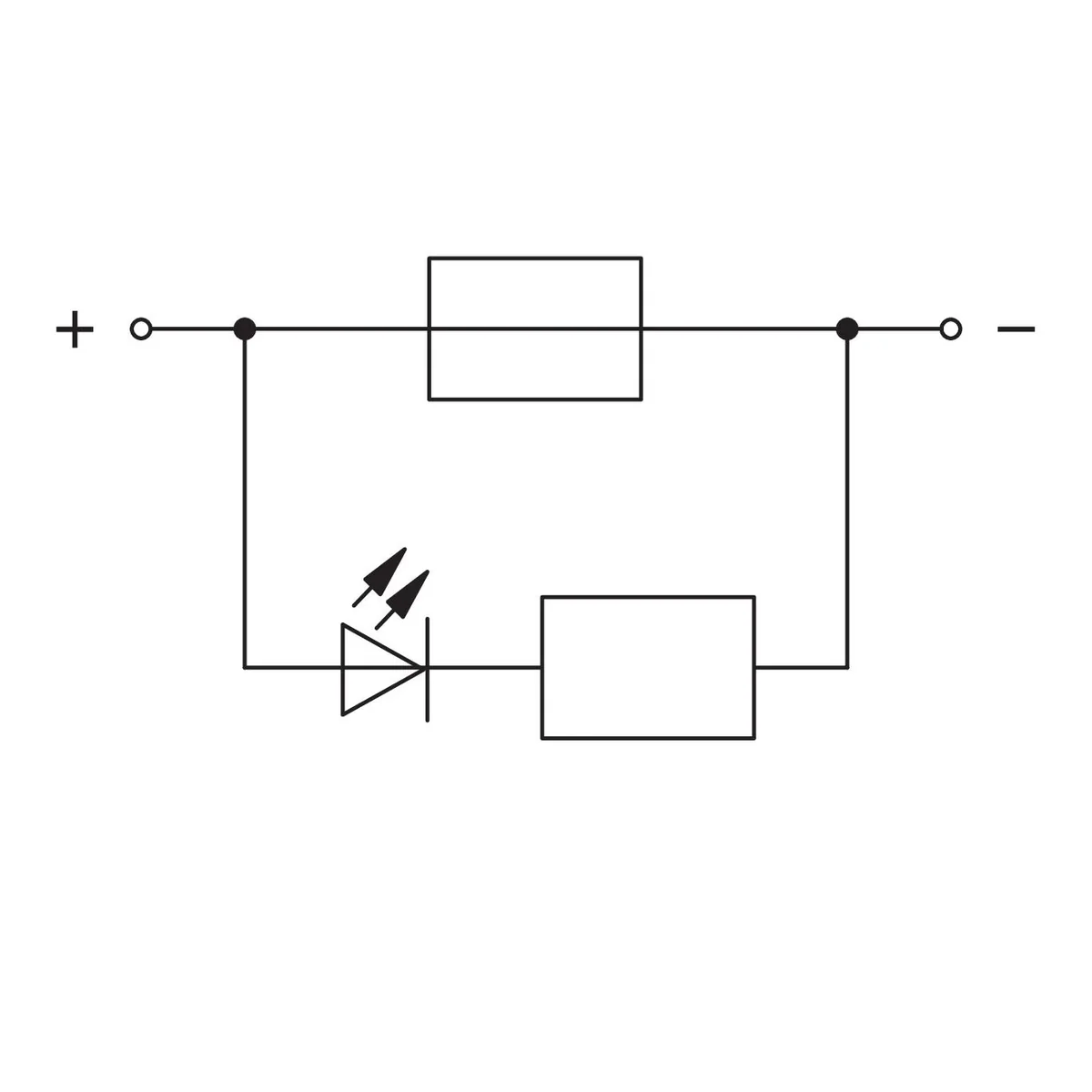

  • Type of indication element for defect indication
    LED
  • Voltage type for defect indication
    DC
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.2 ... 6 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Spring clamp connection
  • Connection position
    Inclined
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    33.5 mm
  • Closing plate required
    Yes
  • Type of fuse holder
    Pluggable
  • Supply voltage for defect-indication
    24 ... 24 V
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2 ... 6 mm²
  • Connectable conductor cross section solid-core
    0.2 ... 6 mm²
  • Rated current In
    25 A
  • Type of electrical connection 1
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    8 mm
  • Length
    85 mm
  • Colour
    Grey

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,492
Volume (m3) 0,001
Width (m) 0,087
Length (m) 0,210
Depth (m) 0,042
