AL/CU threaded terminal block, 6 - 95mm2, TS 35, 1 track, 2 terminal holes 89709003

Name: AL/CU threaded terminal block, 6 - 95mm2, TS 35, 1 track, 2 terminal holes
Brand: SIMET
SKU: TES021SIME
Price: 70.28 PLN
Availability: OutOfStock

Índice local:

TES021SIME

Número de catálogo:

89709003

Código EAN:

5907813226977

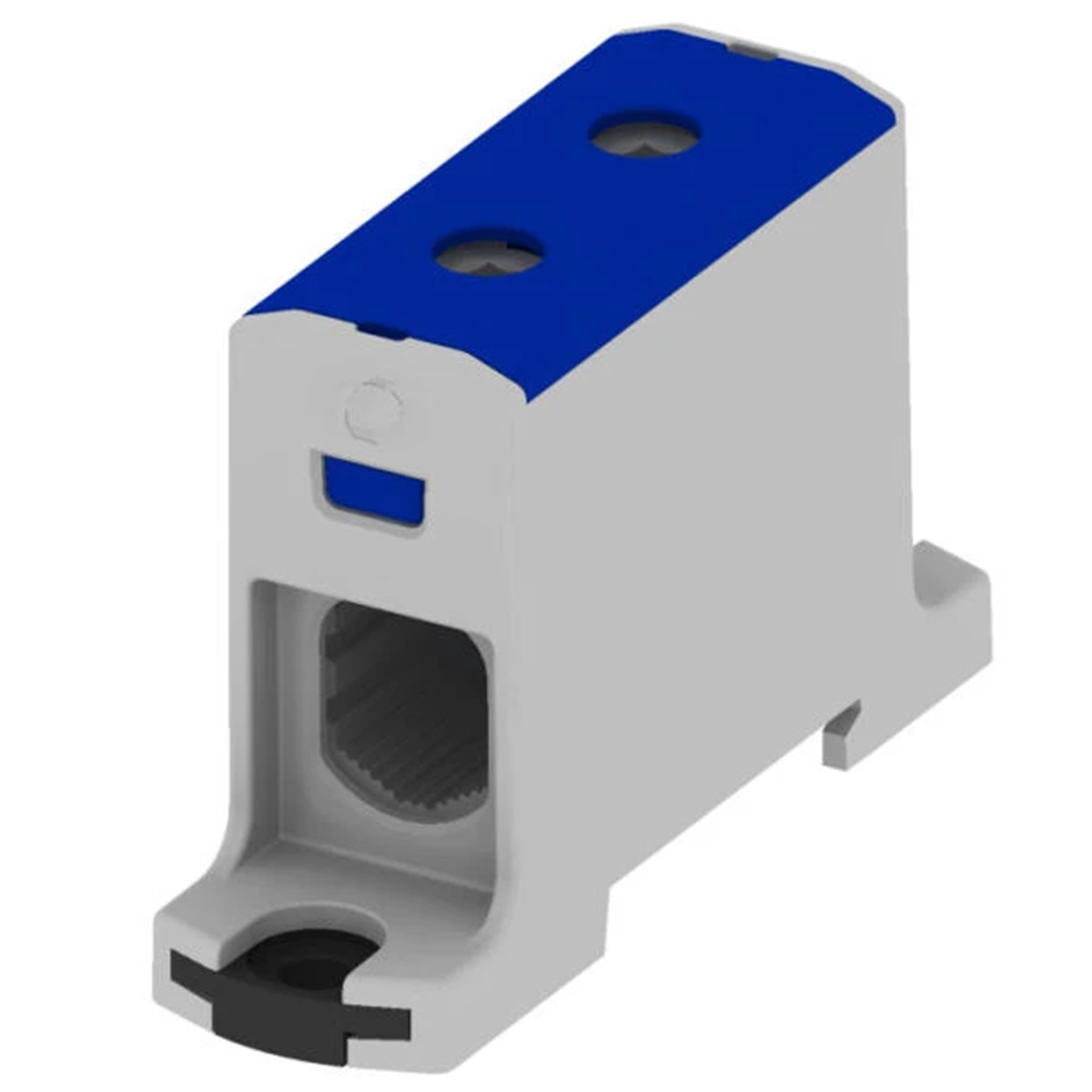

AL/CU threaded terminal block, 6 - 95mm2, TS 35, 1 track, 2 terminal holes

Haga clic en la foto para ampliar

Fabricante: SIMET

Color: Blue

Rated current [A]: 245

Nominal cross-section [mm²]: 95

Ver descripción completa

Precio:

70,28 zł

gross / uds.

(IVA incluido 23%)

Fuera de stock

Añadir a solicitud de presupuesto

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante

Descripción del producto

AL/CU threaded terminal block, 6 - 95mm2, TS 35, 1 track, 2 terminal holes

Datos técnicos

Color

Blue
Nominal cross-section [mm²]

95
Accurate color

Blue

Rated current [A]

245
Libra

65
PKWIU

27.33.13.0

Otros datos técnicos

Connectable conductor cross section fine-strand without cable end sleeve

10 ... 95 mm²
Connectable conductor cross section solid-core

10 ... 95 mm²
Rated current In

220 A
Type of electrical connection 1

Screw connection
Connection position

Sideways
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Wysokość przy najniższym sposobie montażu

43 mm
Explosion-tested version 'Ex e'

No
Colour

Blue

Connectable conductor cross section fine-strand with cable end sleeve

0 ... 0 mm²
Connectable conductor cross section multi-wired

10 ... 95 mm²
Rated voltage

1000 V
Type of electrical connection 2

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Width/grid dimension

49 mm
Length

49 mm
Closing plate required

No
Internally connected stages

Yes
