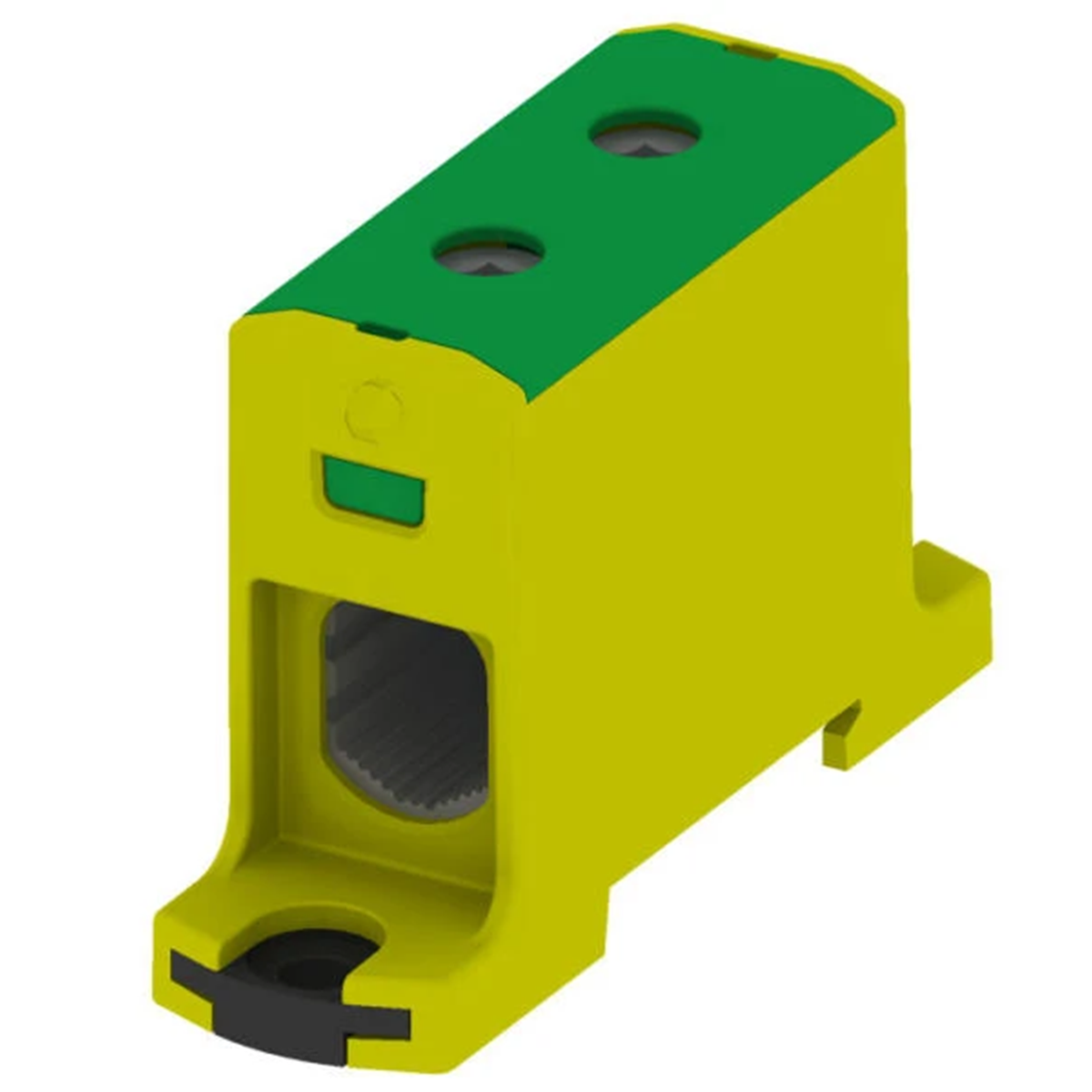

AL/CU threaded terminal block, 35 - 240mm2, TS 35, 1 track, 2 holes clamp 89716009

local index:
TES015SIME
Catalog No:
89716009
EAN code:
5907813227202
Manufacturer: SIMET
Color: Yellow-green
Rated current [A]: 425
Nominal cross-section [mm²]: 240
Price:
46,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

AL/CU threaded terminal block, 35 - 240mm2, TS 35, 1 track, 2 holes clamp

Technical data

  • Color
    Yellow-green
  • Nominal cross-section [mm²]
    240
  • Accurate color
    Yellow green
  • Rated current [A]
    425
  • Libra
    195
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    35 ... 240 mm²
  • Connectable conductor cross section solid-core
    35 ... 240 mm²
  • Rated current In
    380 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    65 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Green
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    35 ... 240 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    37 mm
  • Length
    106 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes

Manufacturer details

  • Manufacturer
    SIMET S.A.
  • Address
    58-506 Jelenia Góra al. Jana Pawła II 33
  • Tax identification number
    6112112204
