AL/CU threaded terminal block, 25 - 150mm2, TS 35, 1 track, 2 holes clamp 89711002

Name: AL/CU threaded terminal block, 25 - 150mm2, TS 35, 1 track, 2 holes clamp
Brand: SIMET
SKU: TES023SIME
Price: 31.03 PLN

local index:

TES023SIME

Catalog No:

89711002

EAN code:

5907813227110

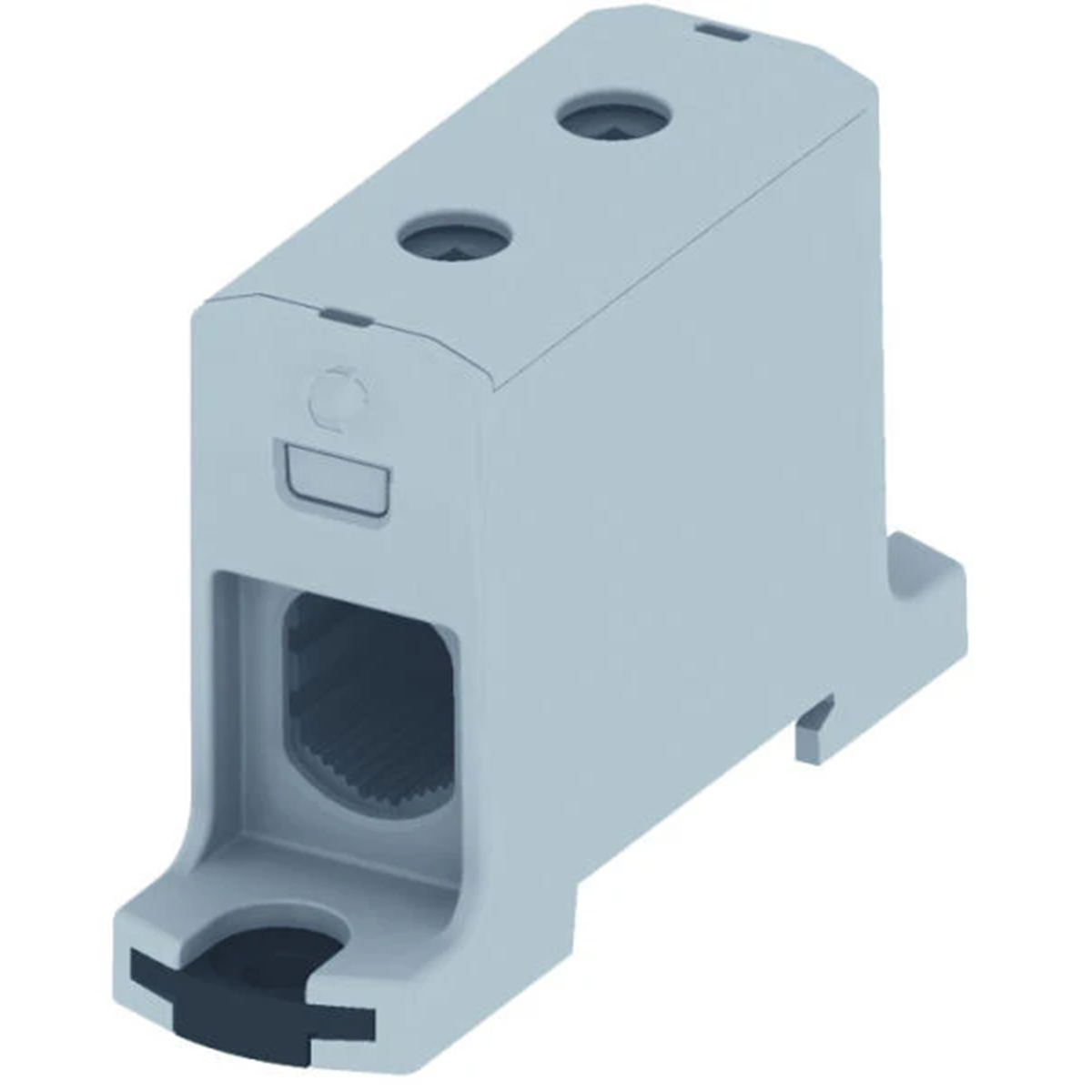

Click on the photo to enlarge

Manufacturer: SIMET

Color: Gray

Rated current [A]: 320

Nominal cross-section [mm²]: 150

See full description

Price:

31,03 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

Out of stock

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

AL/CU screw terminal block, 25 - 150mm2, TS 35, 1 track, 2 holes terminal

Connectable conductor cross section fine-strand without cable end sleeve

25 ... 150 mm²
Connectable conductor cross section solid-core

25 ... 150 mm²
Rated current In

290 A
Type of electrical connection 1

Screw connection
Connection position

Sideways
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Wysokość przy najniższym sposobie montażu

54 mm
Explosion-tested version 'Ex e'

No
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

0 ... 0 mm²
Connectable conductor cross section multi-wired

25 ... 150 mm²
Rated voltage

690 V
Type of electrical connection 2

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Width/grid dimension

31 mm
Length

84 mm
Closing plate required

No
Internally connected stages

Yes
