SIMET

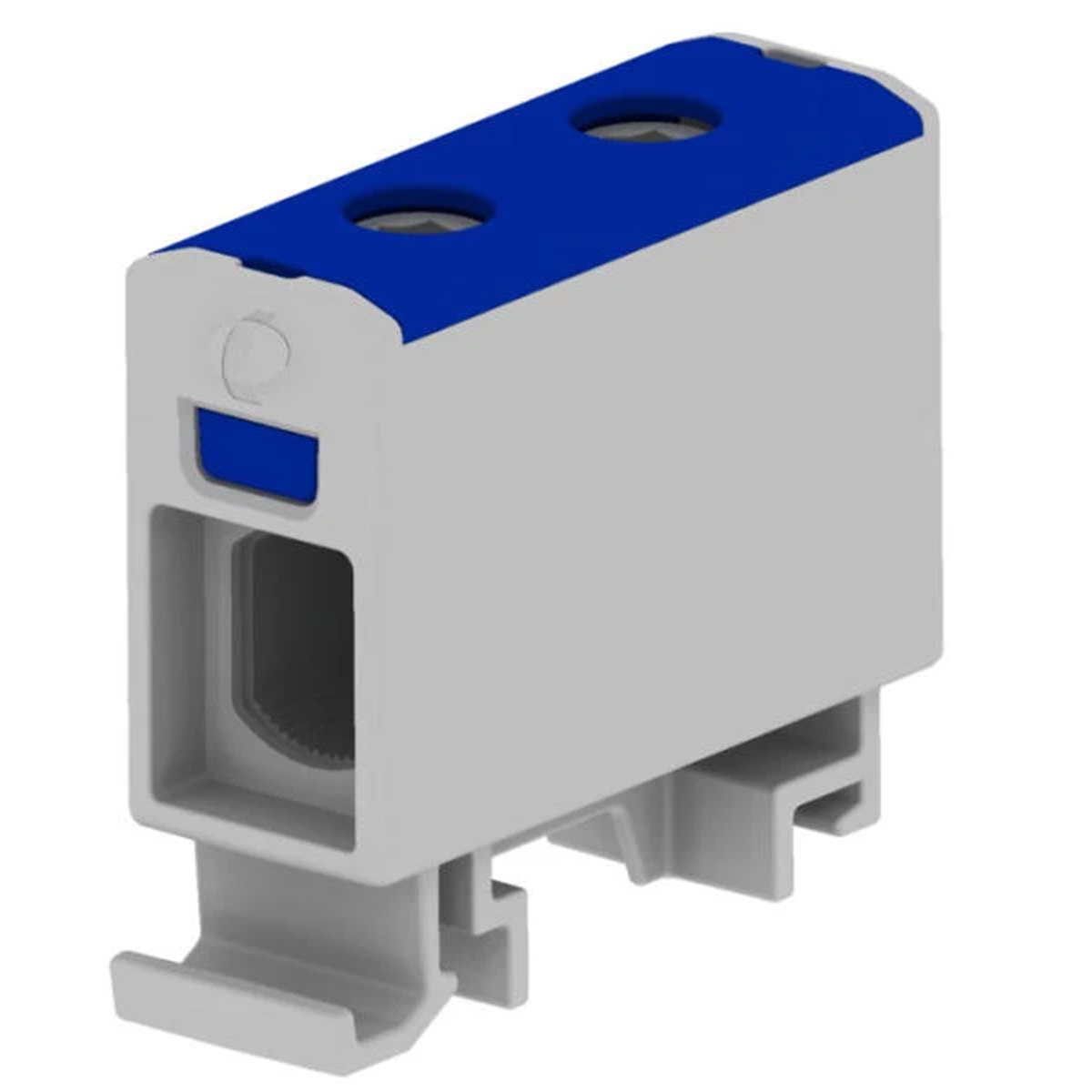

AL/CU threaded terminal block, 1.5 - 16 mm2, TS 35, 1 track, 2 holes clamp 89702003

local index:
TES002SIME
Catalog No:
89702003
EAN code:
5907813226717
Price:
6,77 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

AL/CU threaded terminal block, 1, 5 - 16 mm2, TS 35, 1 track, 2 holes terminal

Technical data

  • Color
    Blue
  • Nominal cross-section [mm²]
    16
  • Accurate color
    Blue
  • Rated current [A]
    82
  • Libra
    15

Other technical data

  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    1,5 ... 16 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of poles
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    13.5 mm
  • Length
    45 mm
  • Colour
    Blue
  • Transparent
    no
  • Connectable conductor cross section fine-strand without cable end sleeve
    1,5 ... 16 mm²
  • Connectable conductor cross section solid-core
    1,5 ... 16 mm²
  • Rated current In
    82 A
  • Type of electrical connection 1
    Screw connection
  • Number of levels
    1
  • Number of clamp positions per level
    2
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    39.5 mm
  • Closing plate required
    no
  • Internally connected stages
    yes
