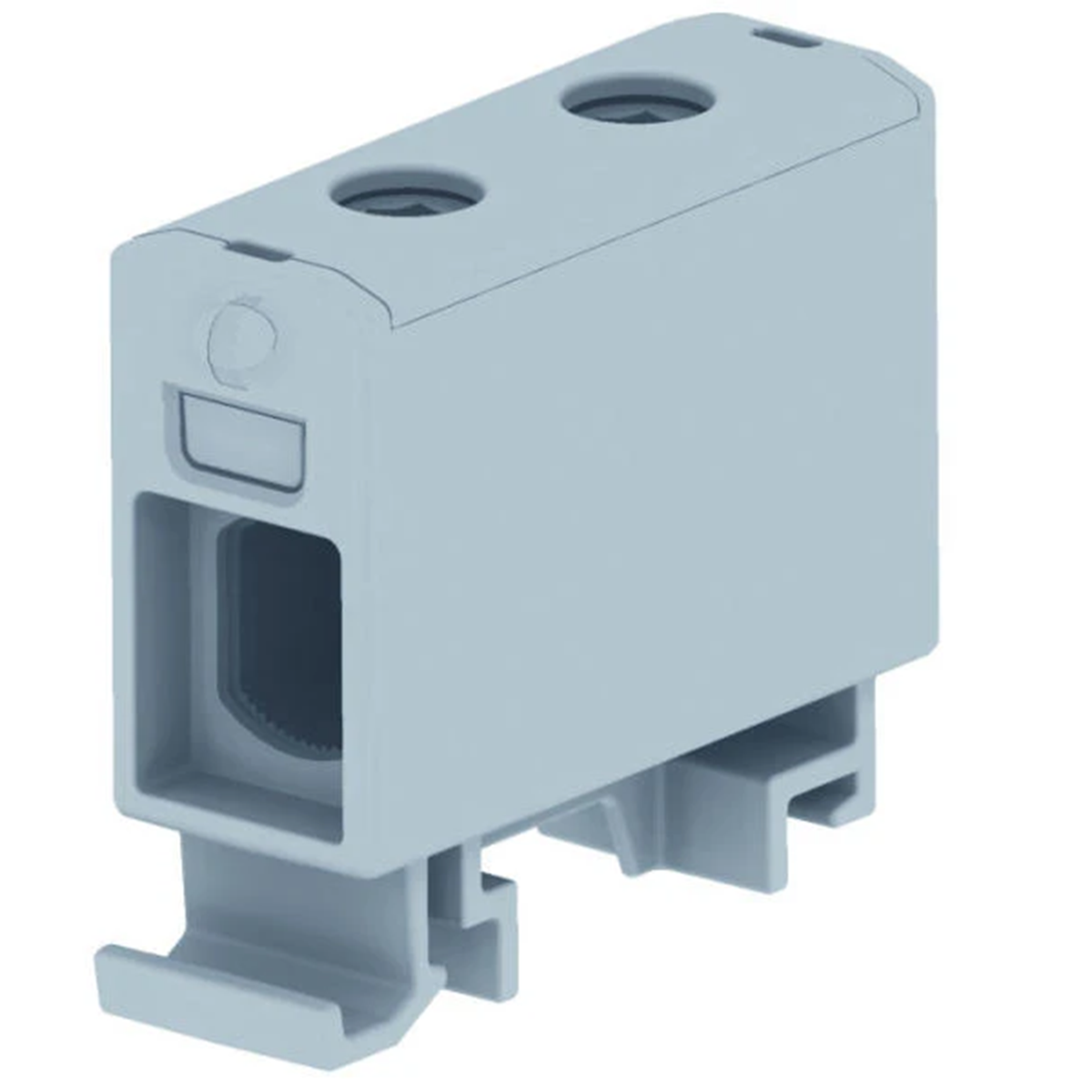

AL/CU threaded terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 terminal holes 89704002

Name: AL/CU threaded terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 terminal holes
Brand: SIMET
SKU: TES028SIME
Price: 8.81 PLN

local index:

TES028SIME

Catalog No:

89704002

EAN code:

5907813226854

Click on the photo to enlarge

Manufacturer: SIMET

Color: Gray

Rated current [A]: 150

Nominal cross-section [mm²]: 50

See full description

Price:

8,81 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

Out of stock

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

AL/CU threaded terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 terminal holes

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0 ... 0 mm²
Connectable conductor cross section multi-wired

4 ... 50 mm²
Rated voltage

1000 V
Type of electrical connection 2

Screw connection
Connection position

Sideways
Mounting method

DIN rail (top hat rail) 35 mm
Width/grid dimension

18 mm
Length

50 mm
Colour

Grey
Transparent

No

Connectable conductor cross section fine-strand without cable end sleeve

4 ... 50 mm²
Connectable conductor cross section solid-core

4 ... 50 mm²
Rated current In

145 A
Type of electrical connection 1

Screw connection
Number of levels

1
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Wysokość przy najniższym sposobie montażu

43 mm
Closing plate required

No
Internally connected stages

Yes
