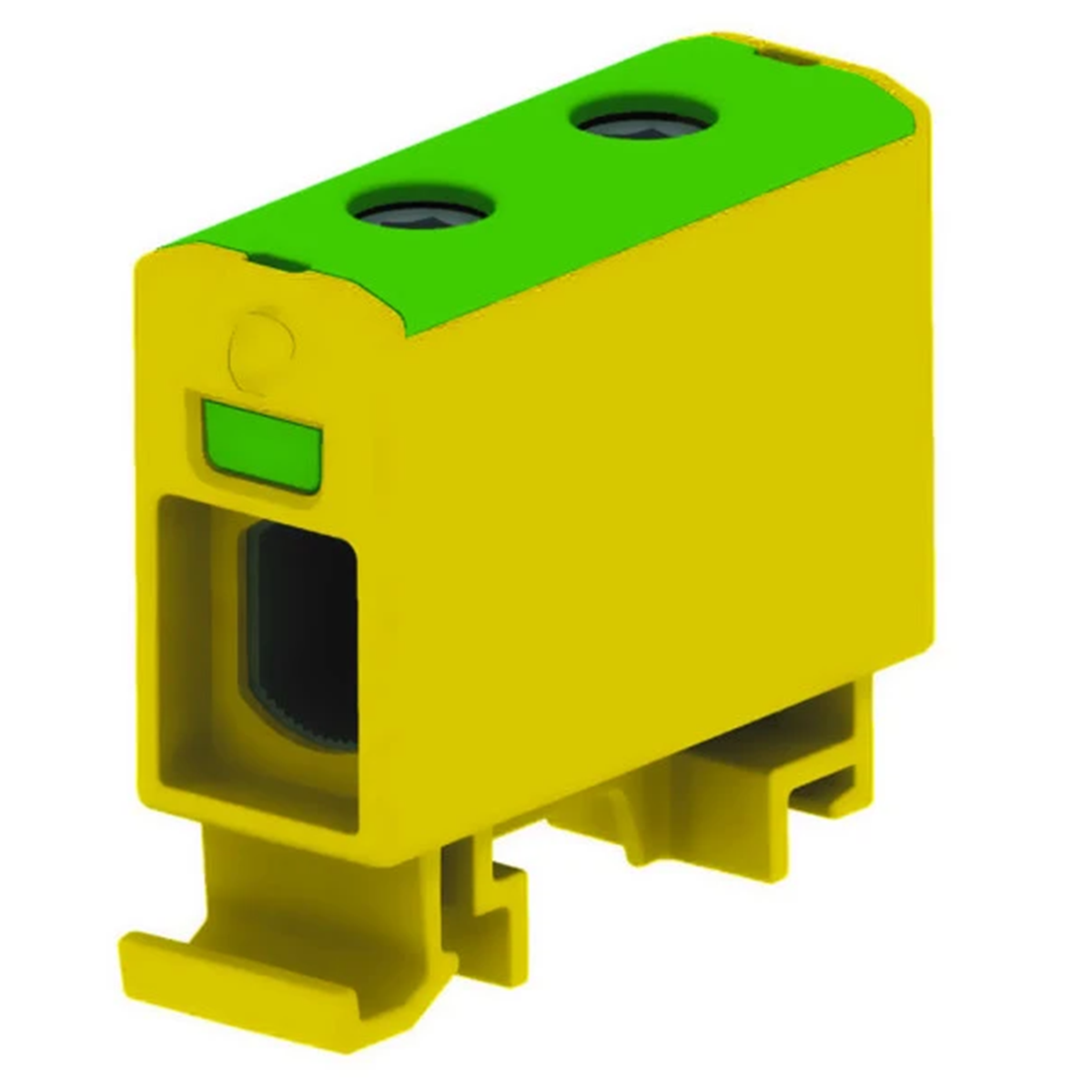

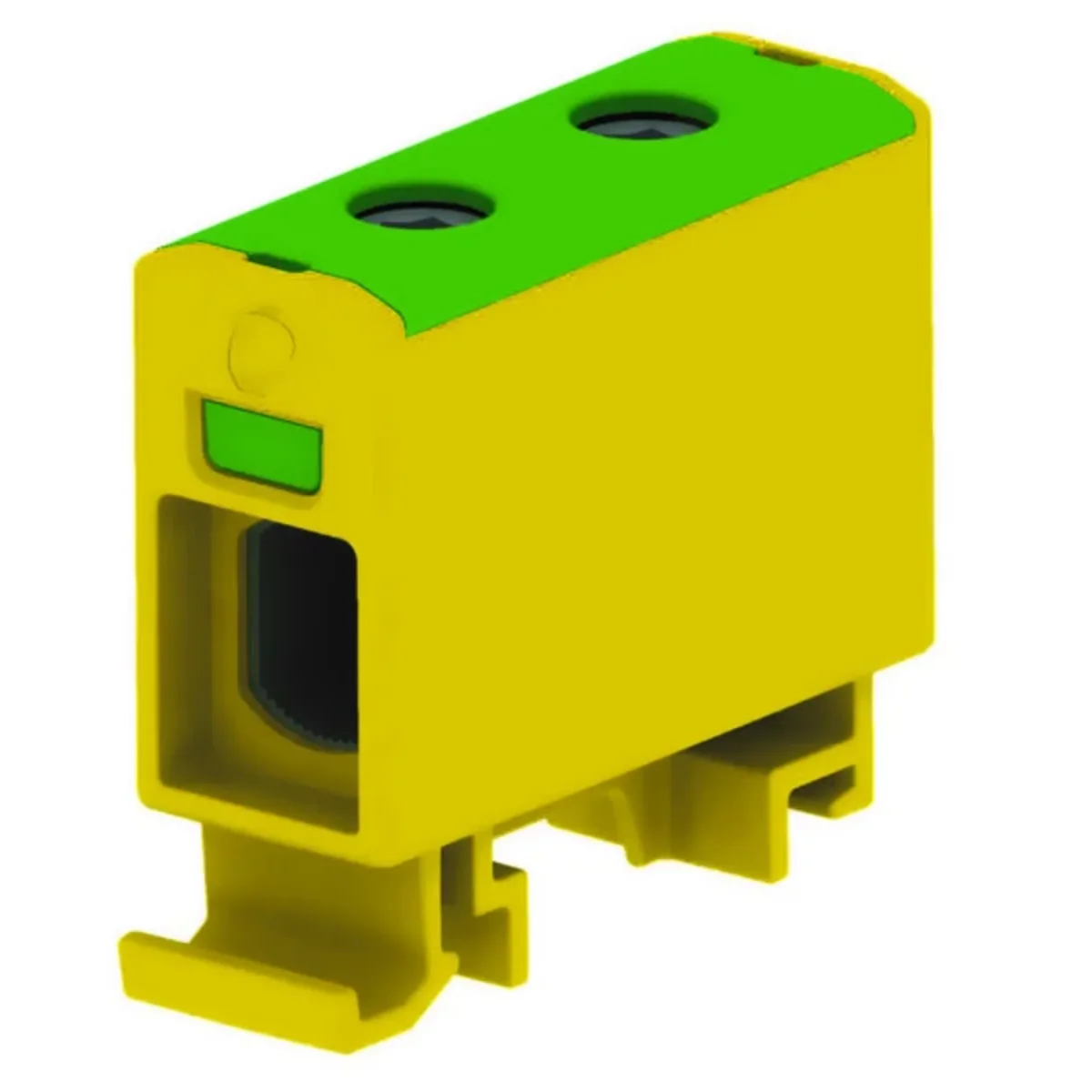

AL/CU threaded terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 holes clamp, yellow 89706009

local index:
TES029SIME
Catalog No:
89706009
EAN code:
5907813226939
Manufacturer: SIMET
Color: Yellow-green
Rated current [A]: 150
Nominal cross-section [mm²]: 50
Price:
8,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description


AL/CU screw terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 holes terminal

Technical data

  • Color
    Yellow-green
  • Nominal cross-section [mm²]
    50
  • Accurate color
    Yellow green
  • Rated current [A]
    150
  • Libra
    thirty
  • PKWIU
    27.33.13.0

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    4 ... 50 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of poles
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    18 mm
  • Length
    50 mm
  • Colour
    Green/yellow
  • Transparent
    No
  • Connectable conductor cross section fine-strand without cable end sleeve
    4 ... 50 mm²
  • Connectable conductor cross section solid-core
    4 ... 50 mm²
  • Rated current In
    145 A
  • Type of electrical connection 1
    Screw connection
  • Number of levels
    1
  • Number of clamp positions per level
    2
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    43 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes

Manufacturer details

  • Manufacturer
    SIMET S.A.
  • Address
    58-506 Jelenia Góra al. Jana Pawła II 33
  • Tax identification number
    6112112204
