Connecting cables and wires
Connectors
Rail connectors

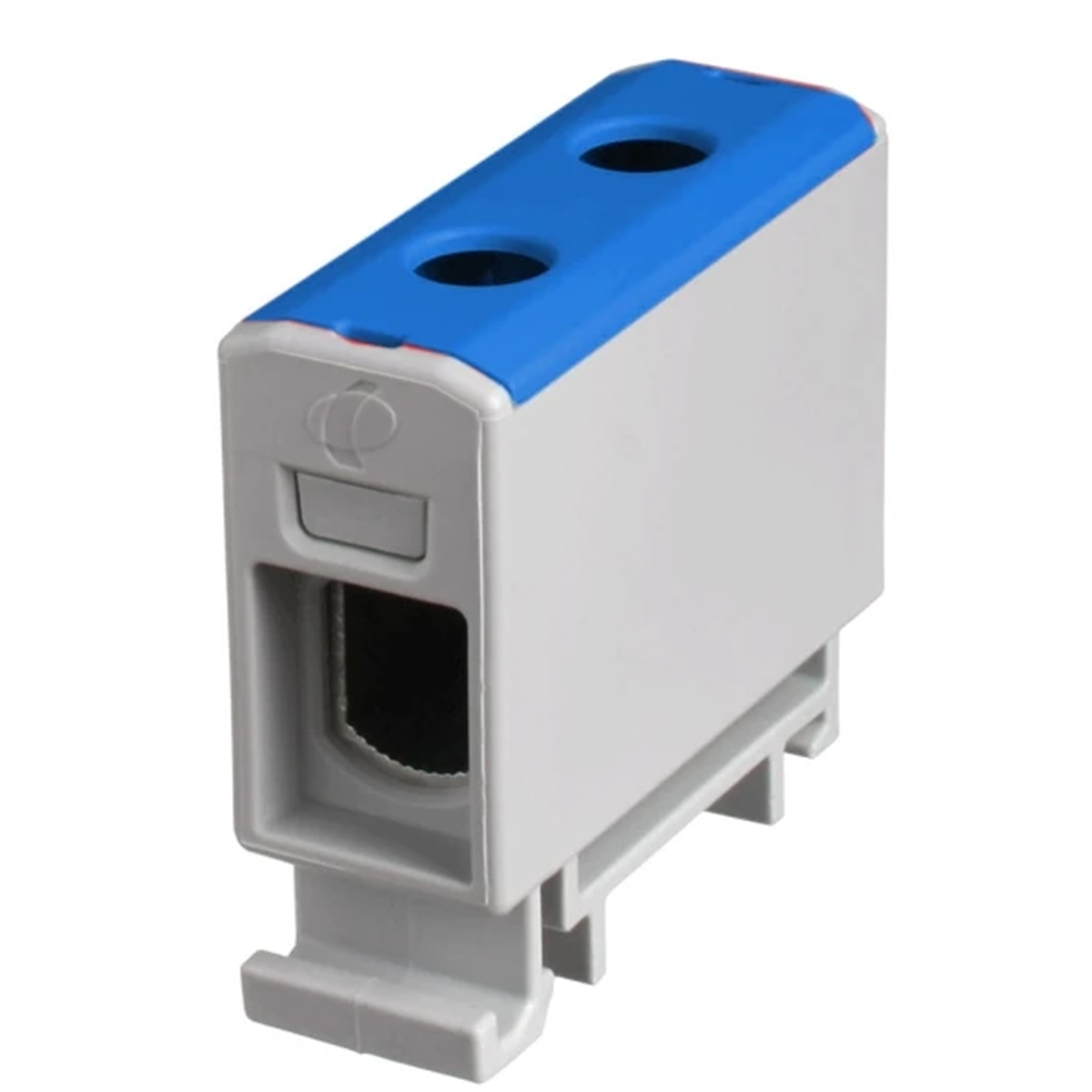

AL/CU threaded terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 holes clamp 89705003
local index:
TES024SIME
Catalog No:
89705003
EAN code:
5907813226878
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Blue
Rated current [A]:
150
Nominal cross-section [mm²]:
50
See full description
Price:
8,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Discontinued product, ask for a replacement
Add to inquiry
Print
Ask about the product
Product description
Technical data
Manufacturer details
Product description
AL/CU threaded terminal block, 1, 5 - 50 mm2, TS 35, 1 track, 2 holes clamp
Expand full description ▼
Technical data
Color
Blue
Nominal cross-section [mm²]
50
Accurate color
Blue
Rated current [A]
150
Libra
thirty
PKWIU
27.33.13.0
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
4 ... 50 mm²
Connectable conductor cross section solid-core
4 ... 50 mm²
Rated current In
145 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per level
2
Number of poles
1
Number of clamp positions per pole
2
Wysokość przy najniższym sposobie montażu
61 mm
Explosion-tested version 'Ex e'
No
Colour
Blue
Transparent
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
4 ... 50 mm²
Rated voltage
1000 V
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Width/grid dimension
41 mm
Length
43 mm
Closing plate required
No
Internally connected stages
Yes
Expand Technical Data ▼
