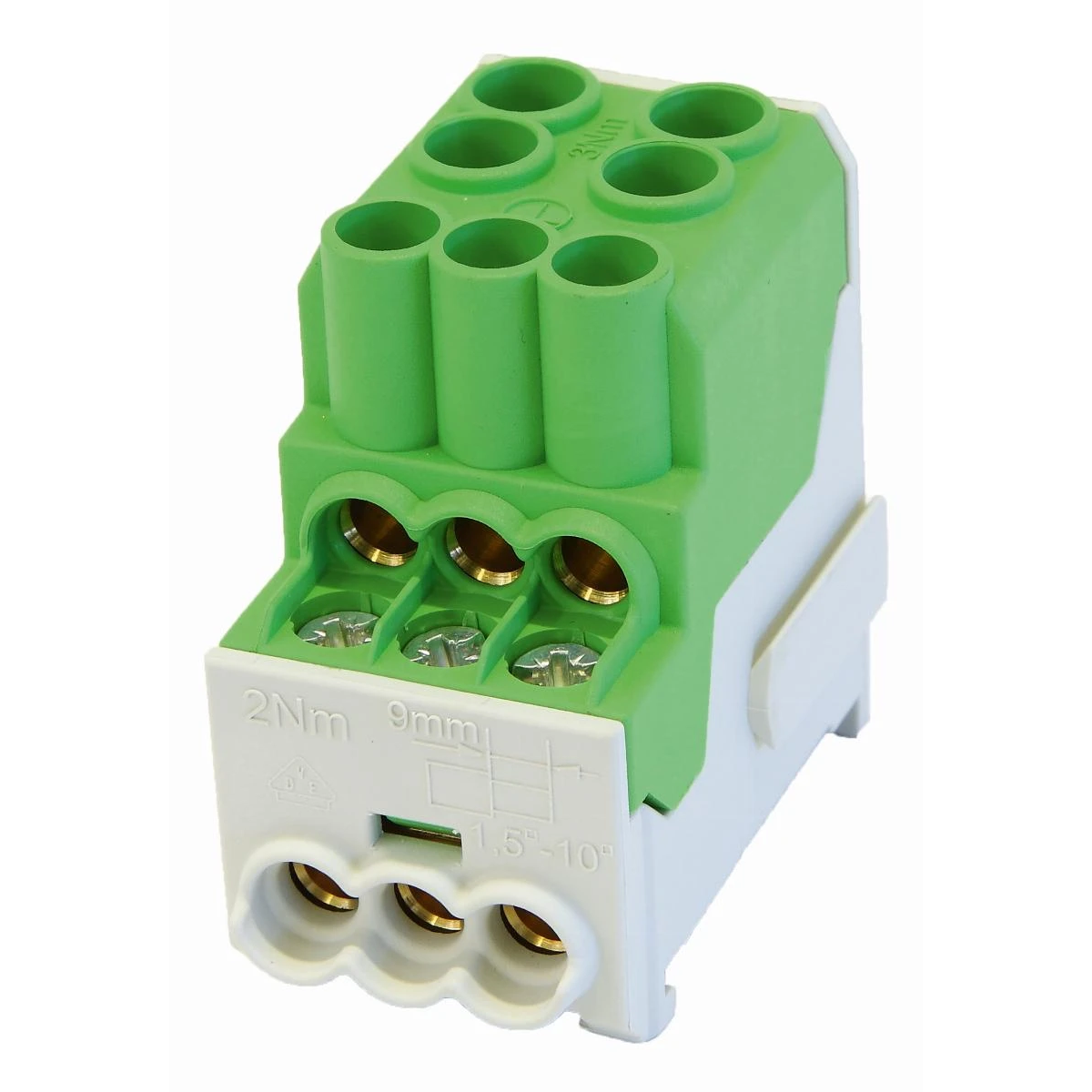

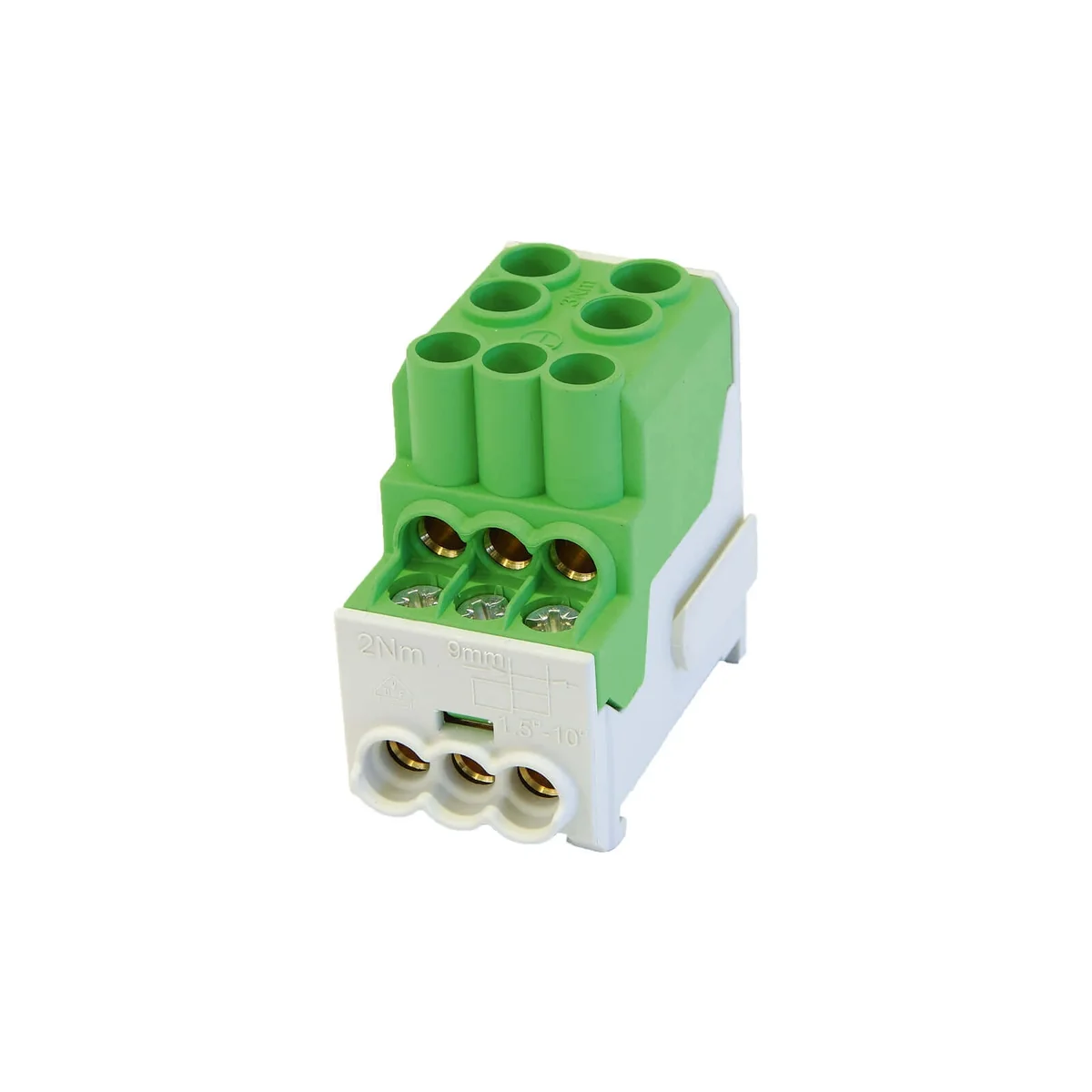

Al/Cu distribution block SDB 100 SIMBLOCK green 81601005
local index:
TES125SIME
Catalog No:
81601005
EAN code:
5907813233340
Price:
11,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Distribution block - Al/Cu 80010 SIMBLOCK greenis a device that distributes energy and power coming from one main circuit into several smaller ones.
Application in :
- manufacturing plants switchgear
- wind power plants
- solar technologies < /li>
- automation production processes.
Intended for:
- solid wires,
- multi-core cables,
- flexible cables,
- copper and aluminum cables.

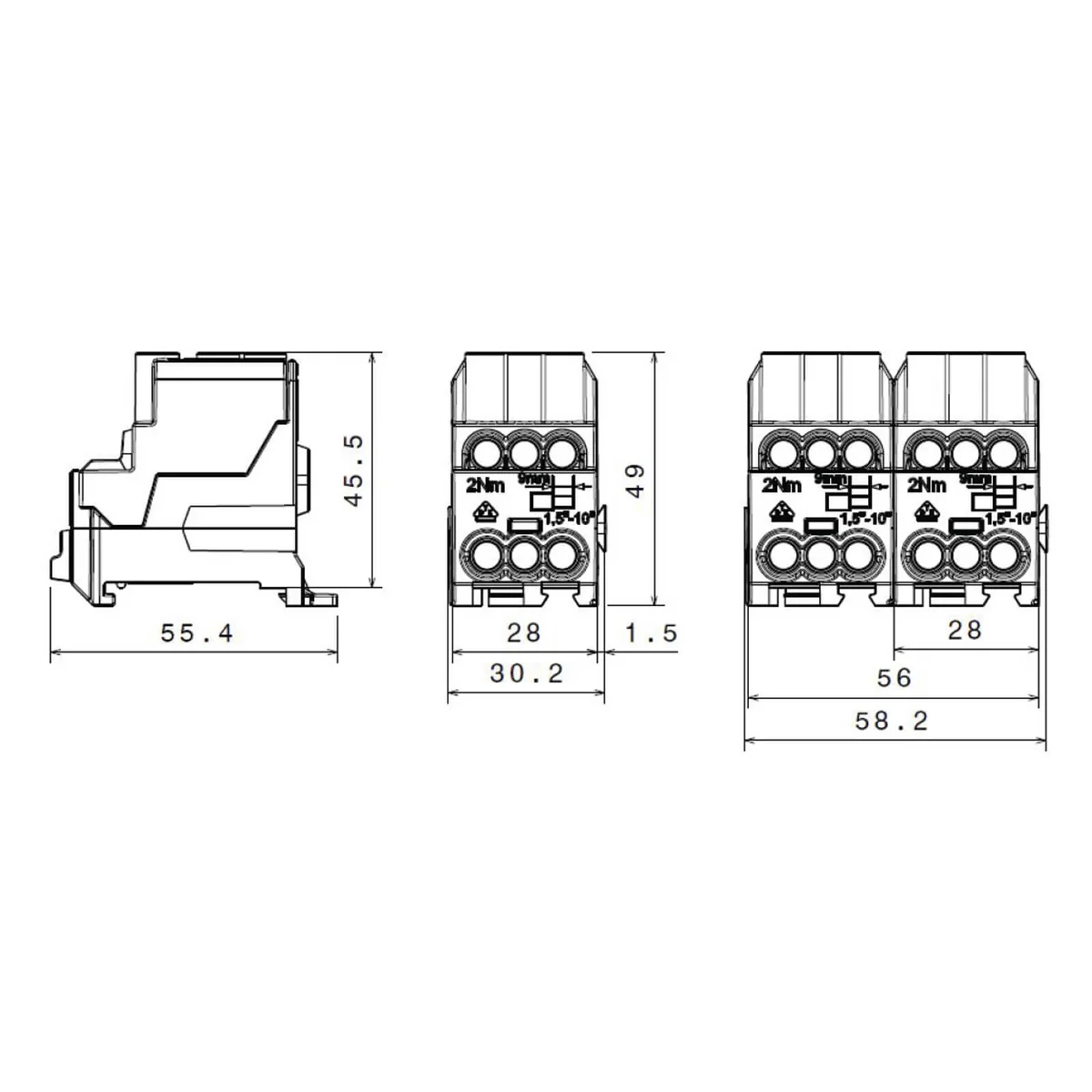

Technical data
-
Depth [mm]55.4
-
ColorGreen
-
Rated voltage [V]1000
-
Height [mm]49
-
Rated current Al [A]100
-
PKWIU27.33.13.0
-
Number of terminals8
-
InstallationOn the TH-35 rail
-
Width [mm]30.2
-
Wire cross-section [mm²]25
-
Rated current Cu [A]101
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
E-mail
Bulk packaging
| A kind of package | Pakiet |
| Quantity | 1 pcs. |
| Width (m) | 0,030 |
| Length (m) | 0,055 |
