A2C 2.5 Through rail connector, catalog number 1521850000 1521850000

Name: A2C 2.5 Through rail connector, catalog number 1521850000
Brand: WEIDMULLER
SKU: TES148WEID
Price: 2.47 PLN
Availability: BackOrder

Índice local:

TES148WEID

Número de catálogo:

1521850000

Código EAN:

4050118328080

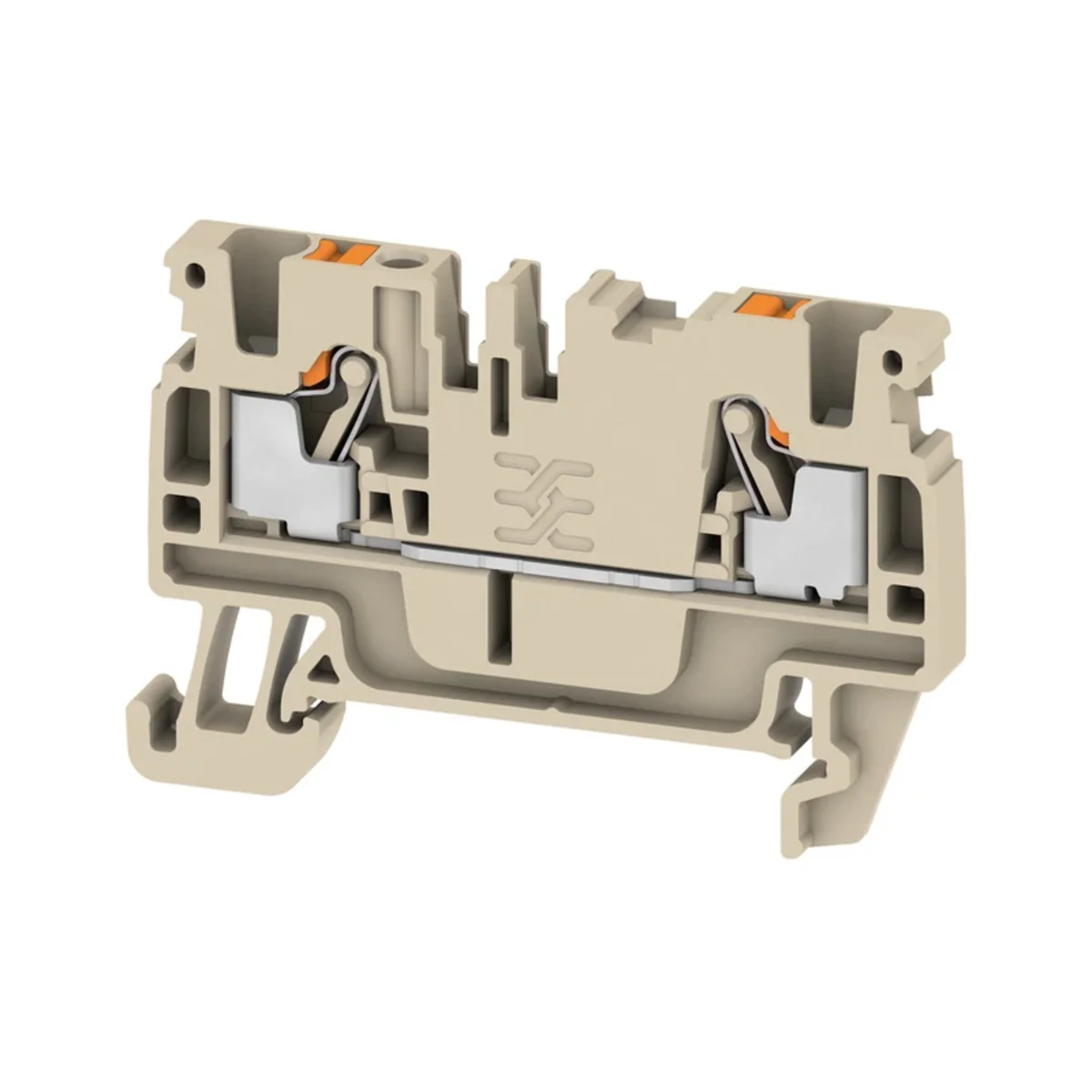

A2C 2.5 Through rail connector, catalog number 1521850000

Haga clic en la foto para ampliar

Fabricante: WEIDMULLER

Precio:

2,47 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante

Datos técnicos

Otros datos técnicos

Connectable conductor cross section fine-strand without cable end sleeve

4 ... 0.14 mm²
Connectable conductor cross section solid-core

0.14 ... 2.5 mm²
Rated current In

24 A
Type of electrical connection 1

Plug-in connection
Number of levels

1
Suitable for conductor material

Copper
Material insulation body

Thermoplastic
Width

5.1 mm
Depth

36.5 mm
Closing plate required

Yes
Internally connected stages

No

Connectable conductor cross section fine-strand with cable end sleeve

4 ... 0.14 mm²
Connectable conductor cross section multi-wired

4 ... 0.14 mm²
Rated voltage

800 V
Type of electrical connection 2

Plug-in connection
Number of clamp positions per level

2
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

130 ... -60 °C
Height

55 mm
Explosion-tested version 'Ex e'

Yes
Colour

Beige
