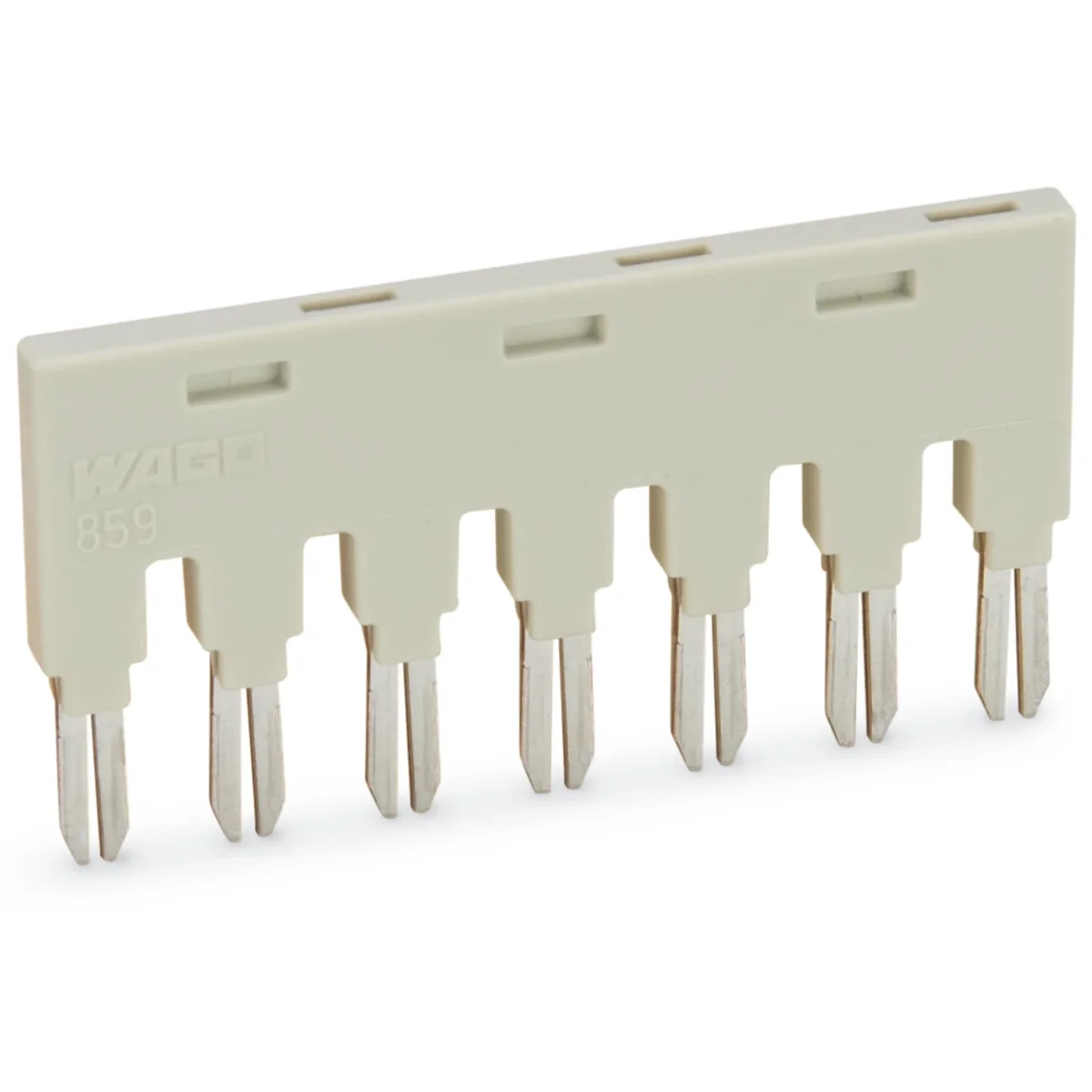

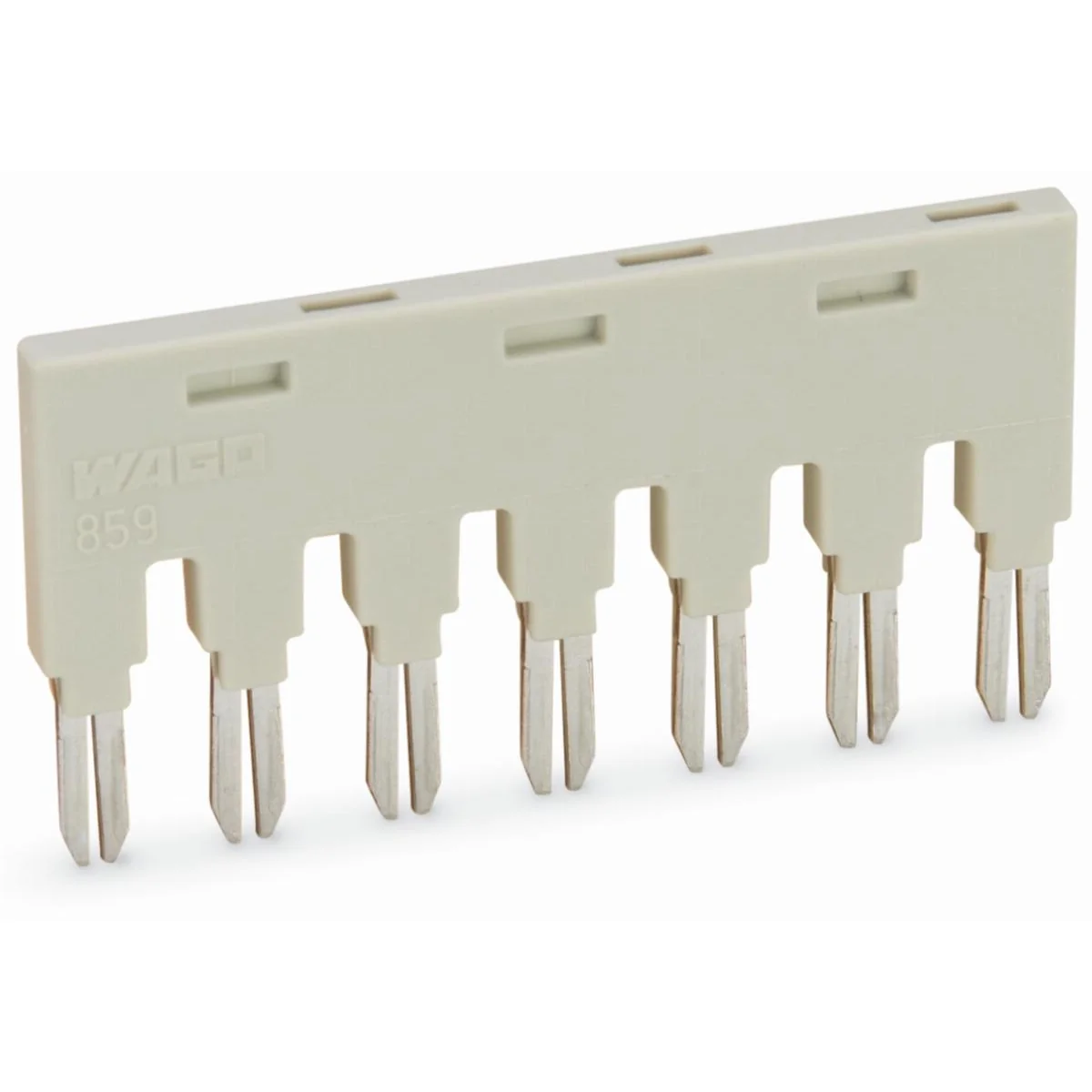

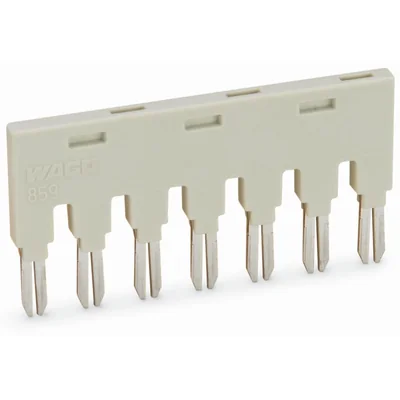

7-way jumper bar with light gray insulation 859-407

local index:
TEB466WAGO
Catalog No:
859-407
EAN code:
4066966274097
Manufacturer: WAGO ELWAG
Color: Gray
Number of bridged terminal blocks: 7
Rated voltage [V]: 800
Price:
0,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 5 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The bridging system is based on the plug-socket principle. Each connector has two bridging holes, equipped with an additional spring made of chromium-nickel steel. This solution allows to reduce the dimensions of bridges made of electrolytic copper to a minimum. At the same time, their load capacity is maintained at the level of the rated current of the connector. There is also the possibility of bridging PE connectors. Own variants of bridges are created by breaking individual contact pins (series 2000, 2001, 2002, 2004).

Technical data

  • Color
    Gray
  • Rated voltage [V]
    800
  • Family
    TopJobs
  • Width [mm]
    40
  • With insulation
    Yes
  • Number of bridged terminal blocks
    7
  • Rated current [A]
    18
  • Mounting method
    plug-in
  • Height [mm]
    21.5
  • Accurate color
    light gray

Other technical data

  • Type of accessory/spare part
    Jumper comb

Bulk packaging

A kind of package Torebka
Quantity 25 pcs.
Weight (kg) 0,100
