6-way threaded connector LZ-B10/6, white A12-0852
local index:
TES081POKO
Catalog No:
A12-0852
EAN code:
5907570305038
Price:
926,44 €
gross / pkg.
(including VAT 23%)
13,23 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

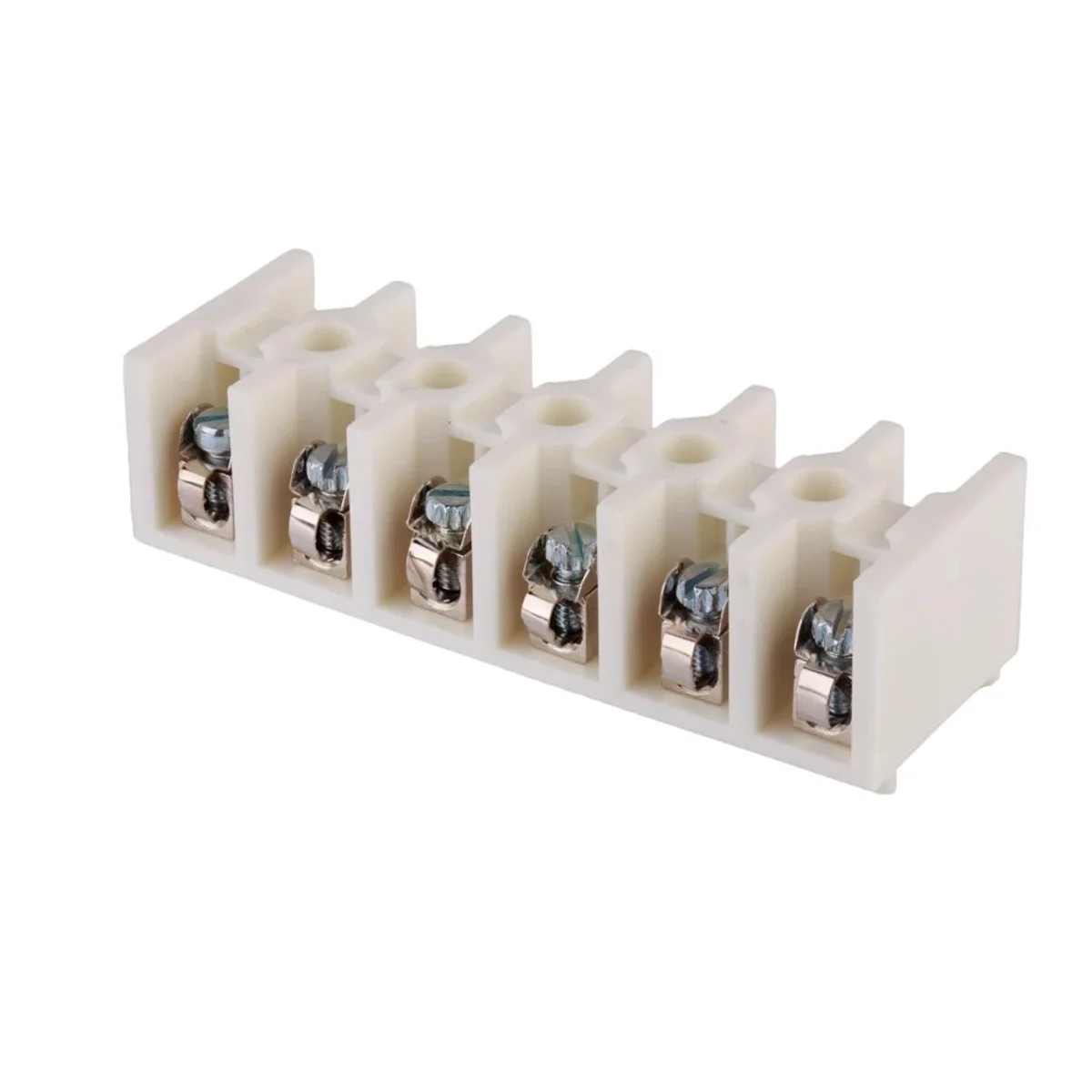

6-way threaded connector LZ-B10/6, white
Technical data
-
ColorWhite
-
Accurate colorWhite
-
Pieces in the package70
-
PKWIU27.12.40
Other technical data
-
Drill hole distance centrically15 mm
-
Connectable conductor cross section fine-strand without cable end sleeve0.75 ... 6 mm²
-
Connectable conductor cross section solid-core0.75 ... 10 mm²
-
Rated current In57 A
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per pole2
-
Material insulation bodyOther
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu25 mm
-
Closing plate requiredNo
-
TransparentNo
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0.75 ... 6 mm²
-
Connectable conductor cross section multi-wired0.75 ... 6 mm²
-
Rated voltage500 V
-
Type of electrical connection 2Screw connection
-
Number of poles6
-
Mounting methodDirect mounting
-
Operating temperature-25 ... 150 °C
-
Width/grid dimension30 mm
-
Length60 mm
-
ColourWhite
